INSTALLATION(CONT.)
3
- Only use speakers with 4 ohms impedance.
- Do not attach the control panel to the chassis before wiring is complete.
- The maximum current of the auto antenna is 200mA.
Wiring Connections
Uninstall the Main Unit
1. Remove the plastic trim out from the main unit.
2. Insert a bracket key into the left and right side of the main unit and draw the unit out of
the mounting sleeve.

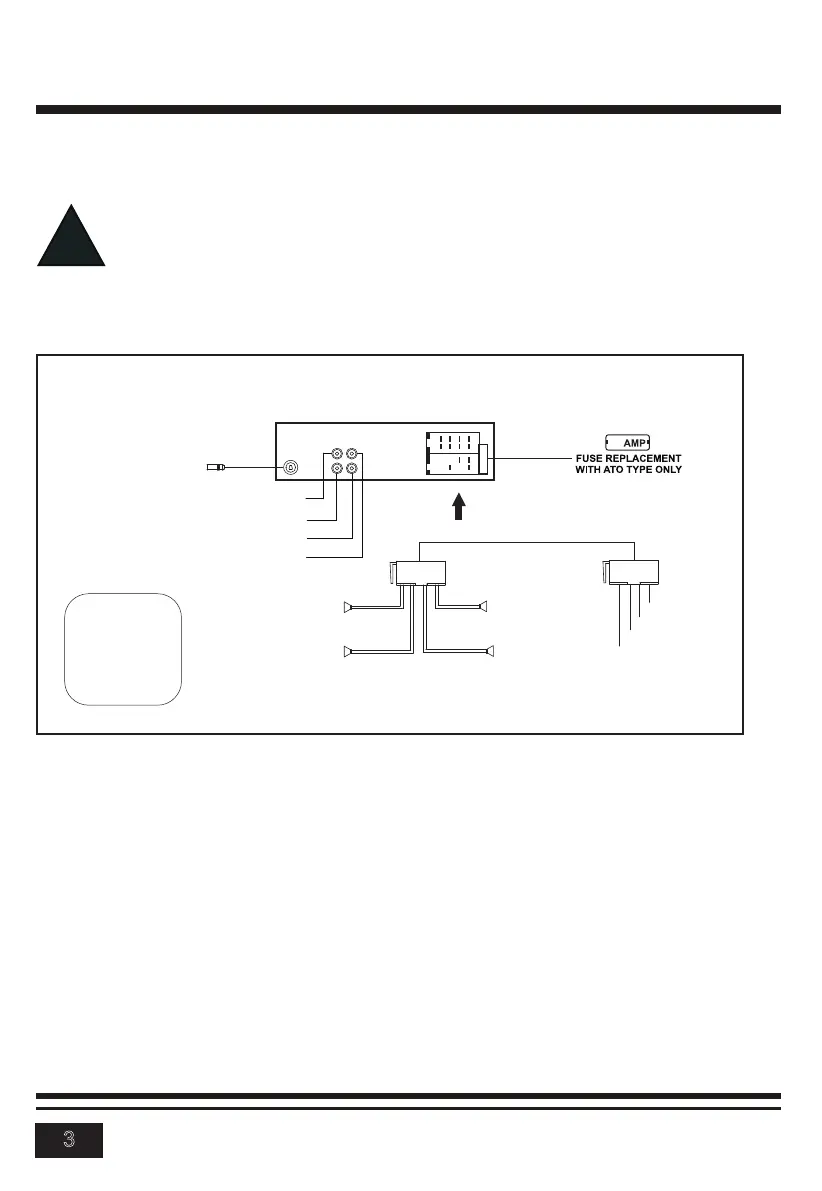

WIRING
DIAGRAM
CAUTION
+12V DC
NEGATIVE
GROUND
15
White:Front Left PRE-AMP Output
White: Rear Left PRE-AMP Output
Red: Front Right PRE-AMP Output
Red: Rear Right PRE-AMP Output
Radio Antenna
15A
Purple +
Rear Left Speaker
Front Left Speaker
White +
Green +
Green/Black -
White/Black -Gray/Black -
Gray +
Front Right Speaker
Purple/Black -
Rear Right Speaker
ACC + (Red)
GND - (Black)
ANT + (Blue)
Power B + (Yellow)
To Next Page
