Ssl SDC26B - Wiring Connections

3

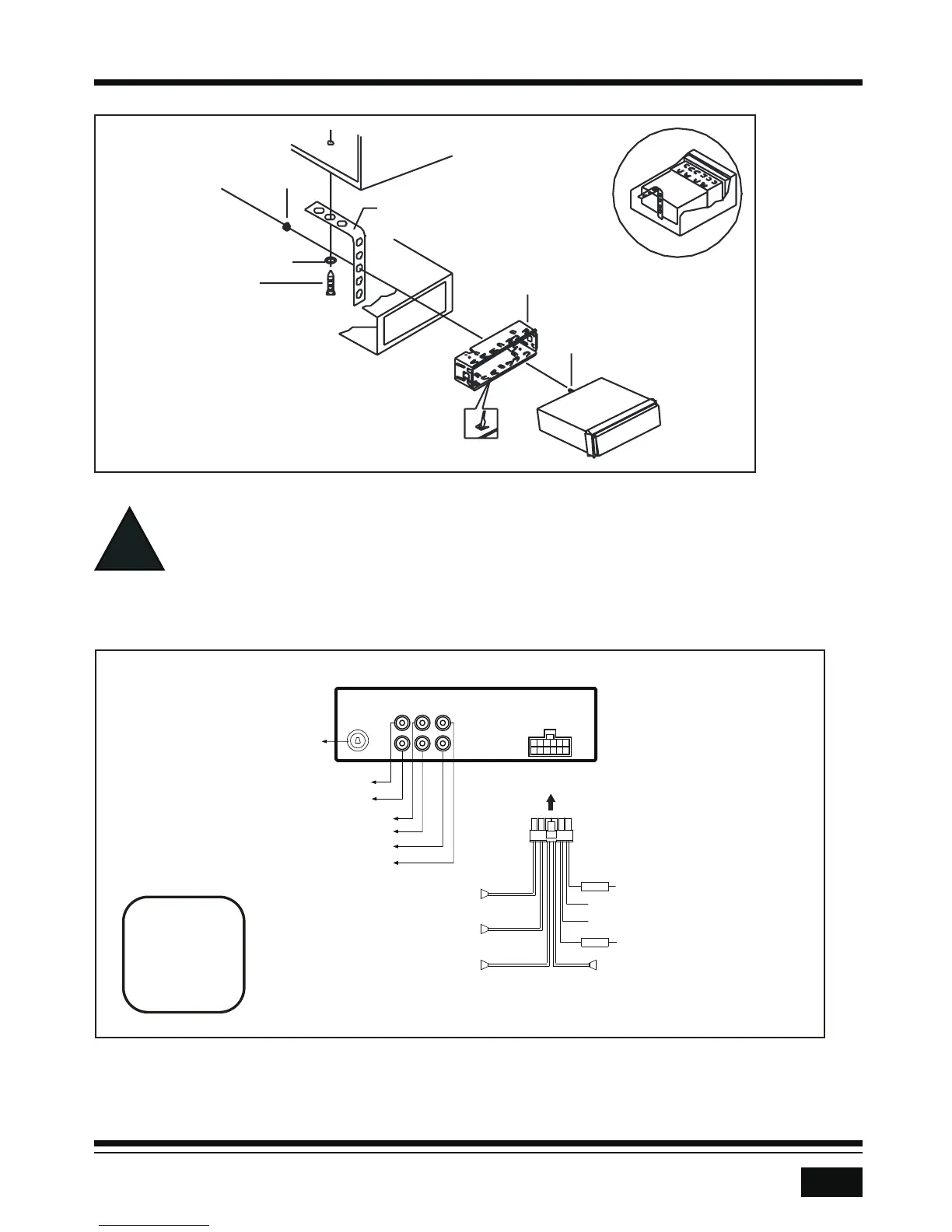

INSTALLATION (CONT.)
INSTALLATION
DIAGRAM
DASH BOARD
METAL MOUNTING STRAP
CONSOLE
MOUNTING SLEEVE
HEX BOLT
HEX NUT
PLAIN WASHER
TAPPING SCREW
- Only use speakers with 4 ohms impedance.
- Do not attach the control panel to the chassis before wiring is complete.
- The maximum current of the auto antenna is 200mA.
Wiring Connections
!
WIRING
DIAGRAM
CAUTION
+12V DC
NEGATIVE
GROUND
Radio Antenna Socket
White: Front Left CH RCA Outpu
AUX-Left input
AUX-Right input
t
Red: Front Right CH RCA Output
Red: Rear Right CH RCA Output
White: Rear Left CH RCA Output
Rear Right Speaker
Purple +
Purple/Black -
Gray +
Gray/Black -
Front Right Speaker
White +
White/Black -
Front Left Speaker
Rear Left Speaker
Green +
Green/Black -
Power B+ ( Yellow)
GND - (Black)
Fuse
15A
ANT + (Blue)
ACC + (Red)
Fuse
0.5A
