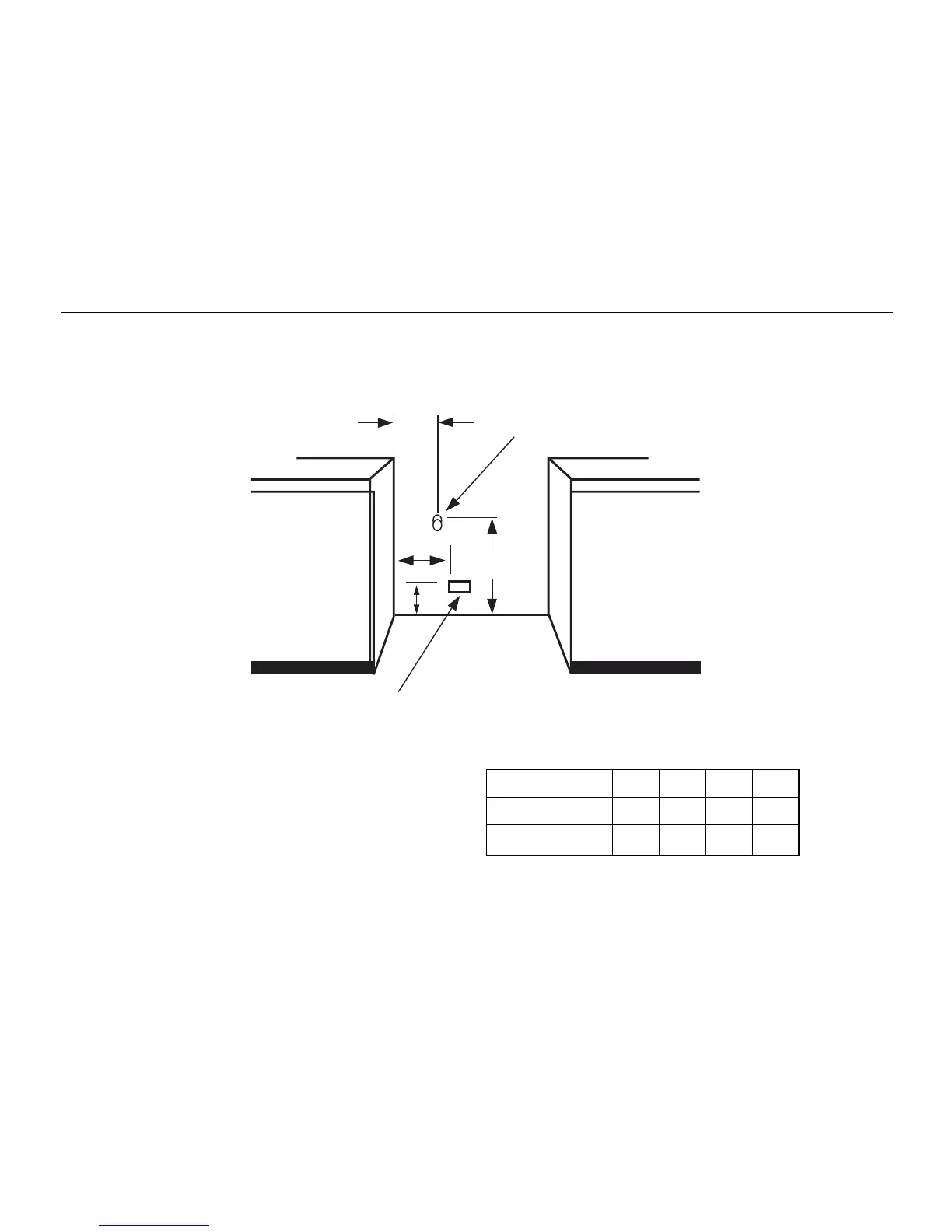

CABINET INSTALLATION INSTRUCTIONS
Gas and Electrical Connection
D
C
B
electrical connection
cable entry
A
gas connection
point
All dimensions are in Millimetres
MODEL A B C D
FED 820 550 220 60
FE90 650 430 450 60
