Hardware Overview (2/3)
4
SPSGRF-868 or
SPSGRF-915 (*)

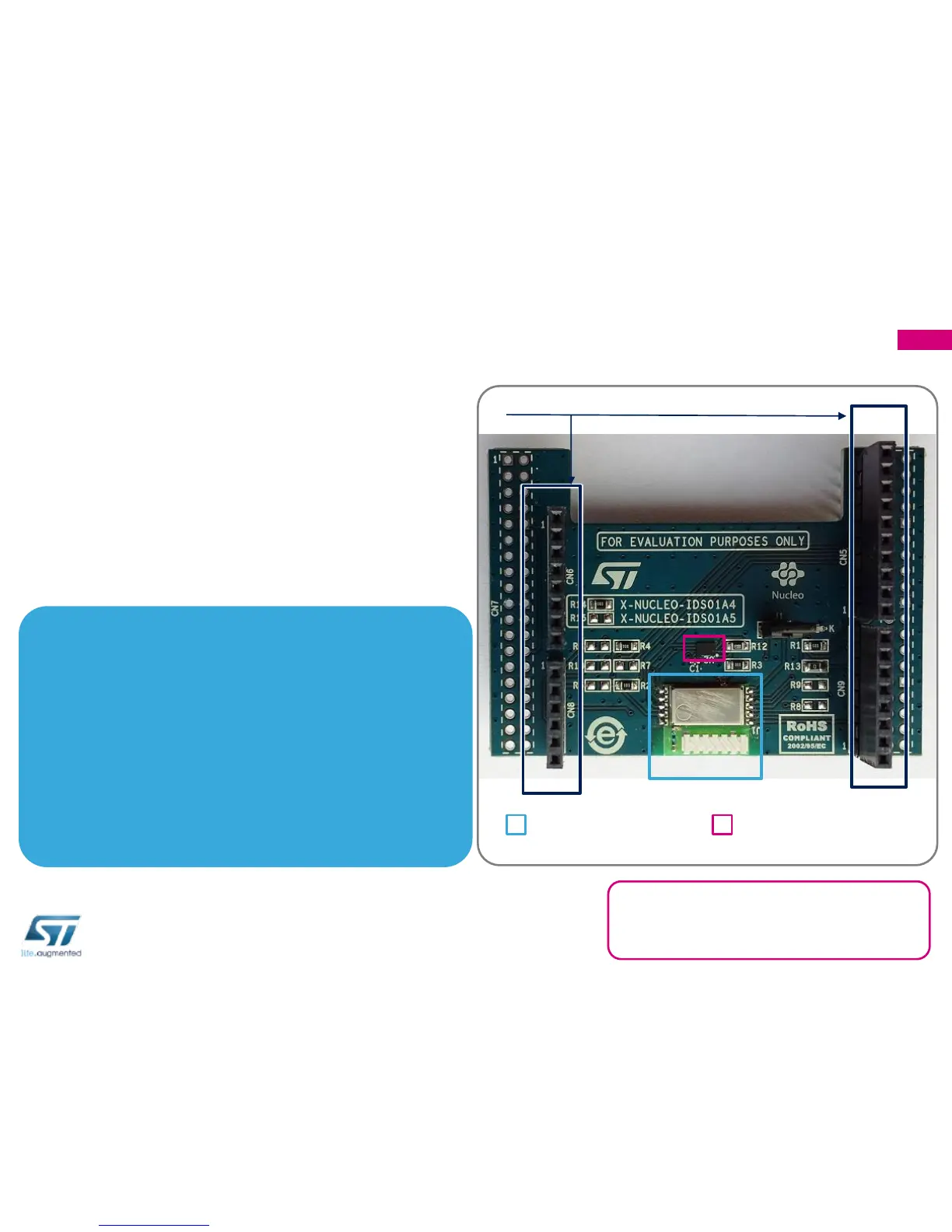

X-NUCLEO-IDS01A4/5 Hardware description
• The X-NUCLEO-IDS01A4, X-NUCLEO-IDS01A5
are evaluation boards based on the SPIRIT1 RF
modules SPSGRF-868 and SPSGRF-915
• The SPIRIT1 module communicates with the
STM32 Nucleo developer board host
microcontroller though an SPI link available on the
Arduino UNO R3 connector.
EEPROM
Arduino UNO R3 connector
Key products on board
SPSGRF
Sub-GHz (868 or 915 MHz) low power
programmable RF transceiver modules
SPIRIT1
Low data-rate, low-power sub-1GHz transceiver)
module
M95640-R
64 Kbit SPI bus EEPROM with high-speed clock
Latest info available at www.st.com
X-NUCLEO-IDS01A4
X-NUCLEO-IDS01A5
(*) Identification of the operating frequency of the X-NUCLEO-IDS01Ax (x=4 or 5)
is performed through two resistors (R14 and R15).
