Key Product on board
LSM6DS0: MEMS 3D accelerometer (±2/±4/±8 g) + 3D gyroscope
(±245/±500/±2000 dps)
LIS3MDL: MEMS 3D magnetometer (±4/ ±8/ ±12/ 16 gauss)
LPS25HB: MEMS pressure sensor, 260-1260 hPa absolute digital
output barometer
HTS221: capacitive digital relative humidity and temperature
DIL 24-pin: socket available for additional MEMS adapters and
other sensors
DIL 24-pin
Motion MEMS and environmental sensors expansion board
Hardware Overview (3/3)
5
X-NUCLEO-IKS01A1 Hardware Description

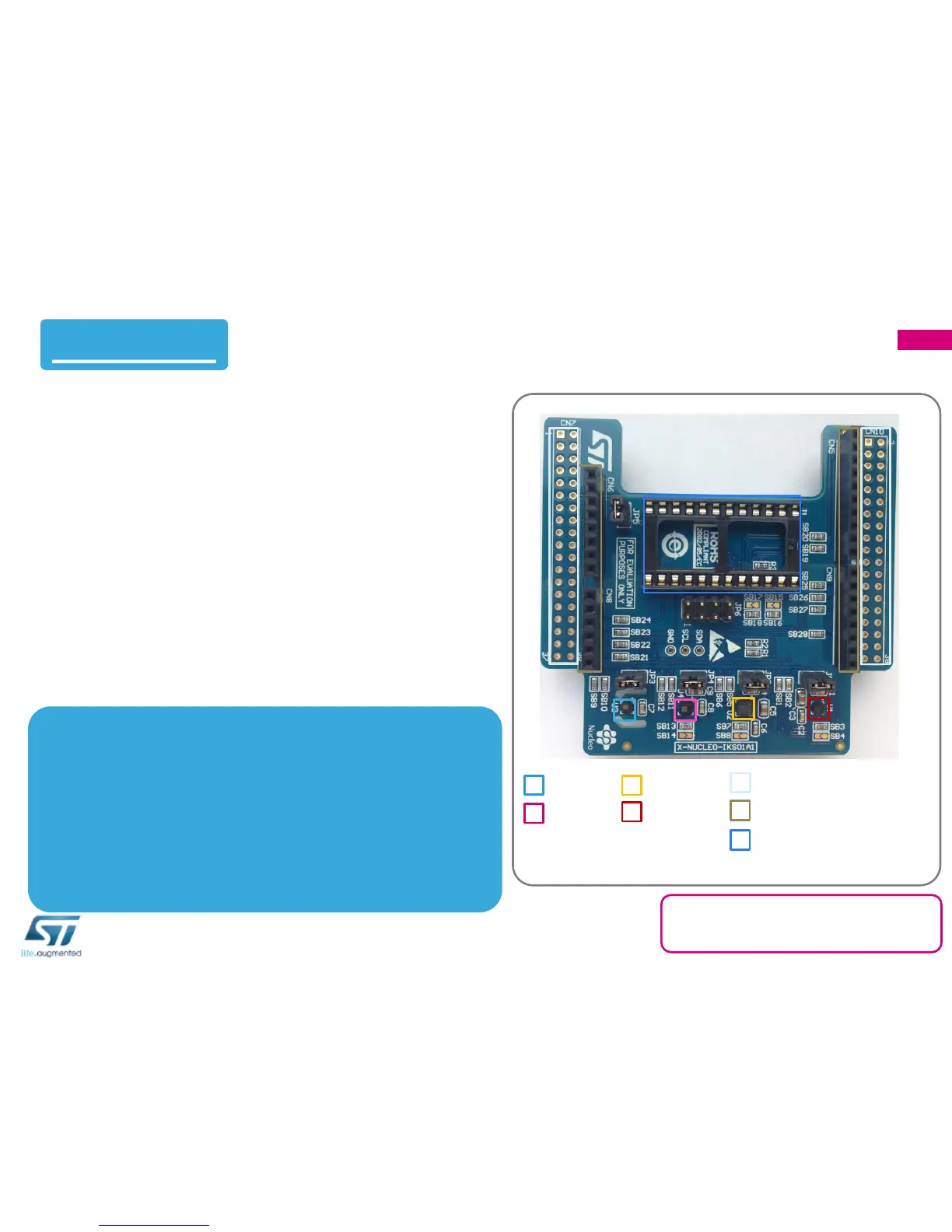

• The X-NUCLEO-IKS01A1 is a motion MEMS and environmental sensor
evaluation board system.
• It is compatible with the Arduino UNO R3 connector layout, and is
designed around ST’s latest sensors.
Arduino UNO R3 connector
ST morpho connector**
** Connector for the STM32 Nucleo Board
LSM6DS0
LIS3MDL
Latest info available at www.st.com
X-NUCLEO-IKS01A1
Key Features
• The X-NUCLEO-IKS01A1 is a motion MEMS and environmental sensor
evaluation board system.
• All sensor sensors are connected on a single I²C bus
• Sensor I²C address selection
• Each sensor has separate power supply lines allowing power
consumption measurement
• Sensor disconnection (disconnect the I²C bus as well as the power
supply)
• Interrupt and DRDY signals from sensors
• DIL24 socket (Compatible to STEVAL-MKI***V* MEMS adapter boards,
i.e. STEVAL-MKI160V1)
OPTIONAL
