ST STM32 Quick Start Guide

Setup Overview
Start coding in just a few minutes (2/3)
16

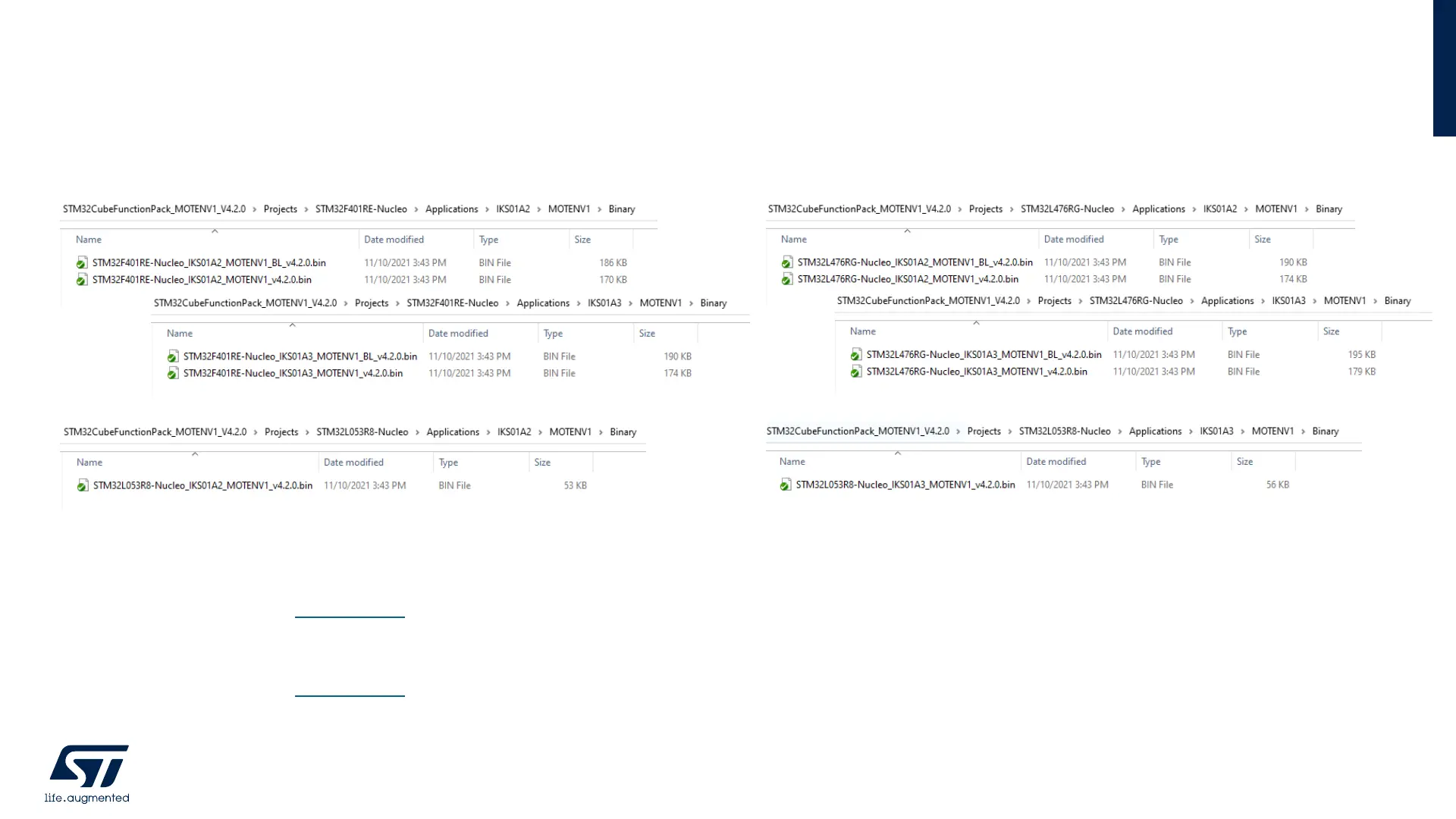

1. How to install the pre-compiled binary:
• For each applications, there is inside the package one folder called “Binary”
➢ For NUCLEO-F401RE and NUCLEO-L476RG:
• pre-compiled FP-SNS-MOTENV1 FW that could be flashed to a supported STM32 Nucleo (for X-NUCLEO-IKS01A2 and for X-NUCLEO-IKS01A3) using the ST-Link at
the right position (0x08004000)
o Important Note: this pre-compiled binary is compatible with the FOTA update procedure
• pre-compiled FP-SNS-MOTENV1 + BootLoader FW that could be directly flashed to a supported STM32 Nucleo (for X-NUCLEO-IKS01A2 and for X-NUCLEO-IKS01A3)
using the ST-Link or by doing “Drag & Drop”
o Important Note: this pre-compiled binary is not compatible with the FOTA update procedure
➢ For NUCLEO-L053R8:
• pre-compiled FP-SNS-MOTENV1 could be directly flashed to a supported STM32 Nucleo (for X-NUCLEO-IKS01A2 and for X-NUCLEO-IKS01A3) using the ST-Link or by
doing “Drag & Drop”.
