UM1690 Hardware layout

5.1.2 Using ST-LINK/V2 to program/debug an external STM32 application

It is very easy to use the ST-LINK/V2 to program the STM32 on an external application.

Simply remove the 2 jumpers from CN5 as shown in Figure 6, and connect the application

to the CN4 debug connector according to Table 5.

Note: SB10 must be OFF if CN4 pin 5 is used by the external application.

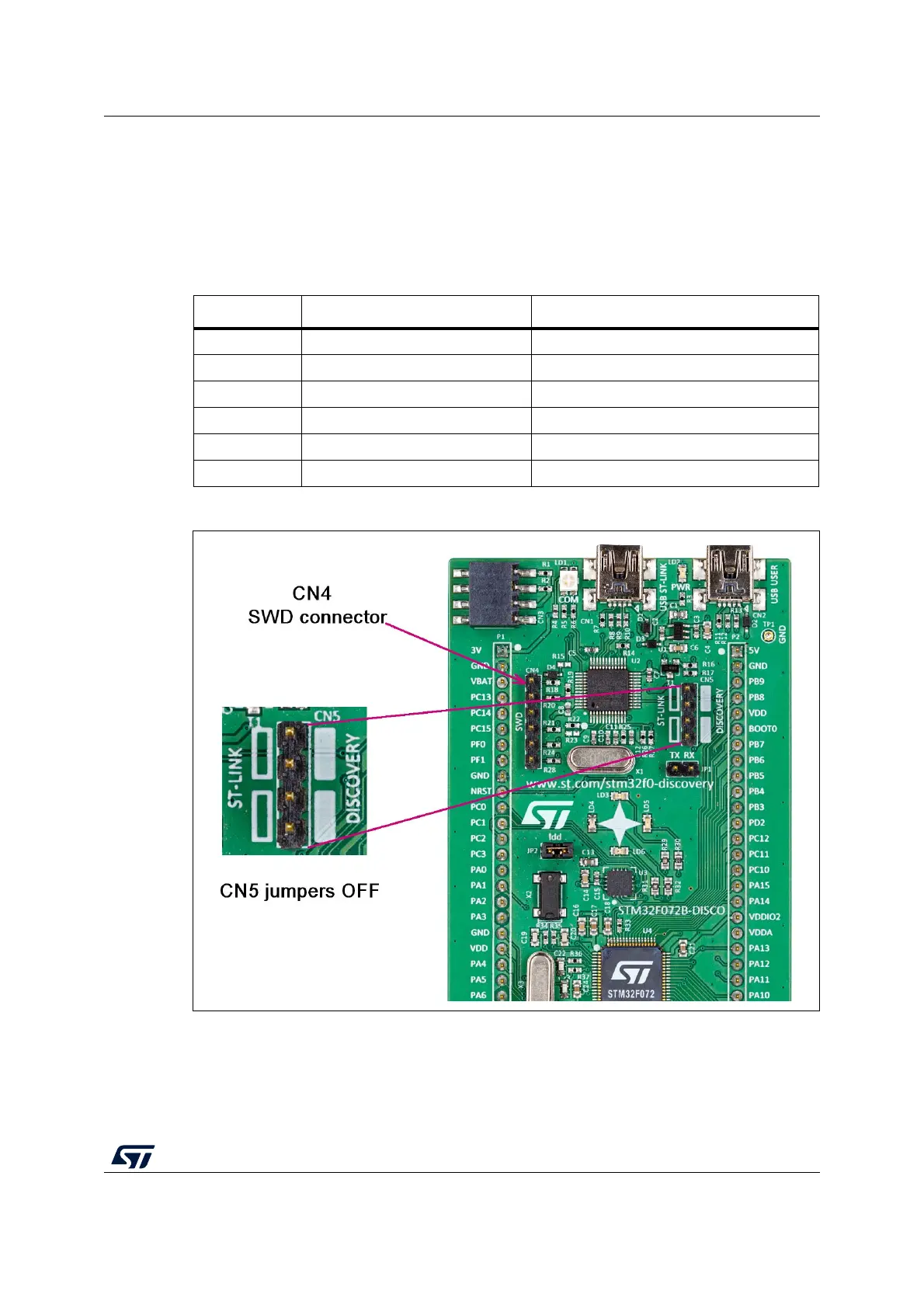

Figure 6. ST-LINK connections

Table 5. Debug connector CN4 (SWD)

Pin CN4 Designation

1 VDD_TARGET VDD from application

2 SWCLK SWD clock

3 GND Ground

4 SWDIO SWD data input/output

5 NRST Reset of the target MCU

6 SWO Reserved
