6.3.2 SWD port connection with standard SWD connector
The figure below shows the connection between the device and a standard SWD connector.

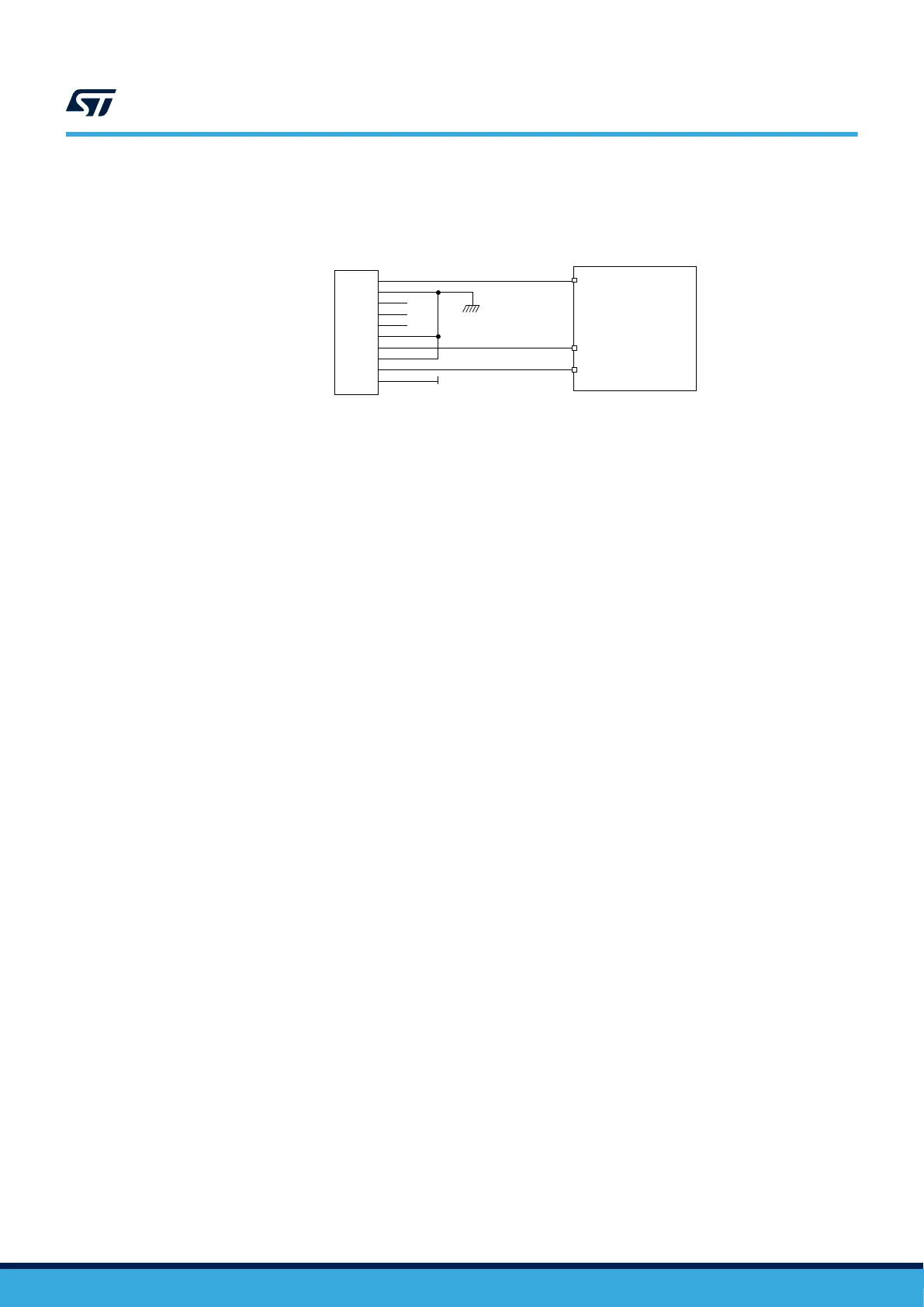

Figure 10. SWD connector implementation
CN1
NRST
SWCLK/PA14
SWDIO/PA13
SWD connector
V
DD
10
9
8
7
6
5
4
3
2
1
STM32U5 device
AN5373
Serial-wire debug (SWD) pin assignment
