2 VL53L1X system overview
The VL53L1X system is composed of a hardware module and an ultra lite software driver (VL53L1X_ULD)
running on a host (see figure below). The hardware module contains the ToF sensor.
ST delivers the software driver which is referred to in this document as "the driver".
This document describes the functions of the driver which are accessible to the host. These functions control the
sensor and get the ranging data.

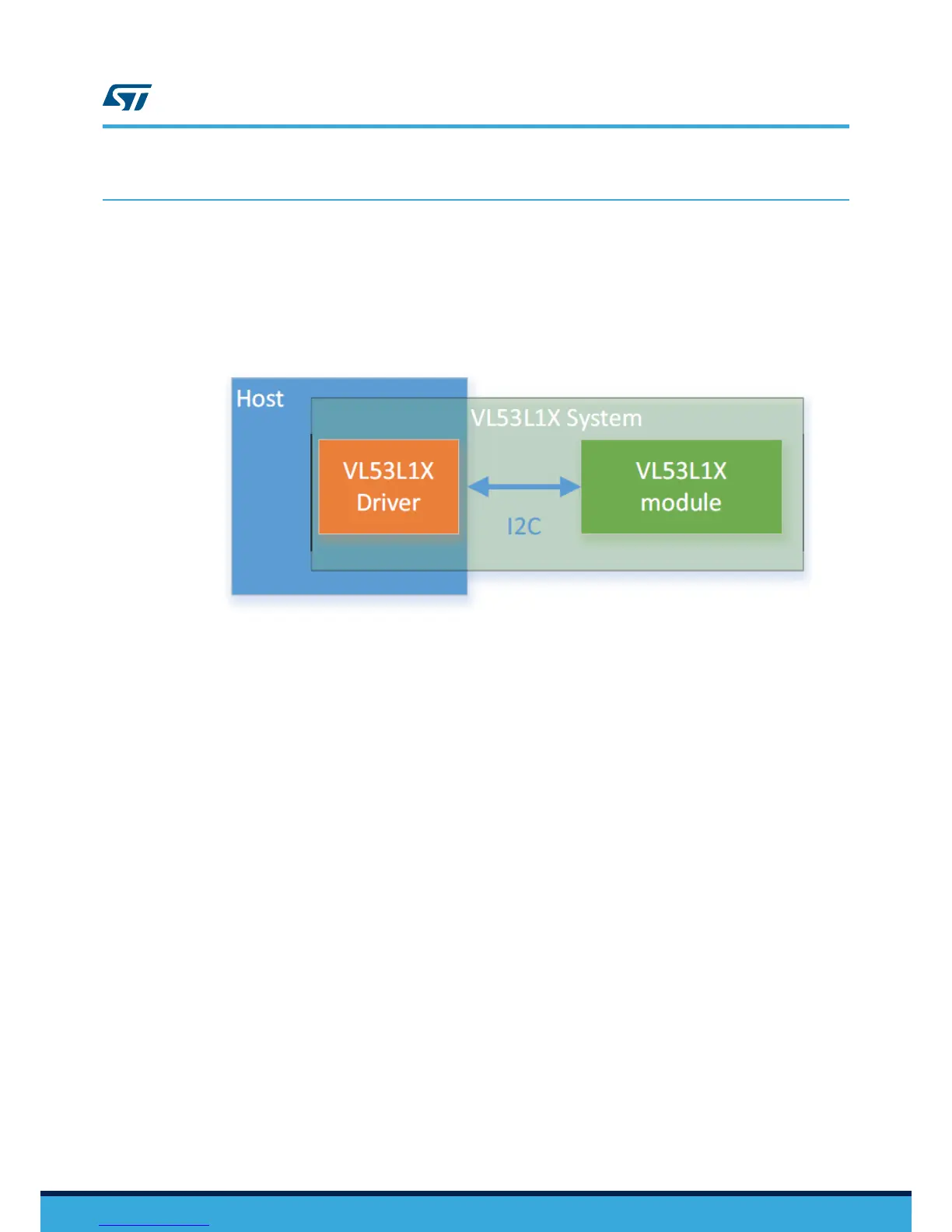

Figure 2. VL53L1X system overview
UM2510
VL53L1X system overview
UM2510 - Rev 1
page 3/26
