Emulating BlueNRG-2N device with X-NUCLEO-BNRG2A1 (1/3)
14
1
The X-CUBE-BLE2 software package can be used also with the BlueNRG-2N device
2
The BlueNRG-2 device on the X-NUCLEO-BNRG2A1 expansion board can be used to
emulate the BlueNRG-2N device
3
To flash the BlueNRG-2N firmware on the BlueNRG-2 device,
you need a standard ST-LINK/V2 debugger with 5 jumper wires
(female-female)
4

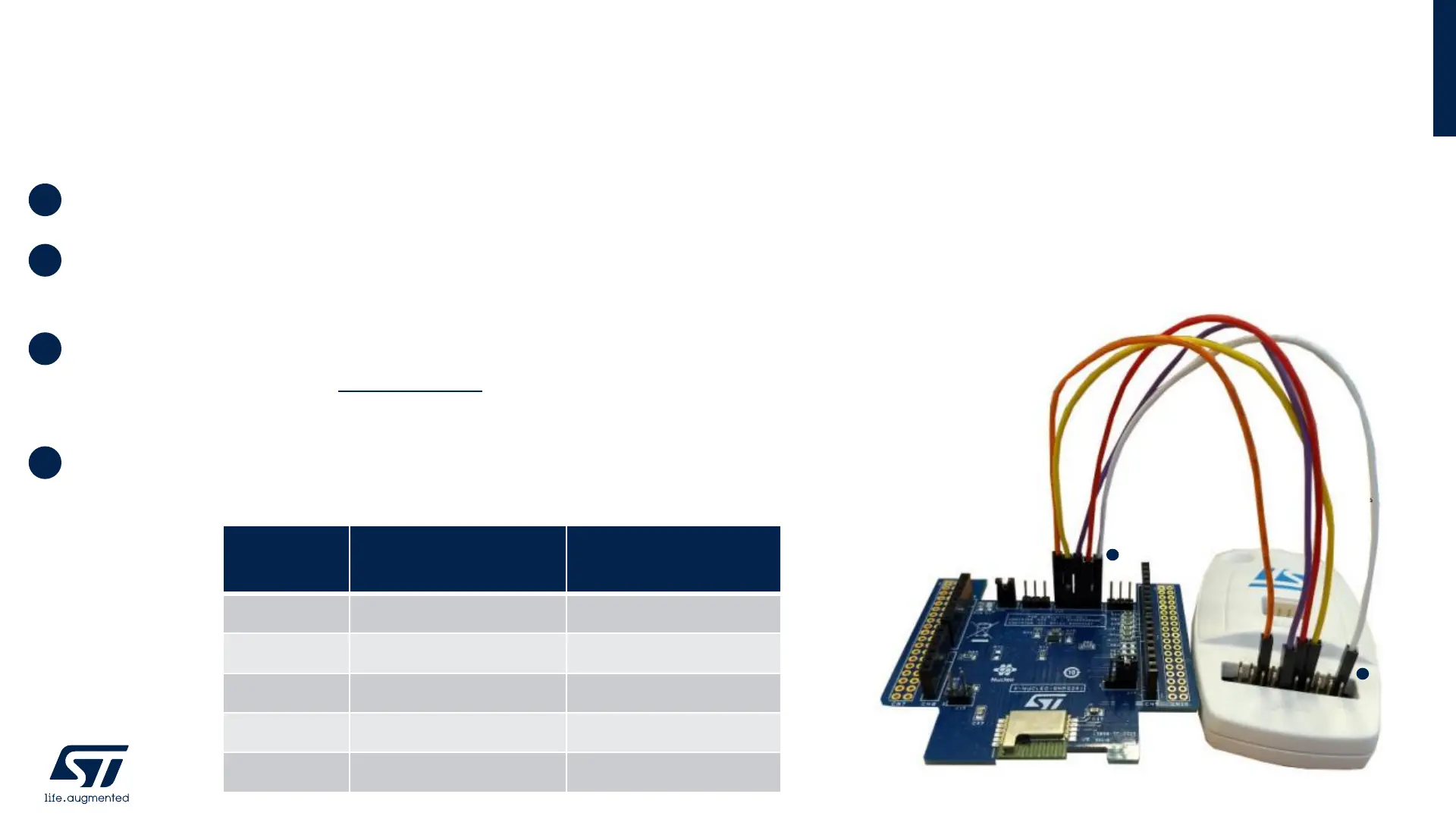

Connect the J12 pins on the X-NUCLEO-BNRG2A1 and the ST-
Link/V2 pins as shown in the table below
J12 pin no. ST-Link/V2 pin no.
VDD
1 1
SWTCK
2 9
GND
3 12
SWDIO
4 7
RST
5 15
