Bluetooth Low Energy expansion board
Hardware Overview
X-NUCLEO-BNRG2A1 Hardware Description
• The X-NUCLEO-BNRG2A1 is a Bluetooth Low Energy (BLE) evaluation and
development board system, designed around ST’s BLUENRG-M2SP Bluetooth
Low Energy module based on BlueNRG-2.
• The BlueNRG-2 processor hosted in the BLUENRG-M2SP module communicates
with the STM32 microcontroller, hosted on the Nucleo development board,
through an SPI link available on the Arduino UNO R3 connector.
Key Products on board
BLUENRG-M2SP
Bluetooth Low Energy, FCC and IC certified (FCC ID: S9NBNRGM2SP, IC:
B976C-BNRGM2SP), module based on Bluetooth® Low Energy wireless network
processor BlueNRG-2, BLE v5.0 compliant.
BLUENRG-M2SP integrates a BALF-NRG-02D3 balun and a PCB antenna. It
embeds 32 MHz crystal oscillator for the BlueNRG-2.
M95640-RMC6TG
64-Kbit serial SPI EEPROM with high-speed clock interface
Arduino UNO R3 connector

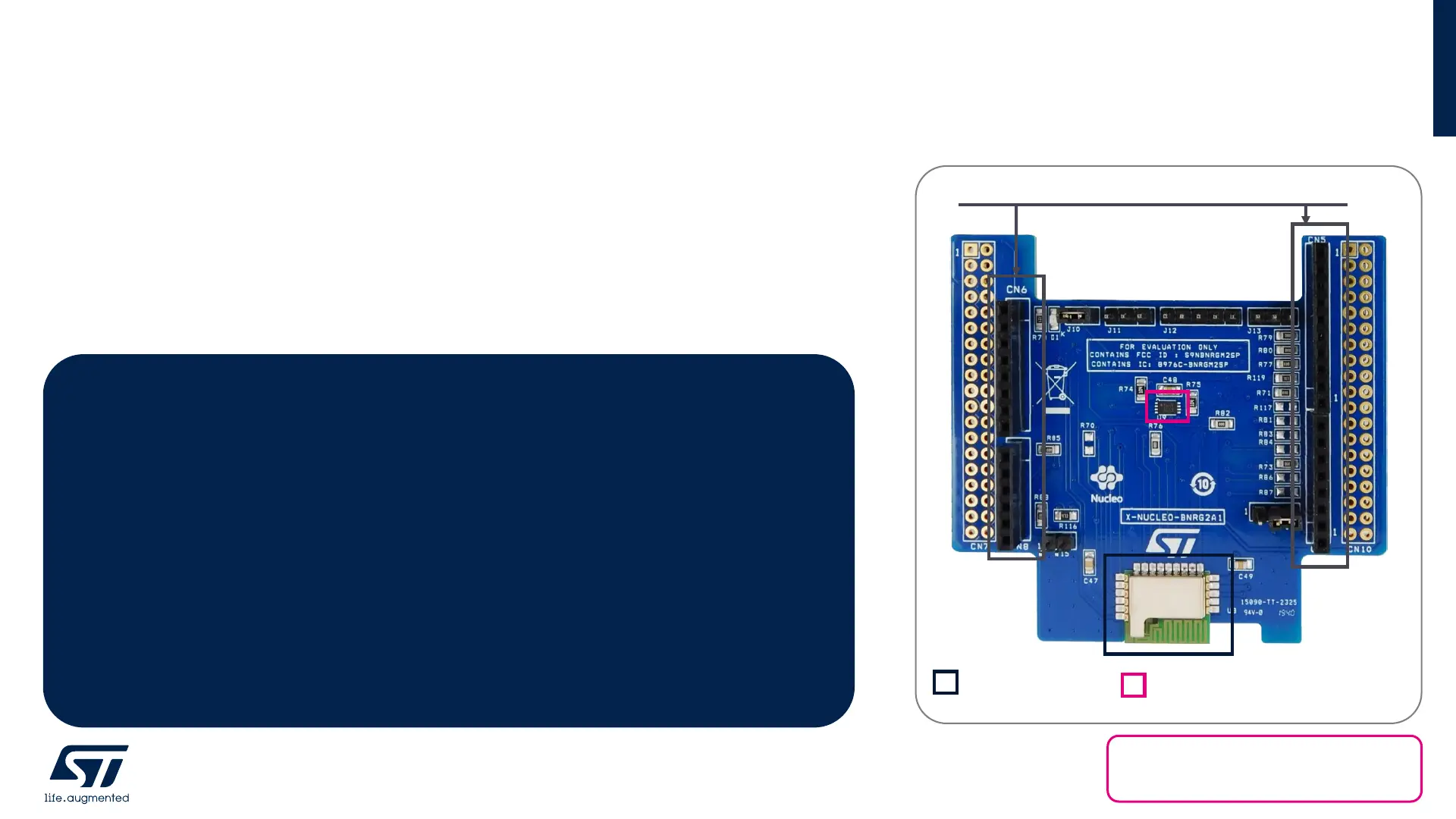

BLUENRG-M2SP
M95640-RMC6TG
Latest info available at www.st.com
X-NUCLEO-BNRG2A1
