Setup & Application Examples
HW limitation

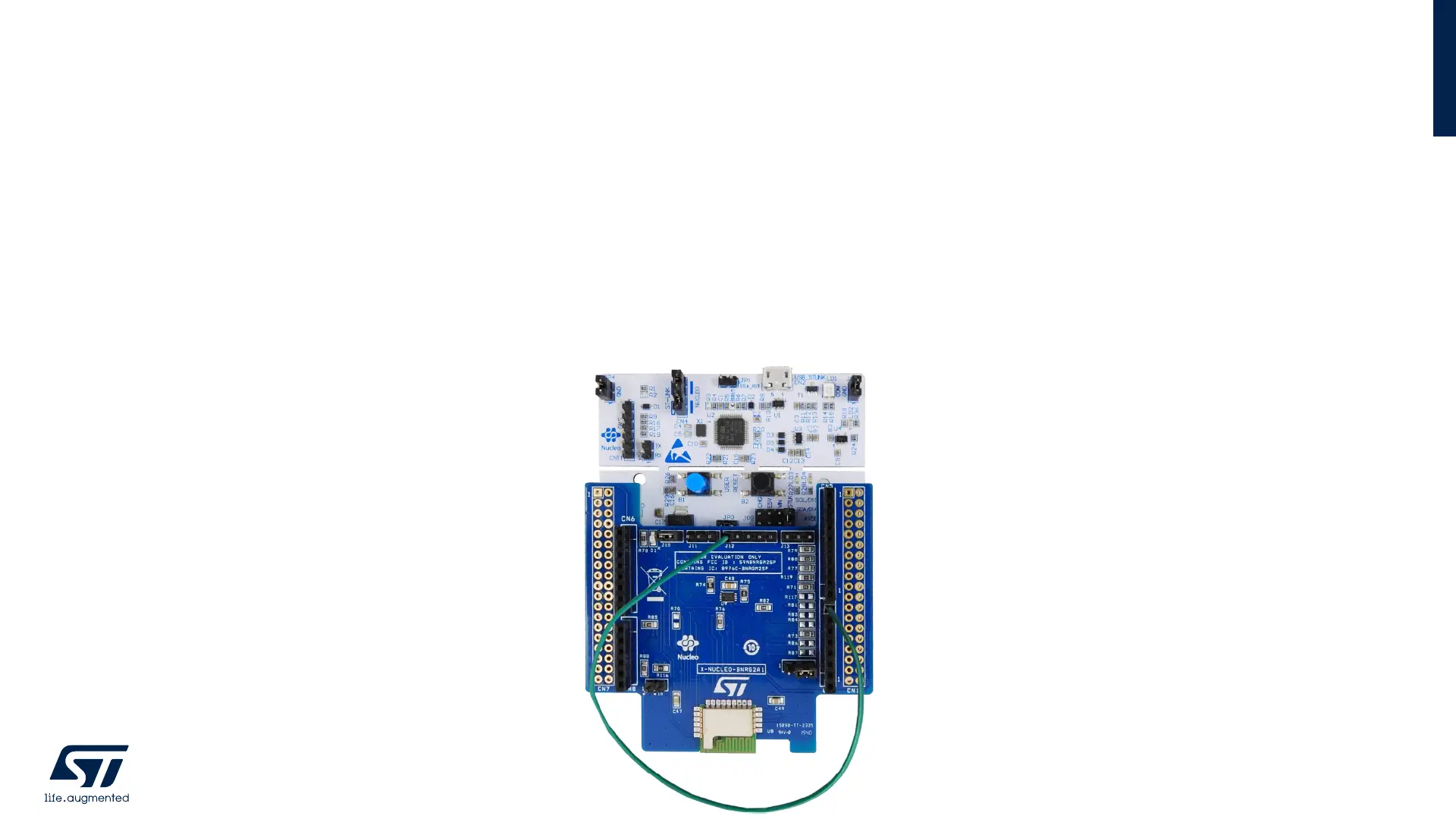

• Warning Even if not strictly required for the correct working of the BlueNRG-2 module, to correctly
set the BlueNRG-2 RESET pin on pin D7 of the Arduino connector a 0 Ohm resistor must be
soldiered on R117. Alternatively, the D7 pin and the pin #5 of the J12 on the X-NUCLEO-
BNRG2A1 expansion board must be bridged (as shown in the picture).
