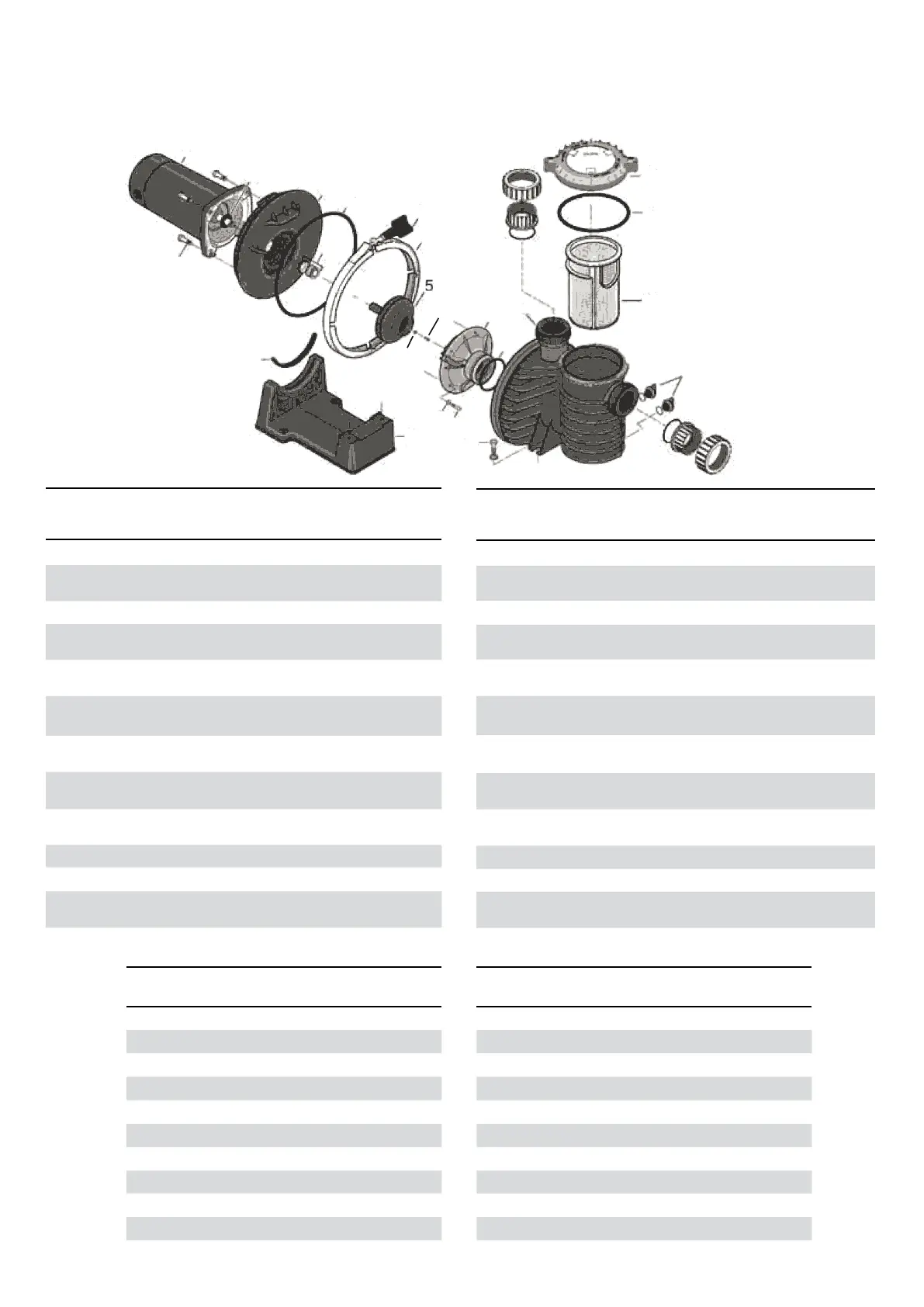

TECHNICAL DATA – TECHNISCHE DATEN - TECHNISCHE GEGEVENS
DONNÉES TECHNIQUES – DATOS TÉCNICOS – DATI TECNICI – Технические характеристики
(SW)5P6R
20
20
14
18
17
6
9
15
13
12
11
10
19
1
16
2
7
4
8b
8a
a
5c
5b
3
Model
No.
Motor
(1)
Impeller
(5a)
Model Motor
(1)
Impeller
(5a)
5P6RD-1 B0-55KW-1P4 C105-238PFM SW5P6RD-1 B0-55KW-1P4 C105-238PFS
5P6RD-3 B0-55KW-3P4 C105-238PFAM SW5P6RD-3 B0-55KW-3P4 C105-238PFAS
5P6RE-1 B0-75KW-1P4 C105-238PGM SW5P6RE-1 B0-75KW-1P4 C105-238PGS
5P6RE-3 B0-75KW-3P4 C105-238PGAM SW5P6RE-3 B0-75KW-3P4 C105-238PGAS
5P6RF-1 B1-10KW-1P4 C105-238PECAM SW5P6RF-1 B1-10KW-1P4 C105-238PECAS
5P6RF-3 B1-10KW-3P4 C105-238PECAM SW5P6RF-3 B1-10KW-3P4 C105-238PECAS
5P6RG-1 B1-50KW-1P4 C105-238PLBAM SW5P6RG-1 B1-50KW-1P4 C105-238PLBAS
5P6RG-3 B1-50KW-3P4 C105-238PLBAM SW5P6RG-3 B1-50KW-3P4 C105-238PLBAS
5P6RH-1 B2-20KW-1P4 C105-238PHAM SW5P6RH-1 B2-20KW-1P4 C105-238PHAS
5P6RH-3 B2-20KW-3P4 C105-238PHAM SW5P6RH-3 B2-20KW-3P4 C105-238PHAS
No. Qty.
Ref. 5P6R / SW5P6R Description
1
1 see table below Motor IP55
2
1 C103-194PG /
C103-193PSSG
Seal Plate
3
1 P-39006000 O-Ring
4
1 37400-0027S / U9-358SW Mechanical Seal
5a
1 see table below Impeller
5b
1 37337-6080 Impeller screw ONLY for
3-phase
5c
1 35505-1426 Impeller screw O-ring
ONLY for 3-phase
6
1 C1 - 271P / C1 - 271PSS Diffuser
7
1 U9-374 O-Ring Diffuser
8a
1 C19-37A Clamp
8b
1 WC36-22 Clamp Knob
9
1 17307-0110W Pump Body Assembly
(incl. 10, 11,12 and 13)
10
1 17307-0111S Trap Cover
No. Qty.
Ref. 5P6R / SW5P6R Description
11
1 35505-1440 O-Ring Cover
12
1 C8-58P Trap Basket
13
2 U178-920P Drain plug with o-ring
14
1 C4-78P Pump base 0.55kW
14
1 C4-79P Pump base 0,75kW ->
2,20kW
15
2 U30-918SS Screw
16
1 C35-43 Motor Base Support 0.55kW
16
1 C35-25D Motor Base Support 0.75kW
- 1,10kW
16
1 C35-44 Motor Base Support 1,50kW
- 2,20kW
17
5 U30-922SS Screw
18
5 U43-21SS Lockwasher
19
4 U30-74SS Capscrew
20
1 PKG 188W Union Set 2” (63mm)
