TECHNICAL DATA – TECHNISCHE DATEN - TECHNISCHE GEGEVENS
DONNÉES TECHNIQUES – DATOS TÉCNICOS – DATI TECNICI – Технические характеристики

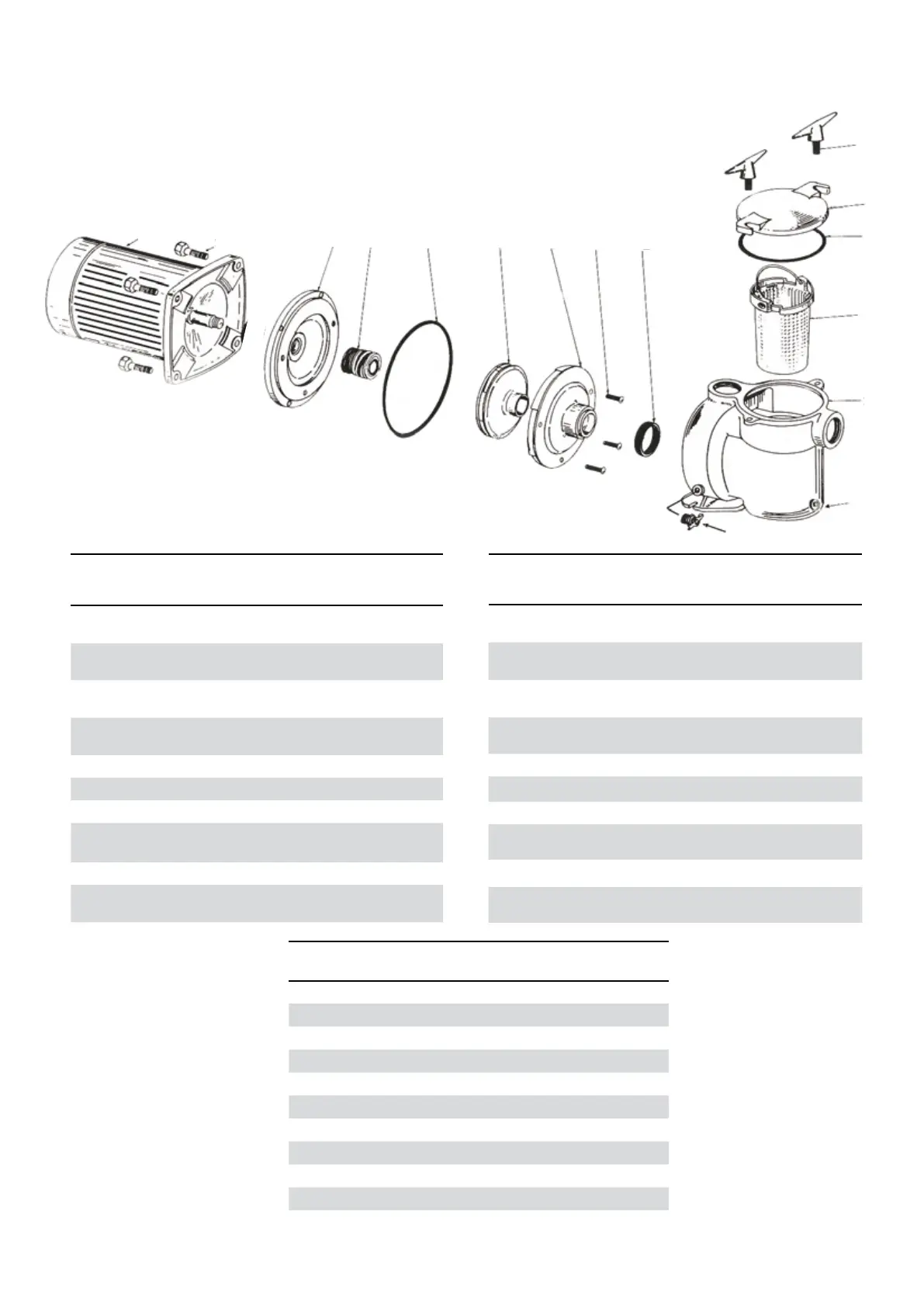

No. Ref. 5BR Description
1 1 See Table below Motor IP55
2 4 P-07-0430 Screw
3 1 C3-121D Seal Plate 0,25kW -
0,37kW
3 1 C3-122D Seal Plate 0,55kW -
1,10kW
4 1 U109-93SS Mechanical Seal
5 1 U9-169 O-Ring
6a 1 See Table below Impeller
6b 1 C30-12 Impeller screw ONLY for
3-phase
7 1 See Table below Diffuser
8a 3 U30-542SS Screw ONLY for 0,55kW
- 1,10kW
Model
No.
Motor
(1)
Impeller
(6a)
Diffusor
(7)
5BRB-1 B0-37KW-1P2 C105-117PBD L1-25P21
5BRB-3 B0-37KW-3P2 C105-117PBD L1-25P21
5BRC-1 B0-37KW-1P2 C105-117PD L1-25P21
5BRC-3 B0-37KW-3P2 C105-117PDA L1-25P21
5BRD-1 B0-55KW-1P4 C105-138PD C1-200P
5BRD-3 B0-55KW-3P4 C105-138PDA C1-200P
5BRE-1 B0-75KW-1P4 C105-137PBB C1-200P
5BRE-3 B0-75KW-3P4 C105-137PBBA C1-200P
5BRF-1 B1-10KW-1P4 C105-137P C1-200P
5BRF-3 B1-10KW-3P4 C105-137PA C1-200P
No. Ref. 5BR Description
8b 3 U43-21SS Washer ONLY for 0,55kW
- 1,10kW
9 1 L21-1 Ring Diffuser 0,25kW -
0,37kW
9 1 C21-10 Ring Diffuser 0,55kW -
1,10kW
10 2 C154-18D Screw Trap Cover
11 1 C3-140DC Trap Cover
12 1 U9-161 O-Ring Trap Cover
13 1 C108-33P Basket
14 1 C76-45DWB Pump Body
15 1 U212-68T Drain Plug
16 1 U78-57DT Drain Plug Suction Side
