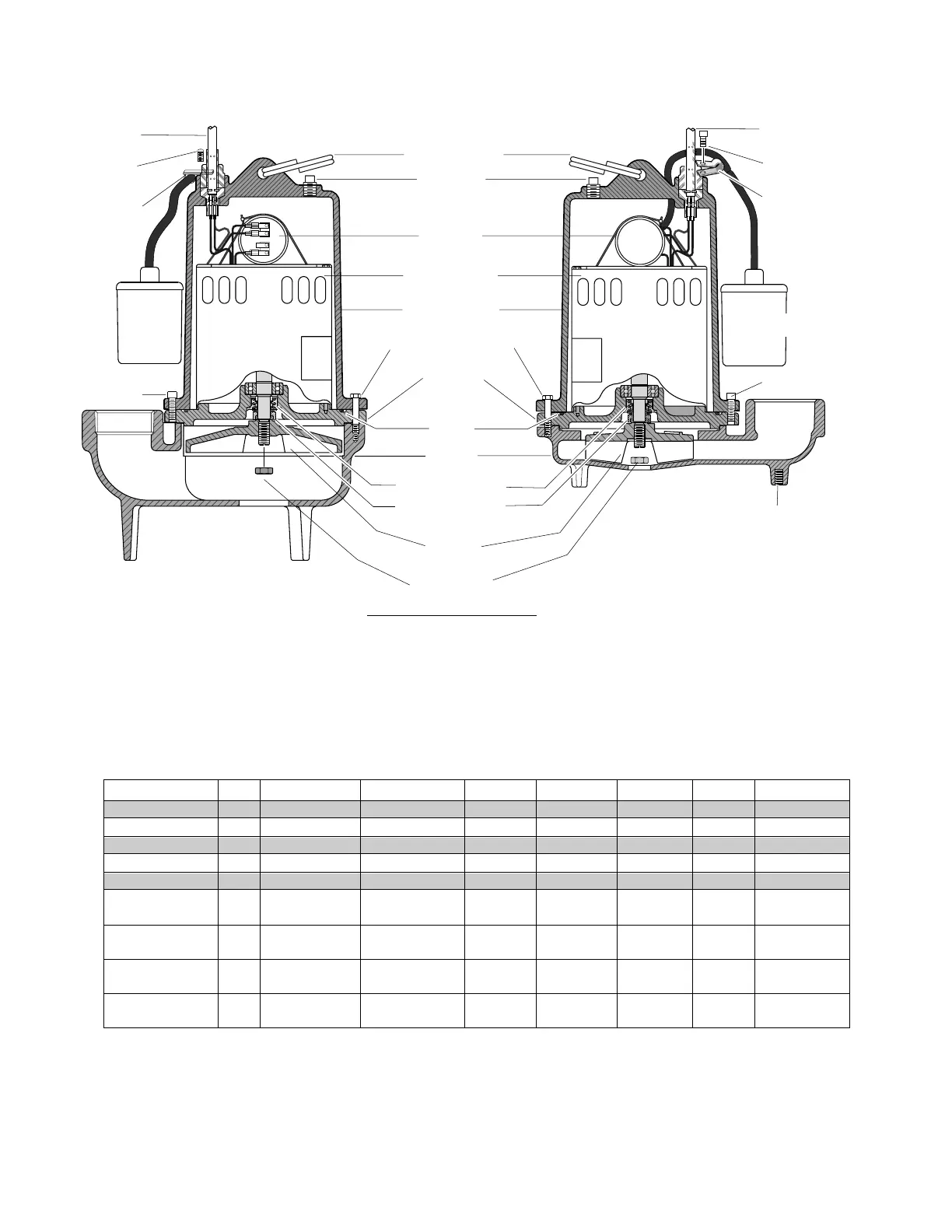

STA-RITE 700E Series - Repair Parts - 700 Series; PWS7;PWC7 Pump Diagram; PWE7;PWEH7 Pump Diagram; 700 Series Parts List

5
1306 1094
Rope Handle Ring
U97-102SS
Oil Fill Plug
U78-57DV
Volute
See Chart
Impeller
See Chart
Motor Assembly
See Chart
Capacitor
See Chart
Motor Cover
PW18-54C
1/4" Hex Capscrew (4)
U30-883SS
Seal Plate
PW18-53A
7/16" Hex Nut
U36-33SS
Motor Through Bolts (4) U30-941
Dielectric Oil U197-8A (All Models use 2.6 Qts.)
Not Shown
O-Ring
U9-365
1/4-20 Soc Hd. Screw
U30-53SS
1/4-20 Soc Hd. Screw
U30-53SS
PWS7/PWC7 PWE7/PWEH7
Power Cord
See Chart
Power Cord
See Chart
Auto Float Switch
See Chart
Bosses tapped
1/2" NPT
(700HT only)
Seal Stationary Seat
U9-439A
Seal Rotating Seat
U9-439B
Capscrew,
U30-539SS**
Float Switch
Cord Clamp,
CC0030-13**
Auto Float Switch
See Chart
Capscrew,
U30-539SS**
Float Switch
Cord Clamp,
CC0030-13**
** Included with Model Numbers ending in "A".
REPAIR PARTS – 700 SERIES
REPAIR PARTS – 700 SERIES
Model H.P. Volts/Phase Full Load Amps Capacitor* Motor Ass’y Volute Impeller Power Cord
700E
PWE7E14-02 1 380/3 3.7 – PW118-155 PW1-8E PW5-9F PW17-235
700EH
PWEH7E14-02 1 380/3 3.8 – PW118-155 PW1-8 PW5-9G PW17-235
700C/700S
PWS7C01W2-04 1/2 115/1 11.2 U18-1567 PW218-67 PW1-3AW PW5-3 PW17-231
PWS7C01W2-04S 1/2 115/1 11.2 U18-1567 PW218-67 PW1-3AW PW5-3 PW17-231
PWS7C02W2-04 1/2 230/1 5.5 U18-1568 PW218-68 PW1-3AW PW5-3 PW17-232
PWS7C02W2-04S 1/2 230/1 5.5 U18-1568 PW218-68 PW1-3AW PW5-3 PW17-232
PWS7D01W2-04 3/4 115/1 12.0 U18-1567 PW218-136 PW1-3AW PW5-4 PW17-231
PWS7D01W2-04S 3/4 115/1 12.0 U18-1567 PW218-136 PW1-3AW PW5-4 PW17-231
PWS7D02W2-04 3/4 230/1 6.7 U18-1568 PW218-71 PW1-3AW PW5-4 PW17-232
PWS7D02W2-04S 3/4 230/1 6.7 U18-1568 PW218-71 PW1-3AW PW5-4 PW17-232
* Single phase only.
** Models with “A” suffix only.
*** Control panel required, Part No. PW217-280.
