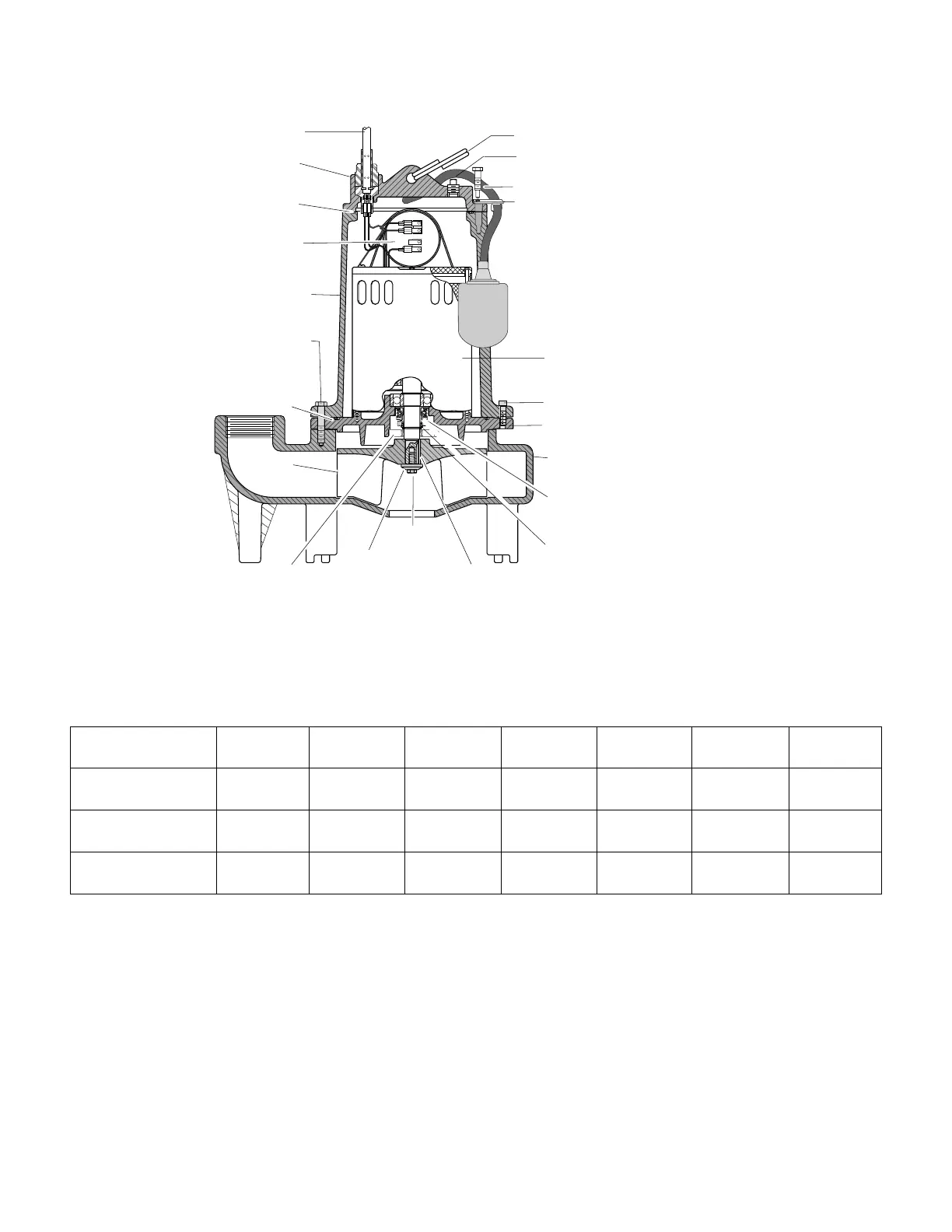

STA-RITE 700E Series - Repair Parts - 900 Series; 900 Series Pump Diagram; 900 Series Parts List

7
Volts/ Full Load Motor Cord
Model H.P. Phase Amps Assembly Impeller Assembly Capacitor
PWS9E02W2-05S 1 230/1 8.5 PW118-81 PW5-7B PW17-232 U18-1477
PWS9E14-06 1 380/3 5.2 PW118-153 PW5-7B PW17-235 –
PWS9F02W2-05S 1-1/2 230/1 12 PW118-83 PW5-7A PW17-232 U18-1567
PWS9F14-06 1-1/2 380/3 6.2 PW118-153 PW5-7A PW17-235 –
PWS9G02W2-05S 2 230/1 13 PW118-83 PW5-7 PW17-232 U18-1566
PWS9G14-06 2 380/3 6.4 PW118-153 PW5-7 PW17-235 –
Rope Handle Ring
U97-102SS
Power Cord
Assembly
See Chart
Oil Fill Plug
U78-57DV
Capacitor
(1 Ph. Only)
SeeChart
Capacitor
Cover
PW3-16A
Motor Cover
PW3-32A
Impeller
See Chart
Seal Plate
O-Ring
U9-351
Capacitor
Cover O-Ring
U9-339
Motor Assembly
See Chart
Seal Plate
PW3-34
Shaft Seal
U9-394SS
Woodruff Key
U65-2SS
1/4-20 Hex
Capscrew
U30-52SS
5/16-18 Hex
Capscrew
U30-65SS
1/4 Flat
Washer
PW43-4SS
Retaining Washer PW43-5SS
Retaining Ring U9-353SS
Volute*
PW1-5 (2" NPT) /PW1-5W (2" BSP )
1/4-20 Socket Hd. Screw
U30-53SS
1307B 0497
Lip Seal
U9-417
5/16" Hex Capscrew (4) U30-62SS
Float Switch Cord Clamp, U19-77SS
Dielectric Oil (3) U197-8A
Note: All Models use 2.6 QTs.
*Model Numbers with the -05S suffix use volute P/N PW1-5W.
Model numbers with the -06 suffix use use volute P/N PW1-5
REPAIR PARTS – 900 SERIES
