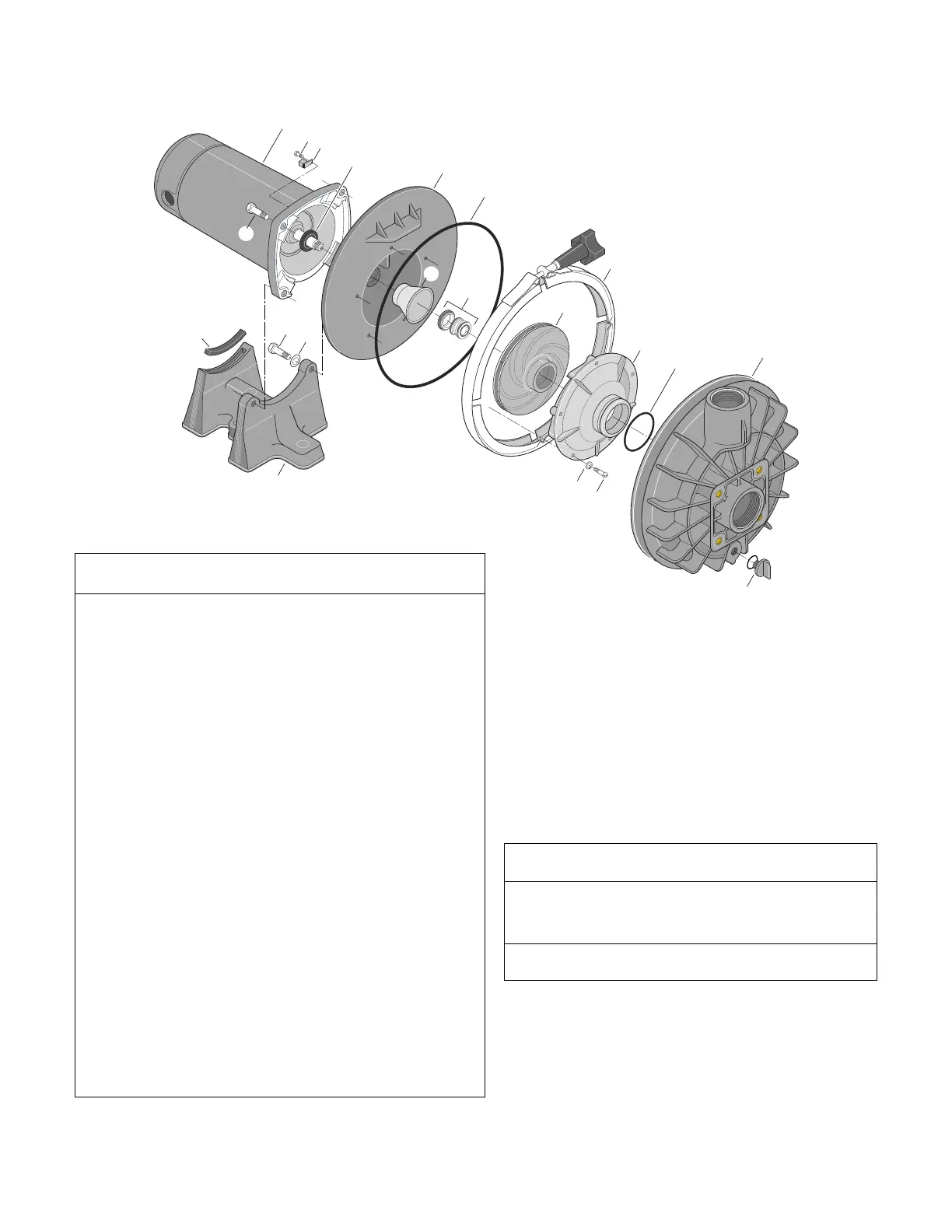

STA-RITE MAX-E-GLAS PE Series - Repair Parts List (2 HP); Component Identification for 2 HP; 2 HP Model-Specific Parts

13
Motor No. Impeller
Model No. HP (Key No. 1) (Key No. 10)
230 Volt
PE5G-122L 2 AE100GHL C105-137PDA
PE6G-122L 2 AE100GHL C105-137PDA
200 Volt
PE52G-122 2 AE100GH2 C105-137PDA
Parts are common to all models listed except as noted;
Key Nos. 1, Motor; and 10, Impeller are listed below.
Key Part Part
No. Description Qty. No.
1 Motor 1 Chart at Right
2 Screw, #10-32x1/2” 1 U30-692SS
3 Bonding Lug 1 U17-568
4 Water Slinger 1 C69-2
5 Seal Plate 1 C203-137P1
6 O-Ring 1 U9-228A
7 Insert 1 J3-2
8 Shaft Seal 1 U109-93SS
9 Clamp 1 C19-37A
• Clamp Knob 1 WC36-22
10 Impeller 1 Chart at Right
• Impeller Screw 1 C30-12
11 Diffuser 1 C1-200PA
12 Screw, #8-32x7/8” 5 U30-542SS
13 Washer, #8 Lock 5 U43-21SS
14 Diffuser O-Ring 1 U9-226
15 Tank Body 1 C176-47P1
16 1/4” NPT Drain Plug 1 U178-920P
17 Base w/Motor Pad 1 C104-42P
18 Motor Pad 1 C35-11
19 Washer, Flat 2 U43-42SS
20 Screw, 3/8-16x1-3/4” Hex Hd. 2 U30-77SS
21 Screw, 3/8-16x1” Hex Hd. 2 U30-74SS
• Reducer 2”x1-1/2” 1 C78-7P
• Decal “Suitable for outdoor use...” U27-635
• Decal “IMPORTANT-Do not use pipe
dope...” WC27-27
• Voltage Sticker - 230 Volts U27-68
• Tag, “CAUTION” 61002-0002
• Tag, “CAUTION, WARNING
(bonding)” C63-12
• Nameplate U33-121
• Not illustrated.
PE5 and PE52 model include 5” trap, Pkg. 115.
PE6 models include 6” trap, Pkg. 161.
PEX models do not include trap.
For trap parts, see Page 15.
For Parts-Pak parts, See Page 15.
1
2
3
4
19
20
8
5
6
9
10
11
14
15
16
12
13
17
18
7
21
1831 0695
REPAIR PARTS LIST
PE SERIES
MAX-E-GLAS POOL PUMP
2 HP Models
