Motor No. Impeller
Model No. HP (Key No. 1) (Key No. 10)
115/230 Volt
PE5C-120L 1/2 AE100CHL C105-92PS
PE6C-120L 1/2 AE100CHL C105-92PS
PE5D-124L 3/4 AE100DHL C105-138PEB
PE6D-124L 3/4 AE100DHL C105-138PEB
PE5E-125L 1 AE100EHL C105-137PEB
PE6E-125L 1 AE100EHL C105-137PEB
230 Volt
PE5F-126L* 1-1/2 AE100FHL C105-137PDBA
PE6F-126L* 1-1/2 AE100FHL C105-137PDBA
100/200 Volt
PE52C-120L 1/2 AE100CH2 C105-92PS
PE52D-124L 3/4 AE100DH2 C105-138PEB
PE52E-125L 1 AE100EH2 C105-137PEB
PE52F-126L* 1-1/2 AE100FH2 C105-137-PDBA
Parts are common to all models listed except as noted;
Key Nos. 1, Motor; and 10, Impeller are listed below.

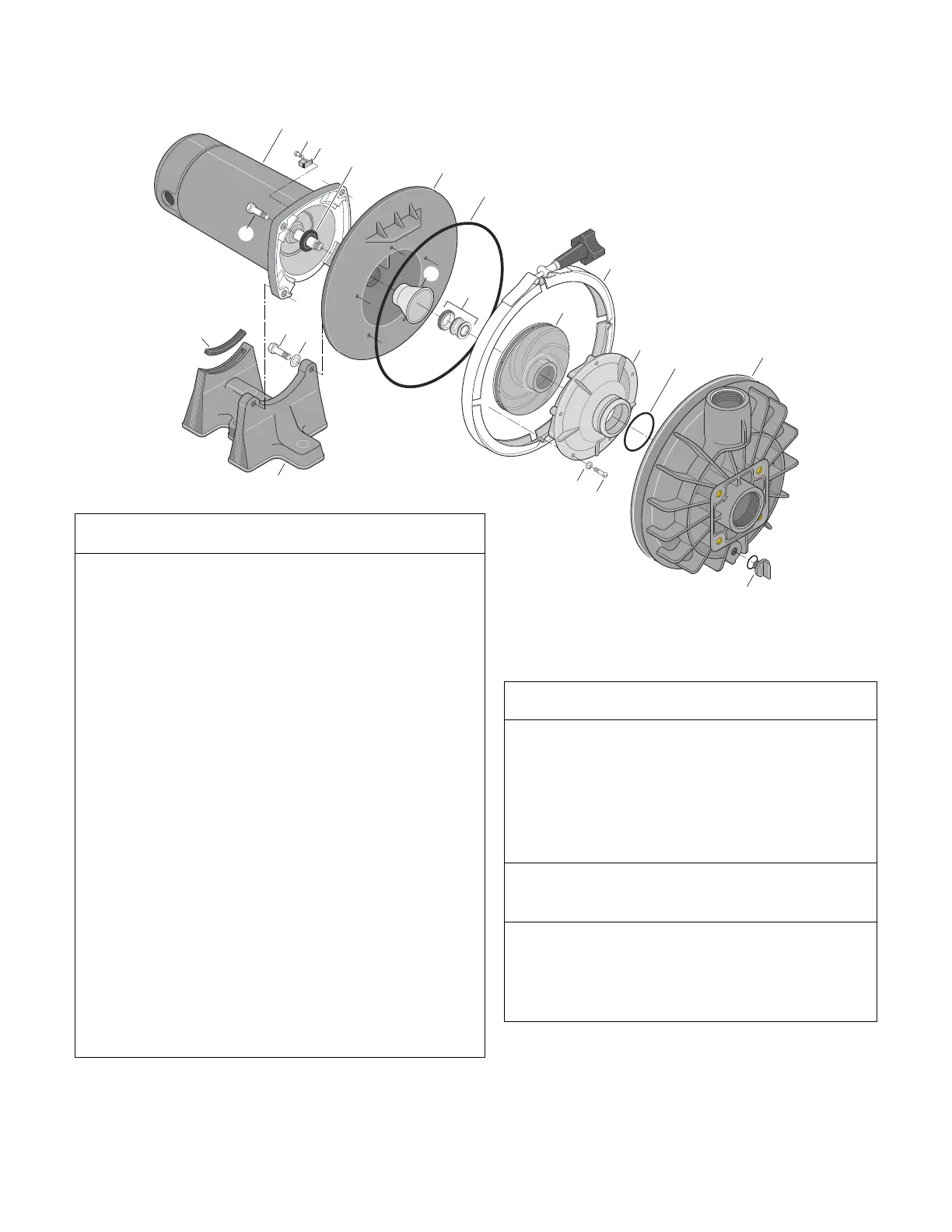

Key Part Part
No. Description Qty. No.
1 Motor 1 Chart at Right
2 Screw, #10-32x1/2” 1 U30-692SS
3 Bonding Lug 1 U17-568
4 Water Slinger 1 C69-2
5 Seal Plate 1 C203-137P1
6 O-Ring 1 U9-228A
7 Insert 1 J3-2
8 Shaft Seal 1 U109-93SS
9 Clamp 1 C19-37A
• Clamp Knob 1 WC36-22
10 Impeller 1 Chart at Right
11 Diffuser* 1 C1-200PA
12 Screw, #8-32x7/8” 5 U30-542SS
13 Washer, #8 Lock 5 U43-21SS
14 Diffuser O-Ring 1 U9-226
15 Tank Body 1 C176-47P1
16 1/4” NPT Drain Plug 1 U178-920P
17 Base w/Motor Pad 1 C104-42P
18 Motor Pad 1 C35-11
19 Washer, Flat 2 U43-42SS
20 Screw, 3/8-16x1-3/4” Hex Hd. 2 U30-77SS
21 Screw, 3/8-16x1” Hex Hd. 2 U30-74SS
• Reducer 2”x1-1/2” 1 C78-7P
• Decal “Suitable for outdoor use...” U27-635
• Decal “IMPORTANT-Do not use pipe
dope...” WC27-27
• Voltage Sticker - 230 Volts U27-68
• Voltage Sticker - 115/230 Volts U27-153
• Tag, “CAUTION” 61002-0002
• Tag, “CAUTION, WARNING
(bonding)” C63-12
• Nameplate U33-121
• Not illustrated.
* Model PE5C-120L, PE6C-120L, and PE52C-120 use
Part No. C1-216P.
For Parts-Pak parts, see Page 15.
* Uses Impeller Screw Part No. C30-12.
PE5 and PE52 model include 5” trap, Pkg. 115.
PE6 models include 6” trap, Pkg. 161.
PEX models do not include trap.
For trap parts, see Page 15.
