SECTION FOUR – Routine Maintenance and Professional Servicing
LL
LL
oo
oo
cc
cc
aa
aa
tt
tt
ii
ii
oo
oo
nn
nn

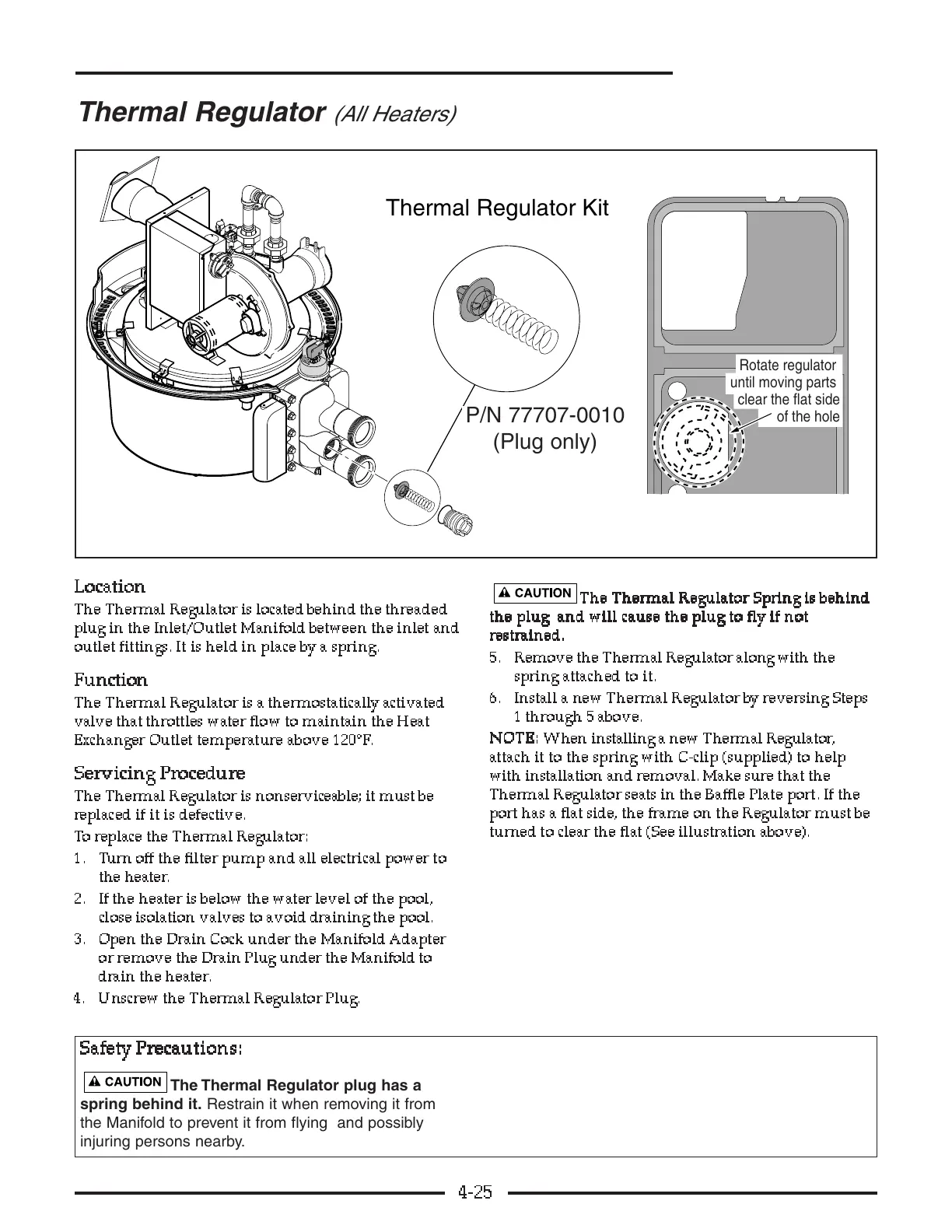

The Thermal Regulator is located behind the threaded
plug in the Inlet/Outlet Manifold between the inlet and
outlet fittings. It is held in place by a spring.
FF
FF
uu
uu
nn
nn
cc
cc
tt
tt
ii
ii
oo
oo
nn
nn
The Thermal Regulator is a thermostatically activated
valve that throttles water flow to maintain the Heat
Exchanger Outlet temperature above 120°F.
SS
SS
ee
ee
rr
rr
vv
vv
ii
ii
cc
cc
ii
ii
nn
nn
gg
gg
PP
PP
rr
rr
oo
oo
cc
cc
ee
ee
dd
dd
uu
uu
rr
rr
ee
ee
The Thermal Regulator is nonserviceable; it must be
replaced if it is defective.
To replace the Thermal Regulator:
1. Turn off the filter pump and all electrical power to
the heater.
2. If the heater is below the water level of the pool,
close isolation valves to avoid draining the pool.
3. Open the Drain Cock under the Manifold Adapter
or remove the Drain Plug under the Manifold to
drain the heater.
4. Unscrew the Thermal Regulator Plug.
TT
TT
hh
hh
ee
ee
TT
TT
hh
hh
ee
ee
rr
rr
mm
mm
aa
aa
ll
ll
RR
RR
ee
ee
gg
gg
uu
uu
ll
ll
aa
aa
tt
tt
oo
oo
rr
rr
SS
SS
pp
pp
rr
rr
ii
ii
nn
nn
gg
gg
ii
ii
ss
ss
bb
bb
ee
ee
hh
hh
ii
ii
nn
nn
dd
dd
tt
tt
hh
hh
ee
ee
pp
pp
ll
ll
uu
uu
gg
gg
aa
aa
nn
nn
dd
dd
ww
ww
ii
ii
ll
ll
ll
ll
cc
cc
aa
aa
uu
uu
ss
ss
ee
ee
tt
tt
hh
hh
ee
ee
pp
pp
ll
ll
uu
uu
gg
gg
tt
tt
oo
oo
ff
ff
ll
ll
yy
yy
ii
ii
ff
ff
nn
nn
oo
oo
tt
tt
rr
rr
ee
ee
ss
ss
tt
tt
rr
rr
aa
aa
ii
ii
nn
nn
ee
ee
dd
dd
..
..
5. Remove the Thermal Regulator along with the
spring attached to it.
6. Install a new Thermal Regulator by reversing Steps
1 through 5 above.
NN
NN
OO
OO
TT
TT
EE
EE
::
::
When installing a new Thermal Regulator,
attach it to the spring with C-clip (supplied) to help
with installation and removal. Make sure that the
Thermal Regulator seats in the Baffle Plate port. If the
port has a flat side, the frame on the Regulator must be
turned to clear the flat (See illustration above).
4-25
