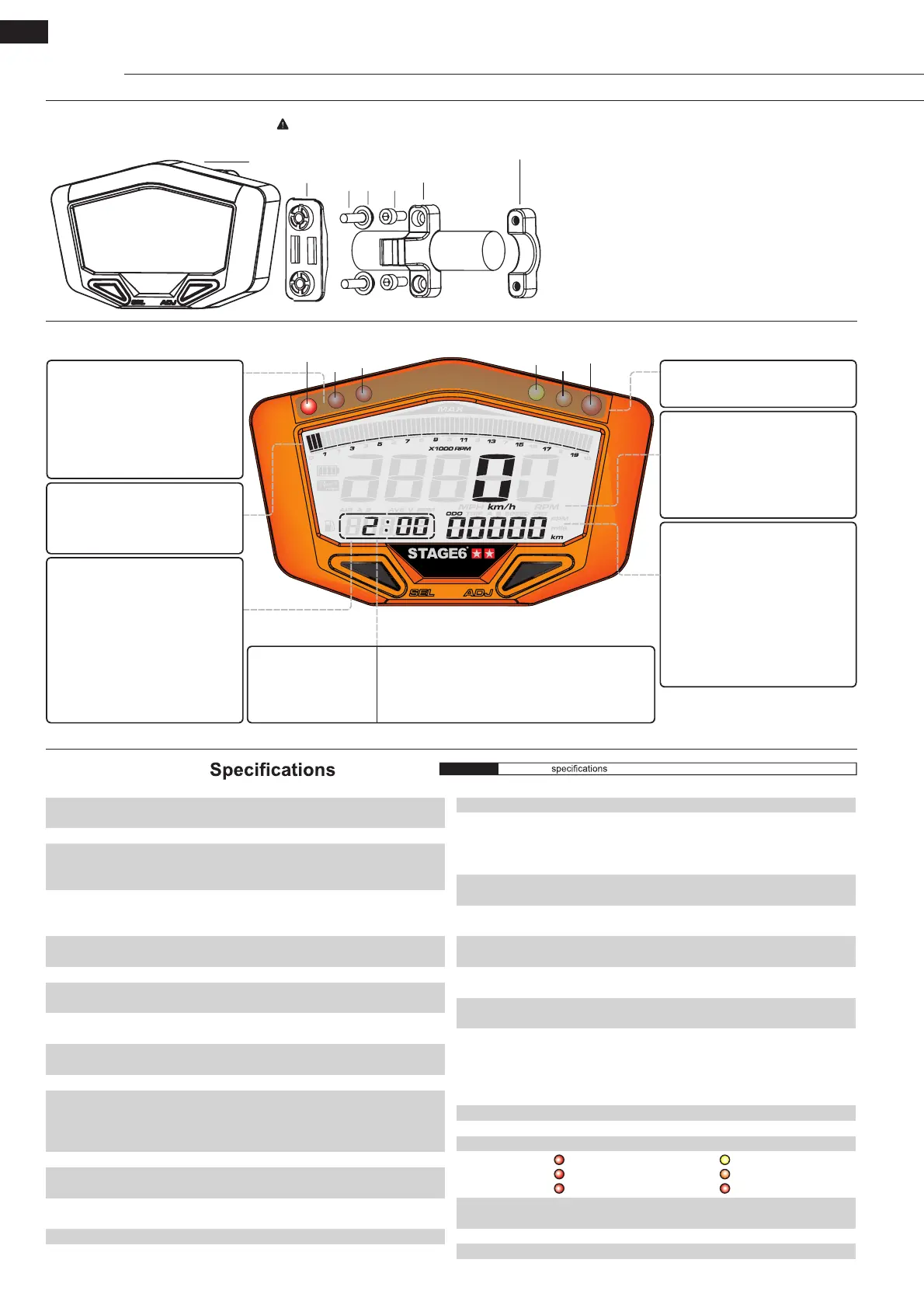

Stage6 MK2 R - Installation

S6
INSTRUCTIONS
DIGITAL SPEEDOMETER, UNIVERSAL
EN
16
2
6
5
1
2
34
1 M5 x 12L screw (2 x)
2 Instrument bracket for handlebar
Mount the bracket to the handlebar (7/8 inch)
3 M5 x 15L screw (2 x)
4 M5 washer (2 x)
5 Instrument mounting plate
6 Instrument
Attach the mounting plate to the instrument using the
screws and washers.
Then attach mounting plate with instrument to bracket
on handlebar.
NOTE
Please adjust the angle of the instrument
before tightening the screws.
2.2 Installation
3.1 The Display
T
-
A
T
-
B
S
P
E
E
D
DIGITAL
Temperature alarm A
Temperature alarm B
•Setting range: 60–250 °C (140–482 °F)
•Setting unit: 1 °C (°F)
•Setting range: 200–1000 °C (392–1832 °F)
•Setting unit: 1 °C (°F)
Temperature A
Temperature B
•Setting range: 0.0–250.0 °C (32.0–482.0 °F)
•Setting unit: 0.1 °C (°F)
•Setting range: 100–1200 °C (250 ~ 2100 °F)
•Setting unit: 1 °C (°F)
Speed Warning
• Setting range: 30–360 km/h (19–225 MPH)
• Setting unit
: 1 km/h (MPH)
Tachometer (Bar with 60 segments)
• Display range: either up to 10,000, 15,000
or 20,000 RPM
• Display unit: depending on the selected
range: 166, 250 or 333 RPM
Volt meter (the external power)
•Display range: 8.0–18.0 V
•Display unit: 0.1 V
•When the external power is connected,
it will show the voltage value directly. It
shows 0.0V when the external power is
disconnected.
Sequential Shift Light
•Setting range: 5,000–20,000 RPM
•Setting unit: 100 RPM
Speedometer
• Display range: 0–360 km/h (0–225 MPH)
• Display unit: 1 km/h (1 MPH)
Tachometer (Digital)
•Display range: 0–20,000 RPM
•Display unit: 10 RPM
Odometer
•Display range: 0–99,999 km (miles)
Automatic reset after 99,999 km (miles)
•Display unit: 1 km (miles)
Tripmeter A/B
•Display range: 0–999.9 km (miles)
Automatic reset after 999.9 km (miles)
•Display unit: 0.1 km (miles)
Engine hours meter
•Display range: 0.0–9999.9 h
•Display unit: 0.1 h (6 minutes)
A
A
Speed
RPM
B
B
Clock
•Mode: 24 h
•If the instrument is off, the
seconds will be displayed.
Low Fuel Level Warning
•Display range: 0%–100%
•Display unit: 5%
•If the fuel level is below 20%, it will be displayed as “5%”.
•If the fuel level is above 20%, it will be displayed as “10%”.
3.2 Functions and
Design and are subject to change without notice!
NOTE
Temperature alarm A
Setting range: 60–250 °C (140–482 °F)
The RPM input pulse
Setting range: LO-ACT, HI-ACT
Temperature alarm B
Setting range: 200–1000 °C (392–1832 °F)
Setting unit: 1 °C (°F)
Setting unit: 1 °C (°F)
Top temperature record A
Display range: 0.0–250.0 °C (32.0–482.0 °F)
Top temperature record B
Display range: 100–1200 °C (250–2100 °F)
Fuel meter
Display range: 0–100%
Setting unit: 100 , 510 , No display
Low fuel level warning
Setting range: 10–50%
Setting unit: 10%
Target speed timer
Setting range: 30–360 km/h (20–225 MPH)
Setting unit: 5 km/h (MPH)
Target distance timer
Setting range: 1/32–30/32 mile (50–1,500 m)
Setting unit: 1/32 mile (50 m)
Top speed timer
Standard
JIS D 0203 S2
Instrument size
100 x 60 x 20 mm
Instrument weight
ca. 200 g
Alarm lights
Voltmeter
Operating voltage
DC 12 V
Operating temperature
-10 to +60 °C
The record includes
1. Speed: 0–360 km/h (0–225 MPH)
2. Distance: 0–999 m (0–3,280 feet)
3. RPM: 0–20,000 RPM
4. Time: 0–9:59.99 min
Speed (red)
Temperature alarm A (red)
Tem
p
erature alarm B
(
red
)
Shift light A (yellow)
Shift light B (orange)
Shift light (red)
Display range: DC 8.0–18.0 V
Display unit: DC 0.1 V
Speedometer
Display range: 0–360 km/h (0–225 MPH)
Display unit: 1 km/h or 1 MPH
Display interval
< 0.5 seconds
Odometer
Display range: 0–99,999 km (miles),then auto-
matic reset
Display unit: 1 km (miles)
Display range: 0–999.9 km (miles), then auto-
Tripmeter A/B
matic reset
Display unit: 0.1 km (miles)
Speed warning
Setting range: 30–360 km/h (19–225 MPH)
Setting unit: 1 km/h (MPH)
Top speed record
Display range: 0–360 km/h (0–225 MPH)
Tyre circumference
Setting range: 300–2,500 mm
Setting unit: 1 mm; sensor points: max. 20
Tachometer (digital)
Display range: 0–20,000 RPM
Display unit: 10 RPM
Tachometer (bar)
Display range: either up to 10,000, 15,000 or
20,000 RPM
Thermometer
Display unit: °C or °F
Thermometer A
Display range: 0.0–250.0 °C (32.0–482.0 °F)
Display unit: 0.1 °C (°F)
Thermometer B
Display range: 100–1200 °C (250 ~ 2100 °F)
Display unit: 1 °C (°F)
Engine hours meter
Display range: 0.0–9999.9 h; unit: 0.1 h (6 min)
Shift light
Pre-shift light A/B
Top RPM record
Display range: 0–20,000 RPM
RPM pulse
Setting values: 0.5 | 1 | 1.5 | 2 | 2.5 | 3 | 4 | 5 | 6
Display range: 5,000–20,000 RPM
Display unit: 100 RPM
Display range: 500–5,000 RPM before shift light
Display unit: 100 RPM
