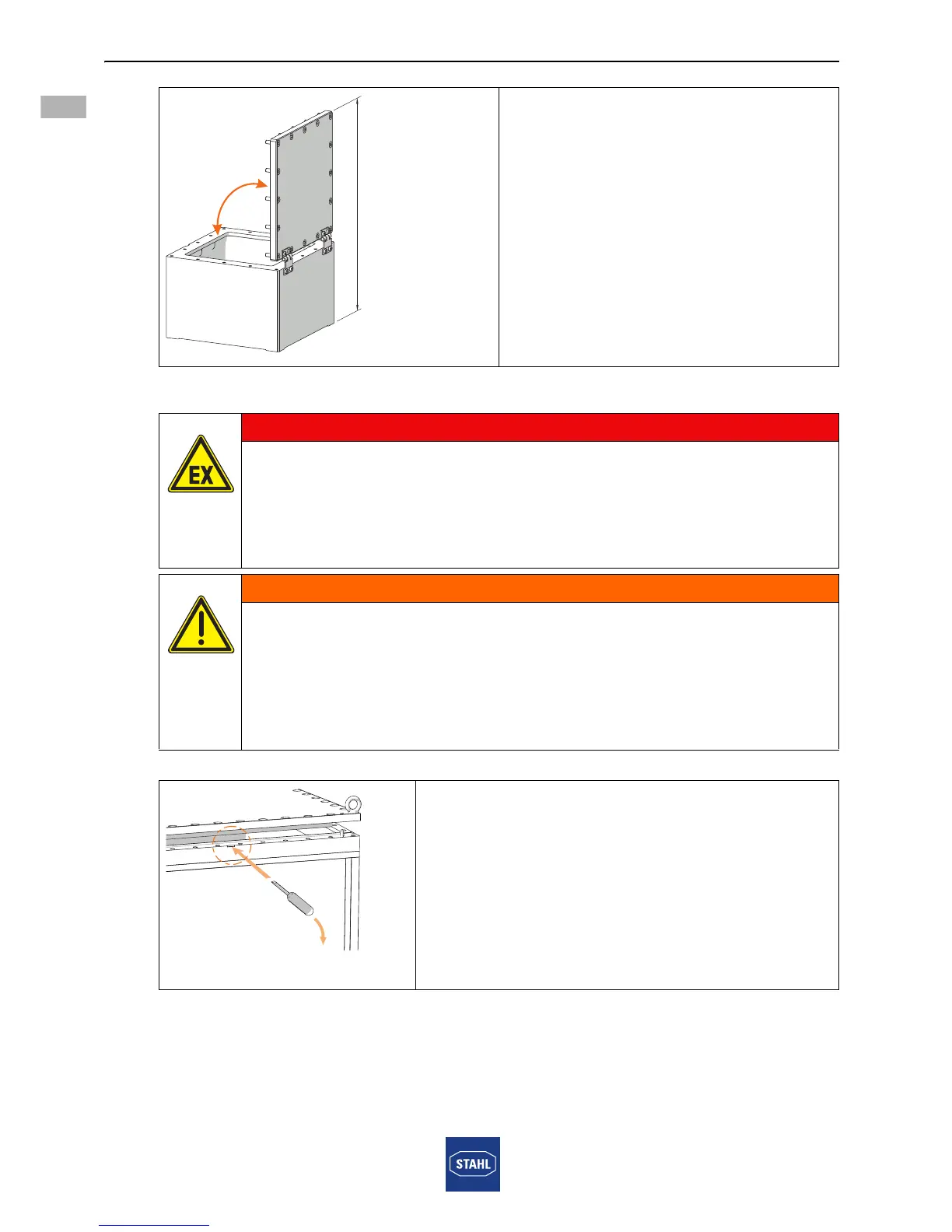

7.3 Installation
Opening the enclosure cover
Closing the enclosure cover
• Apply acid-free grease to the joint face of the cover (Blasolube 300).
• Close or attach the enclosure cover carefully (observe the weight).
• Observe the specified tightening torque.
16792E00
• Observe clearance for cover opening.
DANGER
Explosion hazard due to damaged joint faces!
Non-compliance results in severe or fatal injuries.
• Always carefully lift, take off and attach the enclosure cover.
• Use suitable lifting tool without sharp edges.
• Enclosure cover or enclosure with damaged joint face should be
replaced immediately!
WARNING
Risk of heavy enclosure cover falling down!
Non-compliance can result in severe or fatal injuries.
• Observe the excessive weight of the enclosure cover when opening.
• Before opening the enclosure, get a suitable lifting tool ready (see also
weight of the enclosure cover in chapter "Technical Data").
• Use suitable lifting tool.
• Attach a suitable hinge if necessary.
16600E00
• With captive screws: Retract screws in through
hole and then screw them 1 to 2 turns
counterclockwise into the thread. Screws are
fixed in the cover and thus securely stored.
• Introduce slotted screwdriver into the gap below
the cover (see fig.)
• Gently press down slotted screwdriver, in order
to slowly lift the enclosure cover. Use suitable
lifting tool if necessary.
• Carefully remove the enclosure cover.
X
