Place all parts from the box in a cleared area and position them on the floor in front of you. Remove all
packing materials from your area and place them back into the box. Do not dispose of the packing materials
until assembly is completed. Read each step carefully before beginning. If you are missing a part please call
our toll-free number for assistance 1 (800) 375-7520 or e-mail us at:
parts@staminaproducts.com
ASSEMBLY INSTRUCTIONS

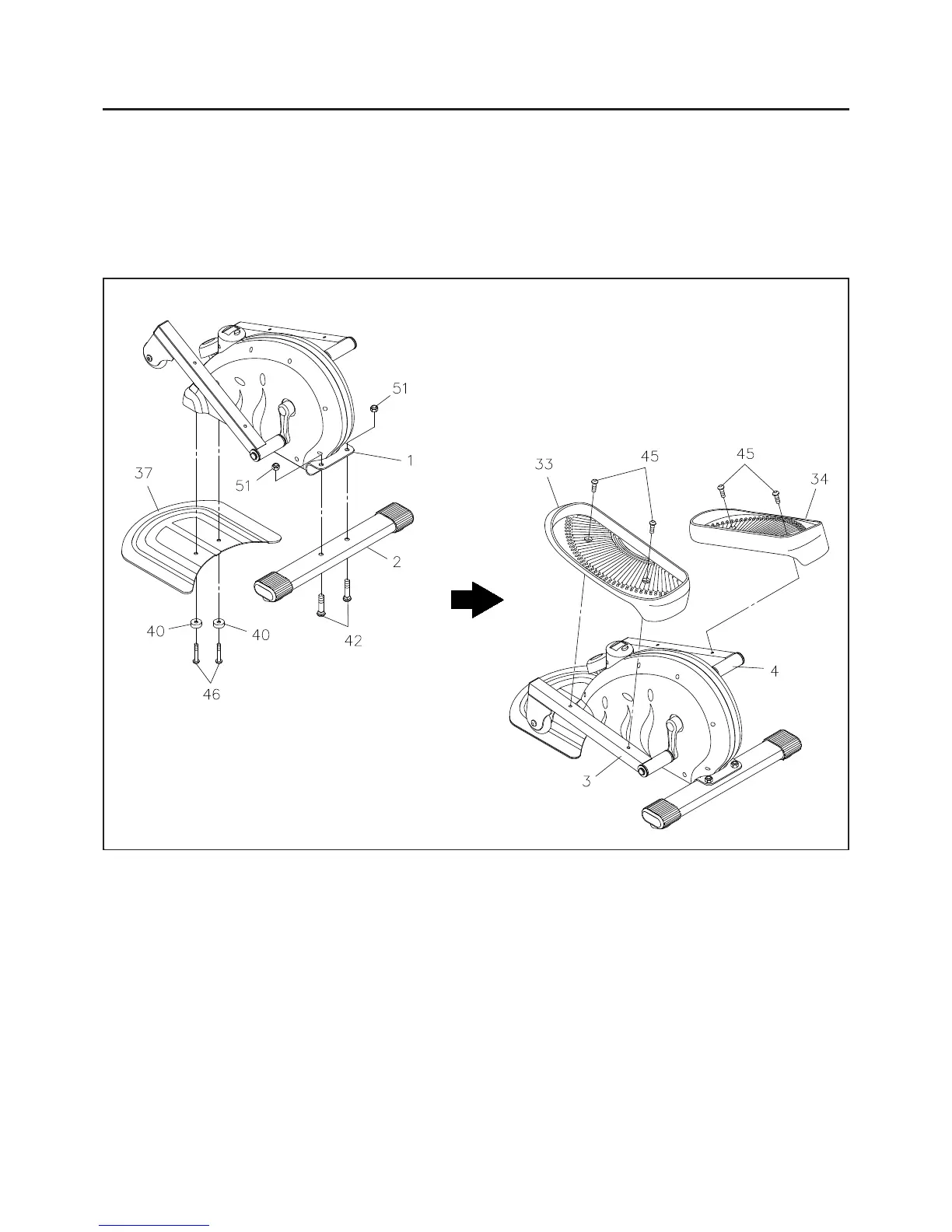

STEP 1
Attach the REAR STABILIZER(2) onto the MAIN FRAME(1) with CARRIAGE BOLTS(M10x1.5x43mm)
(42) and NYLOCK NUTS(M10x1.5)(51).
STEP 2
Attach the BASE BOARD(37) onto the MAIN FRAME(1) with the STANDS(40) and BUTTON HEAD
BOLTS(M8x1.25x42mm)(46).
STEP 3
Attach the LEFT PEDAL CAP(33) onto the LEFT PEDAL ARM(3) with BUTTON HEAD BOLTS
(M8x1.25x20mm)(45). Repeat on the other side.
NOTE: The LEFT and RIGHT PEDAL CAPS(33, 34) have a raised lip on three sides. Attach the LEFT and
RIGHT PEDAL CAPS(33, 34) to the LEFT and RIGHT PEDAL ARMS(3, 4) so that the side without
the raised lip is on the outside.
