Standard Horizon PF-P310 - Feed Roller and Stop Pad Replacement

4. Maintenance
26
PF-P310PF-P310
P
E
P
E
R
F
O
L
D
E
R
PEPER FOLDER
Lever
P
F
-
P
3
1
0
PF-P310
PEPER FOLDER
PEPER FOLDER
Feed Tray
03PFP280A49
1
2

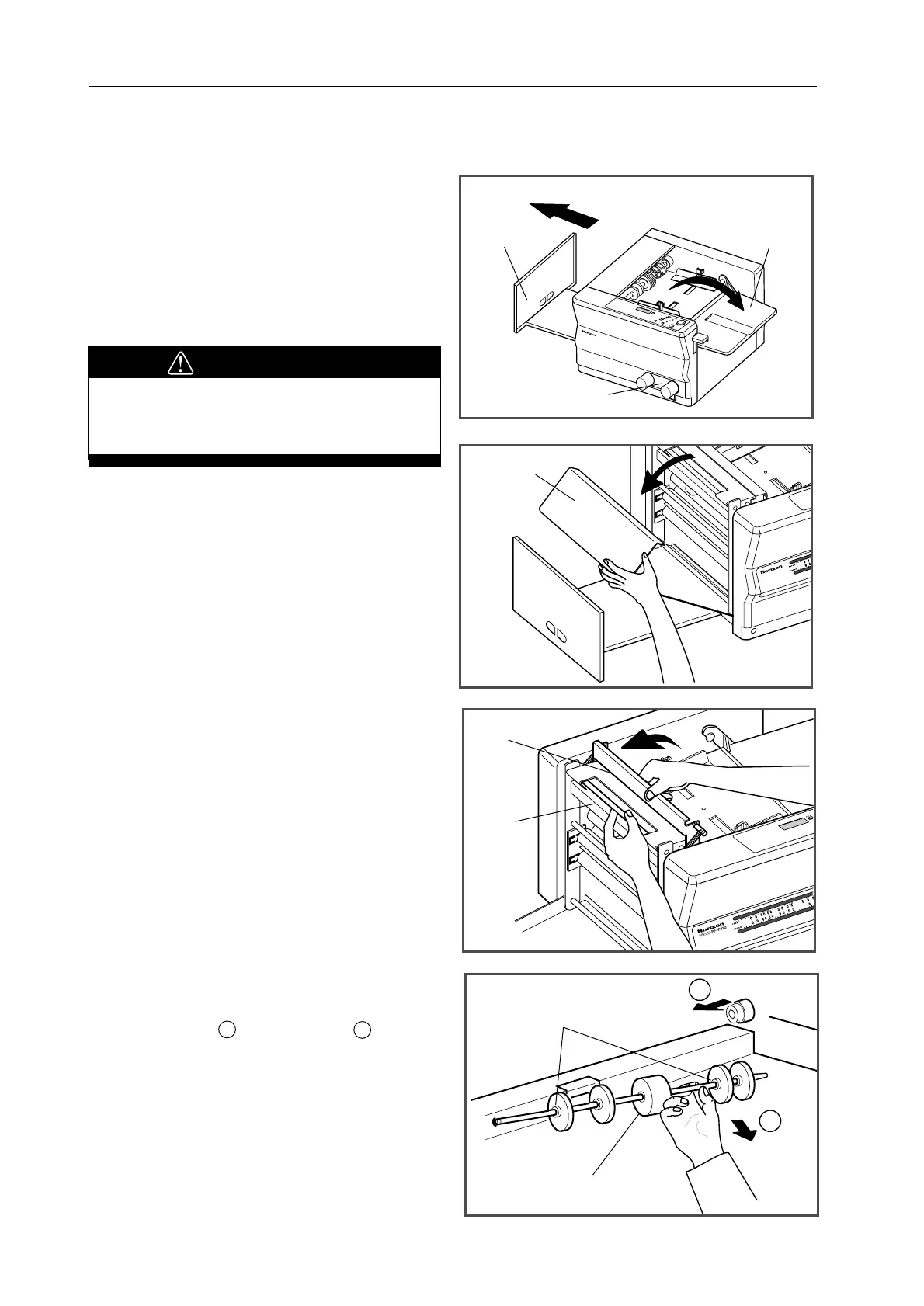

4-1 Feed Roller/Double Feed Stop Pad Replacement
- When feed roller and double feed stop pad
are stained with ink, or worn out, sheet feed
will be uncertainly. Clean or replace feed
roller or double feed stop pad.
- Feed roller and double feed stop pad
should be replaced every 150,000 to 300,000
folds.
Shaft
Feed Roller
1. Open delivery tray and feed tray.
2. Open top cover.
3. Hold shaft and open lever.
4. Slide feed roller shaft to direction of
arrow mark 1 and remove to 2 .
Remove support roller and then replace
feed roller.
WARNING
Turn off power switch and pull out
power cord from outlet before replace-
ment.
Delivery Tray
Power Switch
Top Cover
Support Roller
