4-2 Fold Roller Replacement
If fold rollers are stained with ink, or worn
out, folding accuracy decreases.
WARNING
Turn off power switch and pull out
power cord from outlet before replace-
ment.

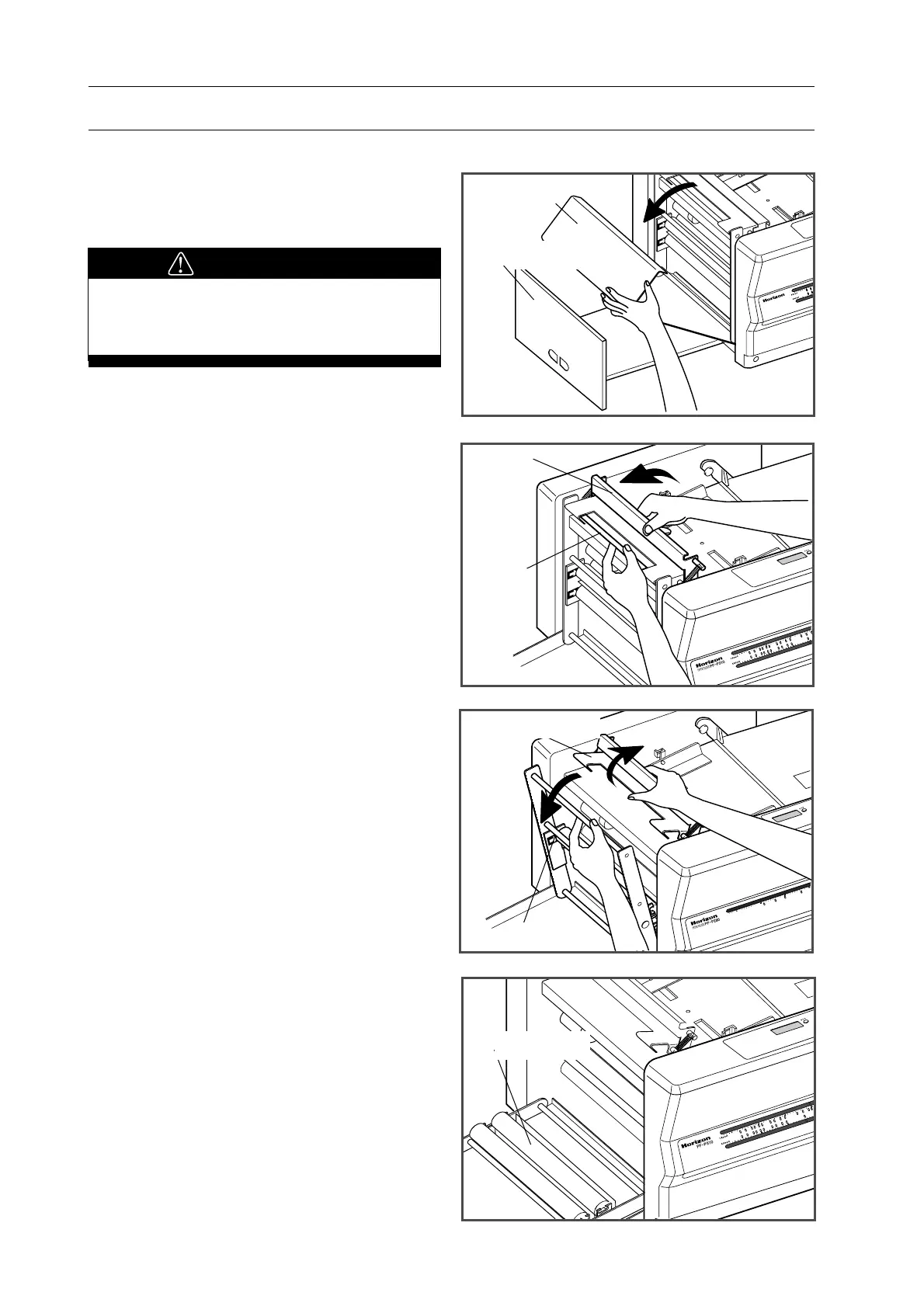

1. Slide delivery tray and open top cover.
2. Hold shaft and open lever.
3. Tilt up roller hanger and lay down roller
holder.
NOTE
Keep holding roller hanger during laying
down roller holder.
Top Cover
Delivery Tray
Lever
Shaft
Fold Rollers
