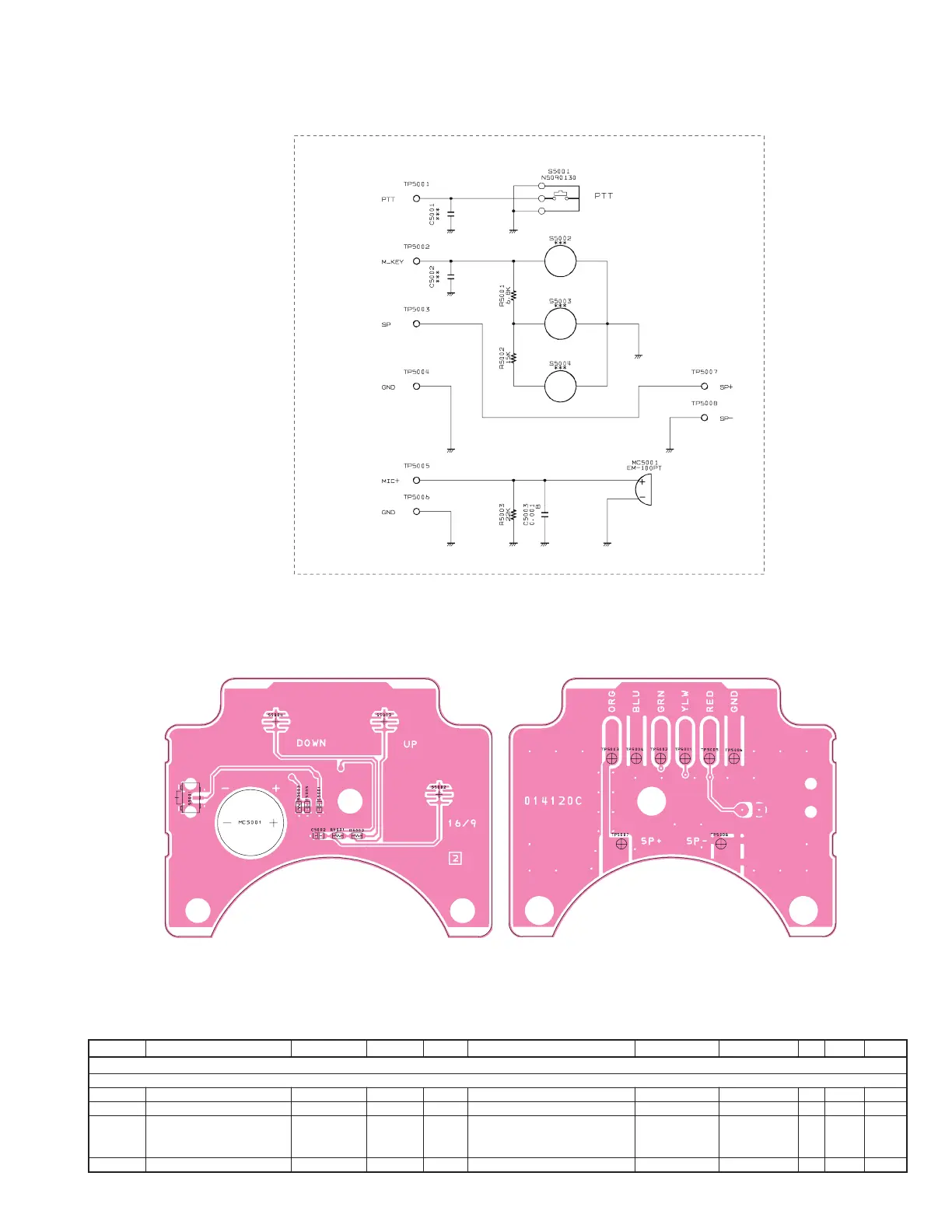

MIC-Unit
25
Parts Layout
Side BSide A
Circuit Diagram
PCB with Components CB3558001
Printed Circuit Board FR014120C 1-
C 5003 CHIP CAP. 0.001uF 50V B GRM188B11H102KA01D K22174809 1- A
MC5001 MIC. ELEMENT EM-100PT M3290029 1- A
R 5001 CHIP RES. 6.8k 1/16W 5% RMC1/16 682JATP J24185682 1- A
R 5002 CHIP RES. 15k 1/16W 5% RMC1/16 153JATP J24185153 1- A
R 5003 CHIP RES. 22k 1/16W 5% RMC1/16 223JATP J24185223 1- A
S 5001 TACT SWITCH SKRTLAE010 N5090130 1- A
Parts List
REF DESCRIPTION VALUE V/W TOL. MFR'S DESIG VXSTD P/N VERS.
LOT
SIDE
LAY ADR
CALL
IC2
IC1
