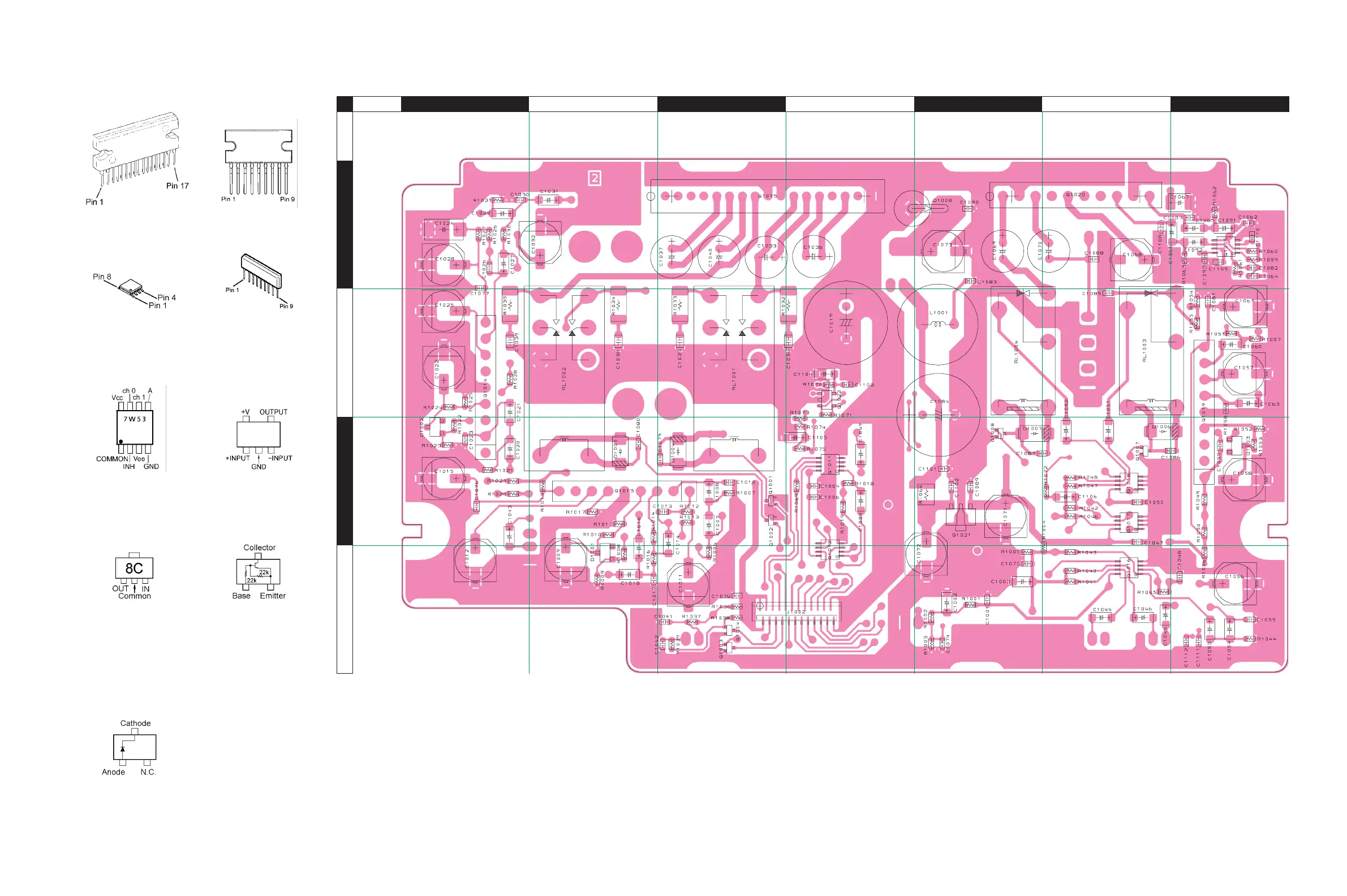

Parts Layout (Side A)

BA DC FE G

1SS307 (C9)

(D1001, 1002, 1003)

DTC124EE (25)

(Q1001, 1002, 1003,

1004, 1007, 1008)

TC4W66FU

(Q1005, 1012)

NJM78L05UA (8C)

(Q1021)

NJM2125F

(Q1022)

TC7W53FU

(Q1011, 1016, 1017,

1018)

LA3210B-E

(Q1013, 1014, 1019)

TA8231LQ

(Q1015)

LA4601N

(Q1020)

MAIN Unit (Lot. 1)
