5
FUNCTIONAL DESCRIPTION

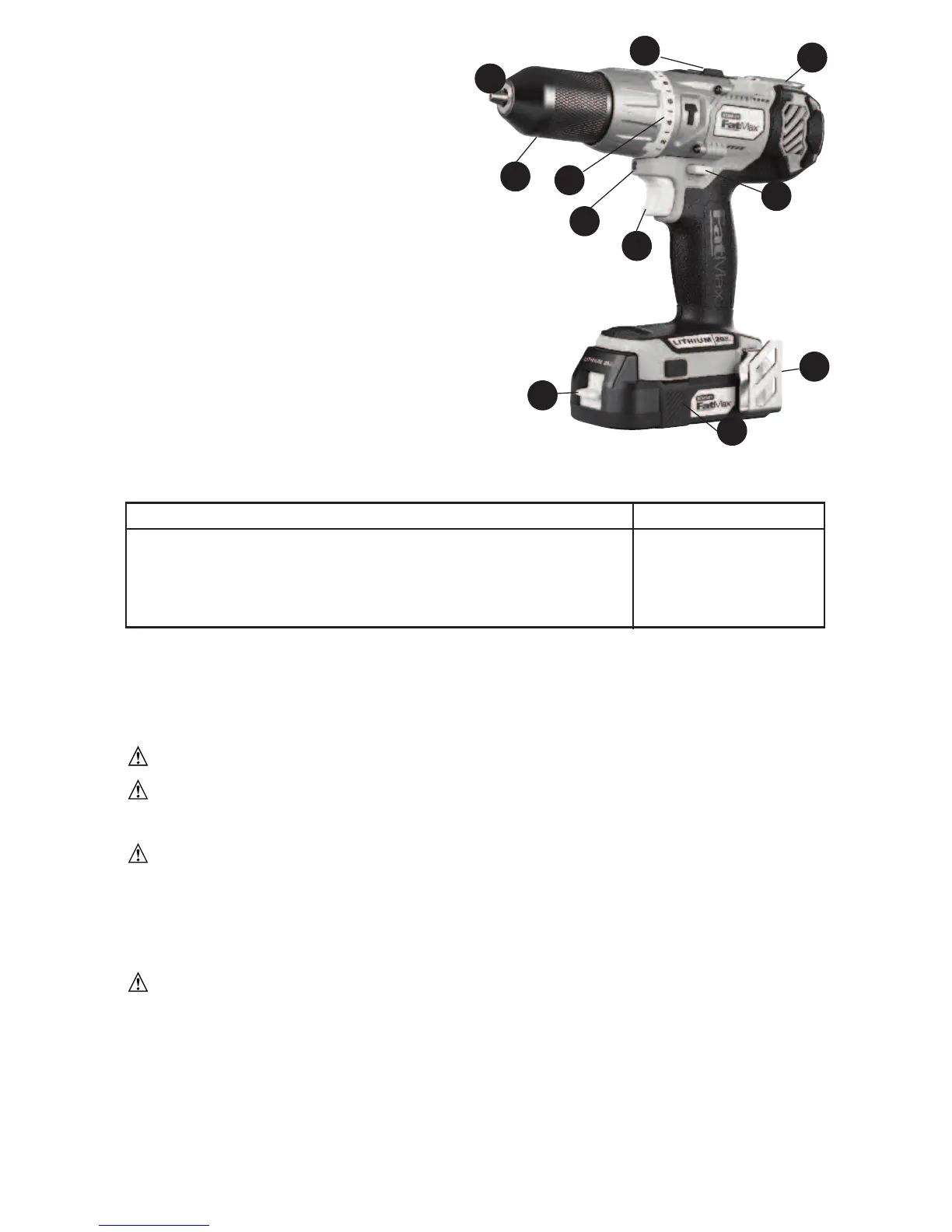

Figure A
1. Trigger Switch
2. Forward/Reverse Button
3. Torque Adjust Collar
4. Dual Range Gearing
5. Keyless Chuck
6. Bit Holder
7. Battery
8. Battery Release Button
9. LED Work Light
10. Belt Clip
IMPORTANT SAFETY INSTRUCTIONS FOR BATTERY CHARGERS
SAVE THESE INSTRUCTIONS: This manual contains important safety instructions for
battery chargers.
• Before using charger, read all instructions and cautionary markings on charger, battery
pack, and product using battery pack.
WARNING: Shock hazard. Do not allow any liquid to get inside charger.
CAUTION: Burn hazard. To reduce the risk of injury, charge only designated
Stanley FatMax FMC 20V MAX lithium batteries. Other types of batteries may burst
causing personal injury and damage.
CAUTION: Under certain conditions, with the charger plugged in to the power
supply, the charger can be shorted by foreign material. Foreign materials of a conductive
nature such as, but not limited to, steel wool, aluminum foil, or any buildup of metallic
particles should be kept away from charger cavities. Always unplug the charger from the
power supply when there is no battery pack in the cavity. Unplug charger before
attempting to clean.
WARNING:
• DO NOT attempt to charge the battery pack with any chargers other than the ones
in this manual. The charger and battery pack are specifically designed to work together.
• These chargers are not intended for any uses other than charging designated
Stanley FatMax FMC 20V MAX lithium rechargeable batteries. Any other uses may
result in risk of fire, electric shock or electrocution.
• Do not expose charger to rain or snow.
• Pull by plug rather than cord when disconnecting charger. This will reduce risk of
damage to electric plug and cord.
• Make sure that cord is located so that it will not be stepped on, tripped over, or
otherwise subjected to damage or stress.
A
5
3
1
2
4
6
8
7
9
10
Lithium Ion Battery Pack and Charger
Description Catalog #
This product uses the battery and charger listed in the chart below.
20v max* Lithium Ion Battery: FMC680L
20v max* Series Lithium Ion Battery Charger: FMC690L
