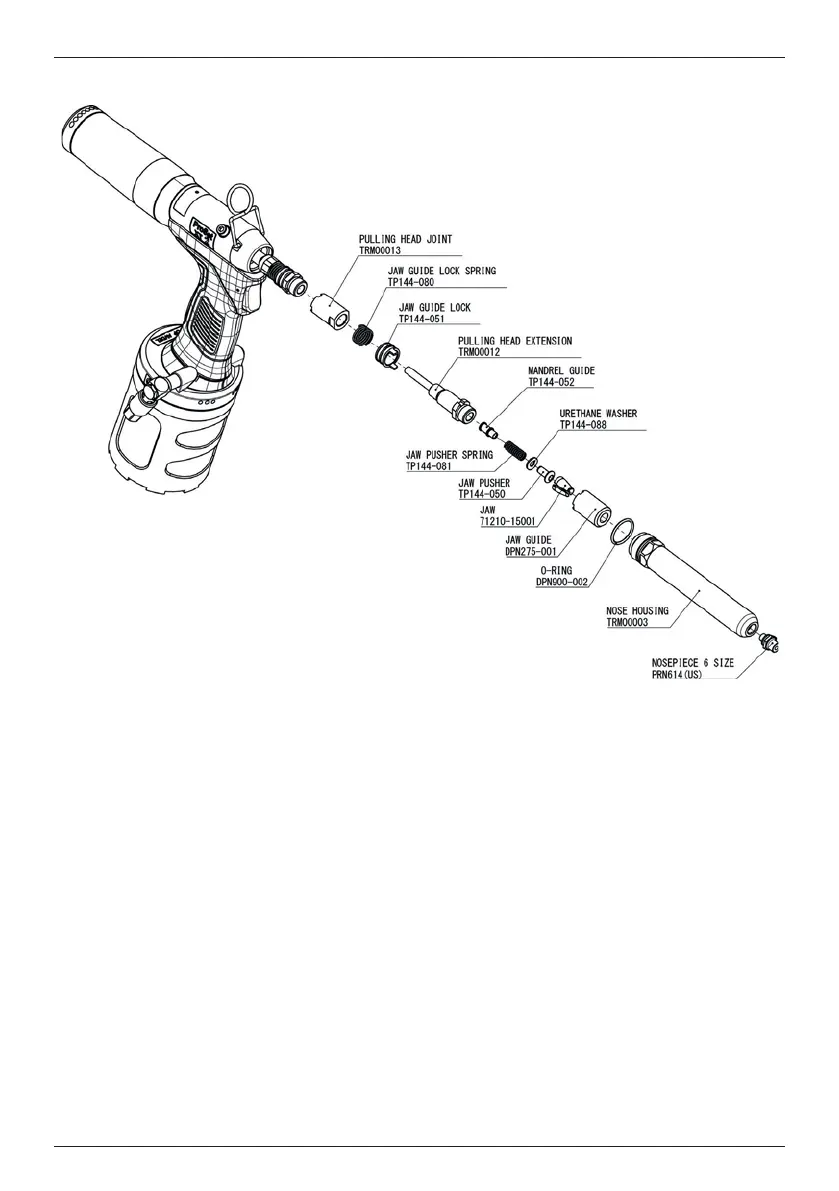

Fig. 14
• The air supply must be disconnected.
• Install Pulling Head Joint (TRM00013) together with Jaw Guide Lock (TP144-051) and Jaw Guide Lock
Spring (TP144-080) to Pulling Head Extension (TRM00012).
• Attach Mandrel Guide (TP144-052) to Pulling Head Extension (TRM00012).
• Attach Jaw Pusher (TP144-050) together with Urethane Washer (TP144-088) and Jaw Pusher Spring
(TP144-081) to Pulling Head Extension (TRM00012).
• Install Jaw Guide (DPN275-001) together with Jaw (71210-15001) to Pulling Head Extension (TRM00012).
• Screw Nose Housing (TRM00003) together with Nosepiece and O-Ring (DPN900-002) to Handle Upper
Assembly (TRM00222).
