Star Lang RT36 - Page 14

14

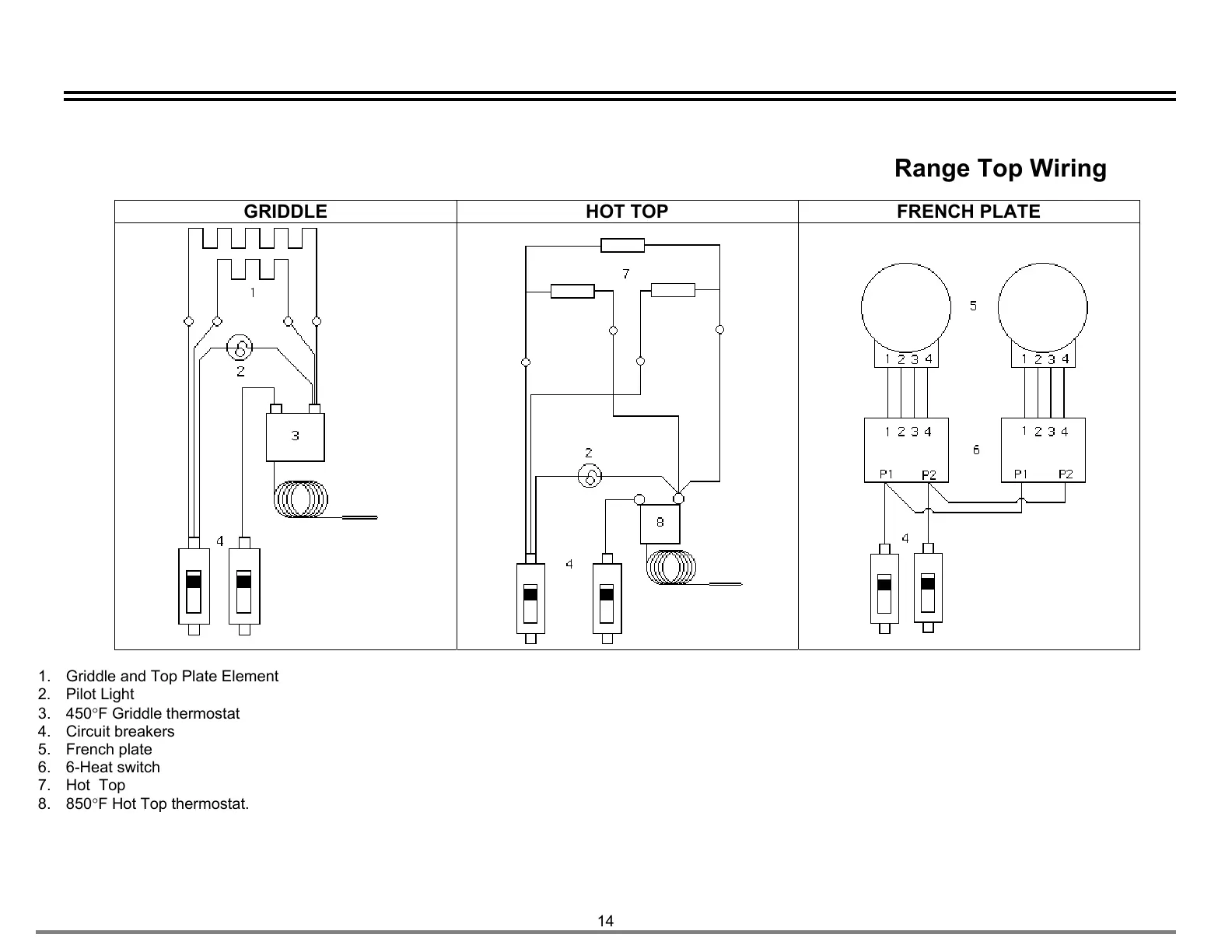

Range Top Wiring
GRIDDLE HOT TOP FRENCH PLATE
1. Griddle and Top Plate Element
2. Pilot Light
3. 450°F Griddle thermostat
4. Circuit breakers
5. French plate
6. 6-Heat switch
7. Hot Top
8. 850°F Hot Top thermostat.
