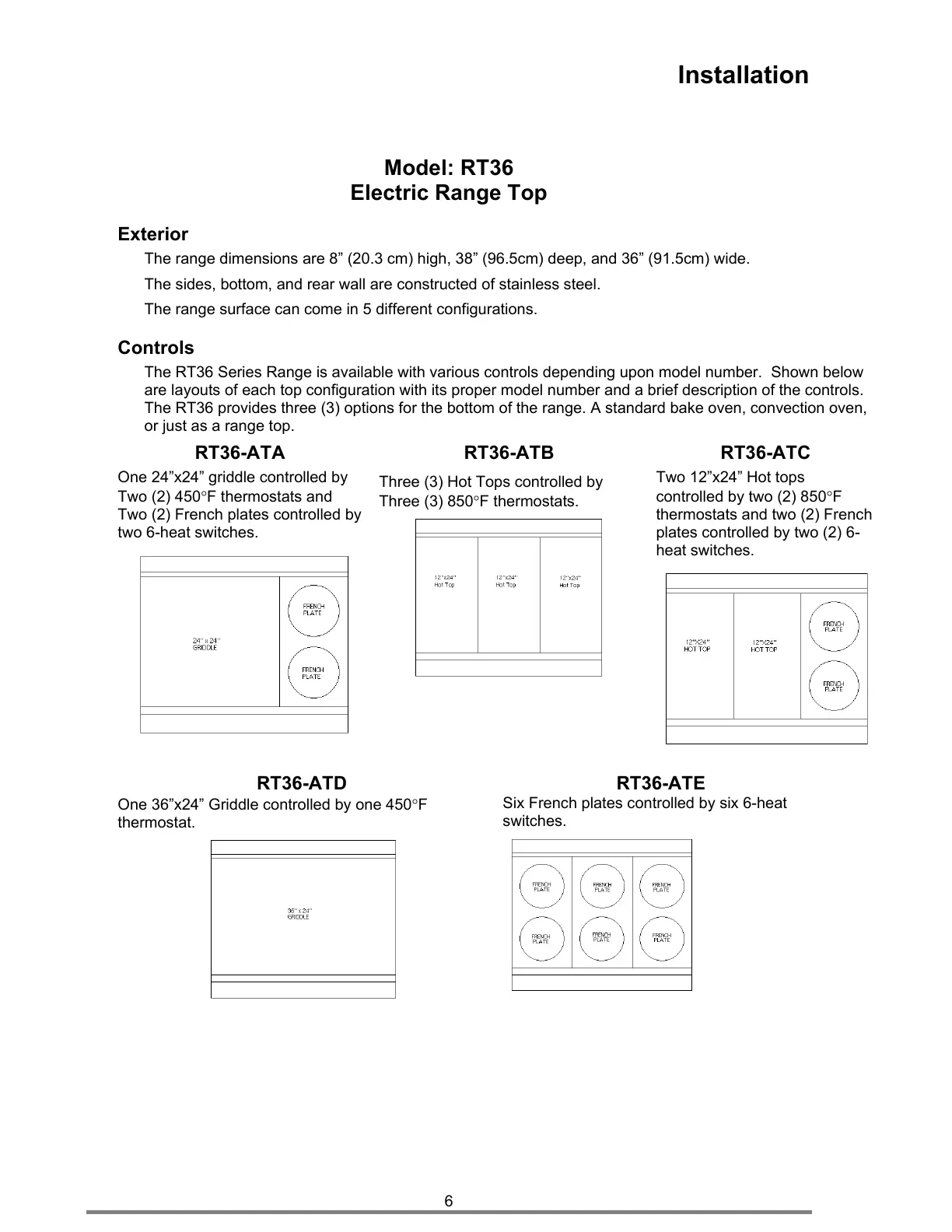

Installation
6
Model: RT36
Electric Range Top
Exterior
The range dimensions are 8” (20.3 cm) high, 38” (96.5cm) deep, and 36” (91.5cm) wide.
The sides, bottom, and rear wall are constructed of stainless steel.
The range surface can come in 5 different configurations.
Controls
The RT36 Series Range is available with various controls depending upon model number. Shown below
are layouts of each top configuration with its proper model number and a brief description of the controls.
The RT36 provides three (3) options for the bottom of the range. A standard bake oven, convection oven,
or just as a range top.
RT36-ATA
One 24”x24” griddle controlled by
Two (2) 450°F thermostats and
Two (2) French plates controlled by
two 6-heat switches.
RT36-ATB
Three (3) Hot Tops controlled by
Three (3) 850°F thermostats.
RT36-ATC
Two 12”x24” Hot tops
controlled by two (2) 850°F
thermostats and two (2) French
plates controlled by two (2) 6-
heat switches.
RT36-ATD
One 36”x24” Griddle controlled by one 450°F
thermostat.
RT36-ATE
Six French plates controlled by six 6-heat
switches.
