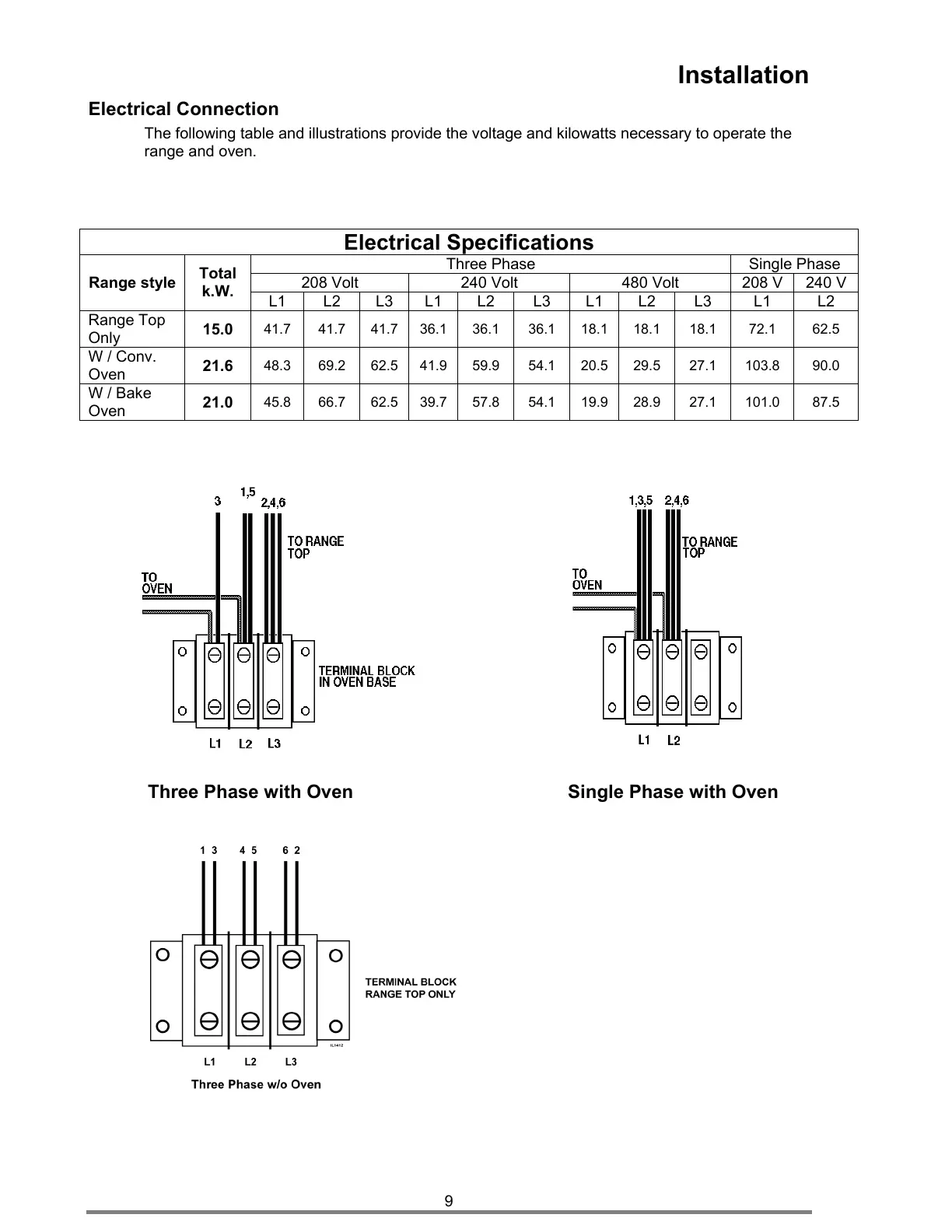

Installation
9
Electrical Connection
The following table and illustrations provide the voltage and kilowatts necessary to operate the
range and oven.
Electrical Specifications
Three Phase Single Phase
208 Volt 240 Volt 480 Volt 208 V 240 V
Range style
Total
k.W.
L1 L2 L3 L1 L2 L3 L1 L2 L3 L1 L2
Range Top
Only
15.0
41.7 41.7 41.7 36.1 36.1 36.1 18.1 18.1 18.1 72.1 62.5
W / Conv.
Oven
21.6
48.3 69.2 62.5 41.9 59.9 54.1 20.5 29.5 27.1 103.8 90.0
W / Bake
Oven
21.0
45.8 66.7 62.5 39.7 57.8 54.1 19.9 28.9 27.1 101.0 87.5
Three Phase with Oven Single Phase with Oven
