AVR200 and AVR300 User Guide
13 6106 Revision D
3.4 AVR System Components
The following information describes the key components of the AVR systems.

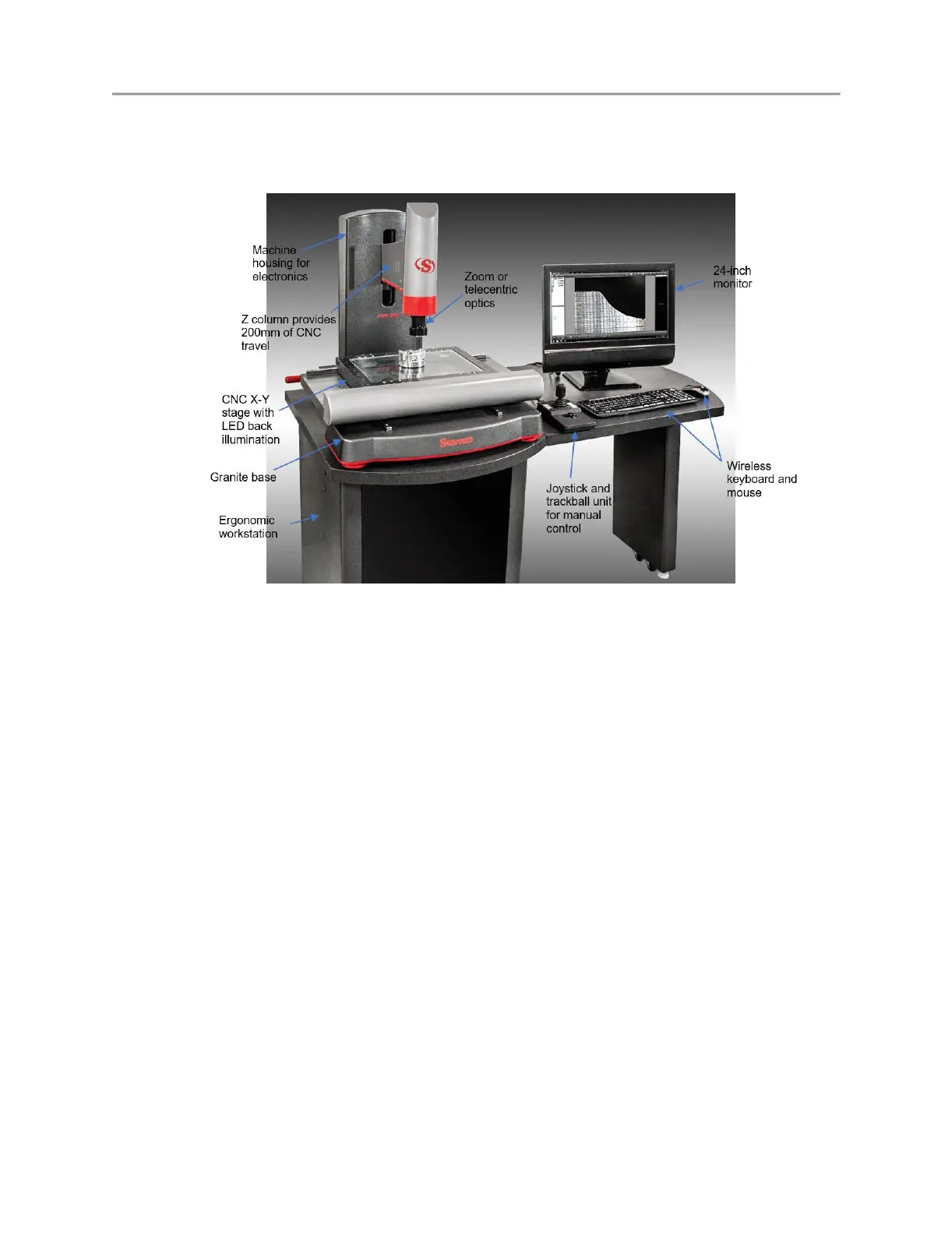

Figure
AVR System Components
3.4.1 X-Y Stage
The AVR200 stage offers a measurement range of 200 x 100 x 200 millimeters
(8 x 4 x 8 inches). The AVR300 offers a measurement range of 300 x 200 x 200 millimeters
(12 x 8 x 8 inches). The stage is made from precision machined aluminum on a granite base.
Surface mounting holes allow customer-designed fixtures for part support. Stage motion is by
means of a stepper motor.
3.4.2 Z-Column
A precision aluminum column supports the touch probe (optional), fixed ring light (standard),
coaxial light (optional), and height-adjustable motorized quad ring light (optional). Height
adjustment is 200 millimeters (8 inches) to accommodate tall parts. Motion along the Z-axis is
by means of a stepper motor.
3.4.3 Motorized Z-Track
A motorized Z-track enables height adjustment of the quad ring light. Z-track height is
adjusted through the M3 software. Height adjustment is approximately 15 centimeters
(6 inches).
