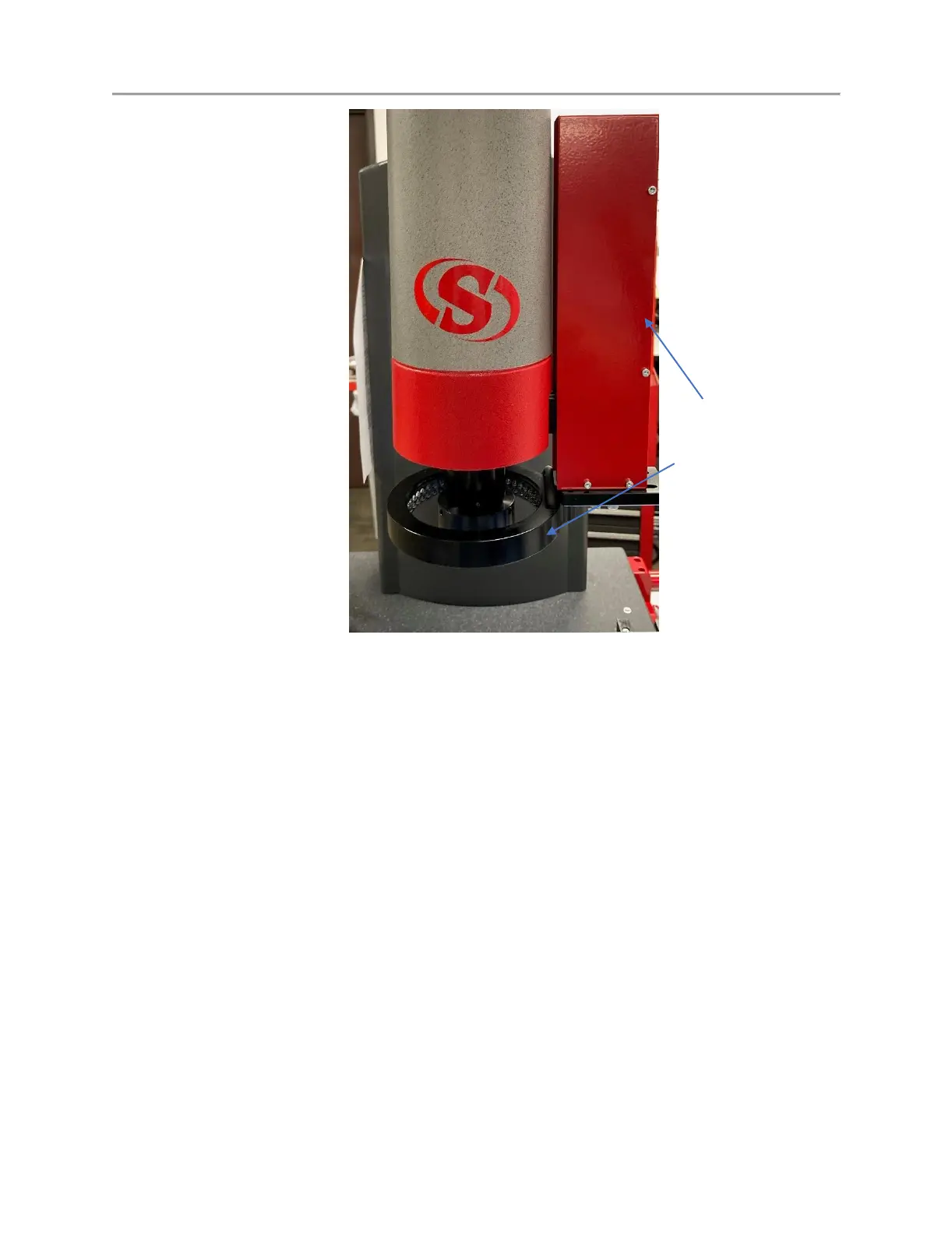

Motorized Z-Track with Mounted Quad Ring Light
3.4.4 MetLogix M3 Metrology Software
The AVR system includes the MetLogix M3 advanced metrology software. The software
includes the following key features:
•
Advanced Video Probes
: The M3 software includes several probes that provide the
ability to capture complex edges, enable instant feature determination and measurement
with the single click.
•
Field of View Functions
: The field of view Auto Run function plays part programs to
perform measurements quickly without operator intervention. Place one or more identical
parts in the field of view and the system will identify the part, execute the appropriate
program, and report measurement results.
•
Touch Probe Support
: M3 software includes support for multi-sensor video measuring
systems equipped with touch probe modules. Expanded 3-D feature geometries are
supported through touch probe and video measurement of features in the XY, YZ and ZX
planes. Measure planes, cones, cylinders and spheres in 3-D part space and then view
results in the 3-D part view. Part views can be rotated with markups showing feature
measurement results.
•
Multi-Touch Software Control
: In addition to the conventional mouse interface,
expanded MultiTouch logic allows for one-touch feature measurements as well as
versatile panning and zooming of the live video image and the active part view. This
