Starrett EC799 User Manual

14 PKG08800-UMEC799
ENGLISH

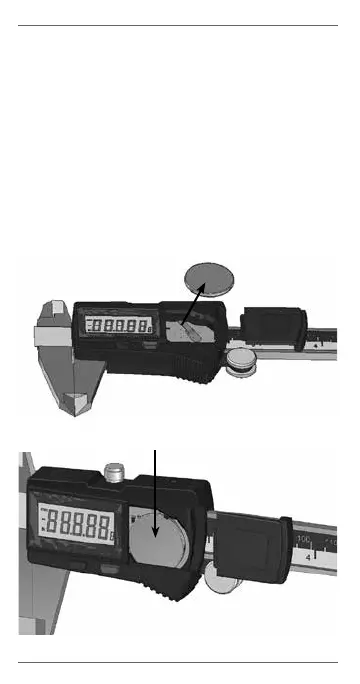

INSTALLATION / REPLACEMENT OF BATTERY
• First, remove the battery cover (9) using your thumb and
a slight pressure, carefully slide the battery cover to the
right. Place your finger into the small area at the top left
of the battery and lift the battery from the tool (Fig. 12).
• To install a new battery (Fig.13), place a new battery
plus (+) side up into the battery compartment cavity as
shown, and the battery will be held in place. Line up the
battery cover, and while lightly pressing down on it, push
the cover to the left until you hear a click. The tool will
display the main measurement display.
+
+
Fig. 12
Fig. 13

Starrett EC799 Specifications

General

Brand	Starrett
Model	EC799
Category	Measuring Instruments
Language	English
