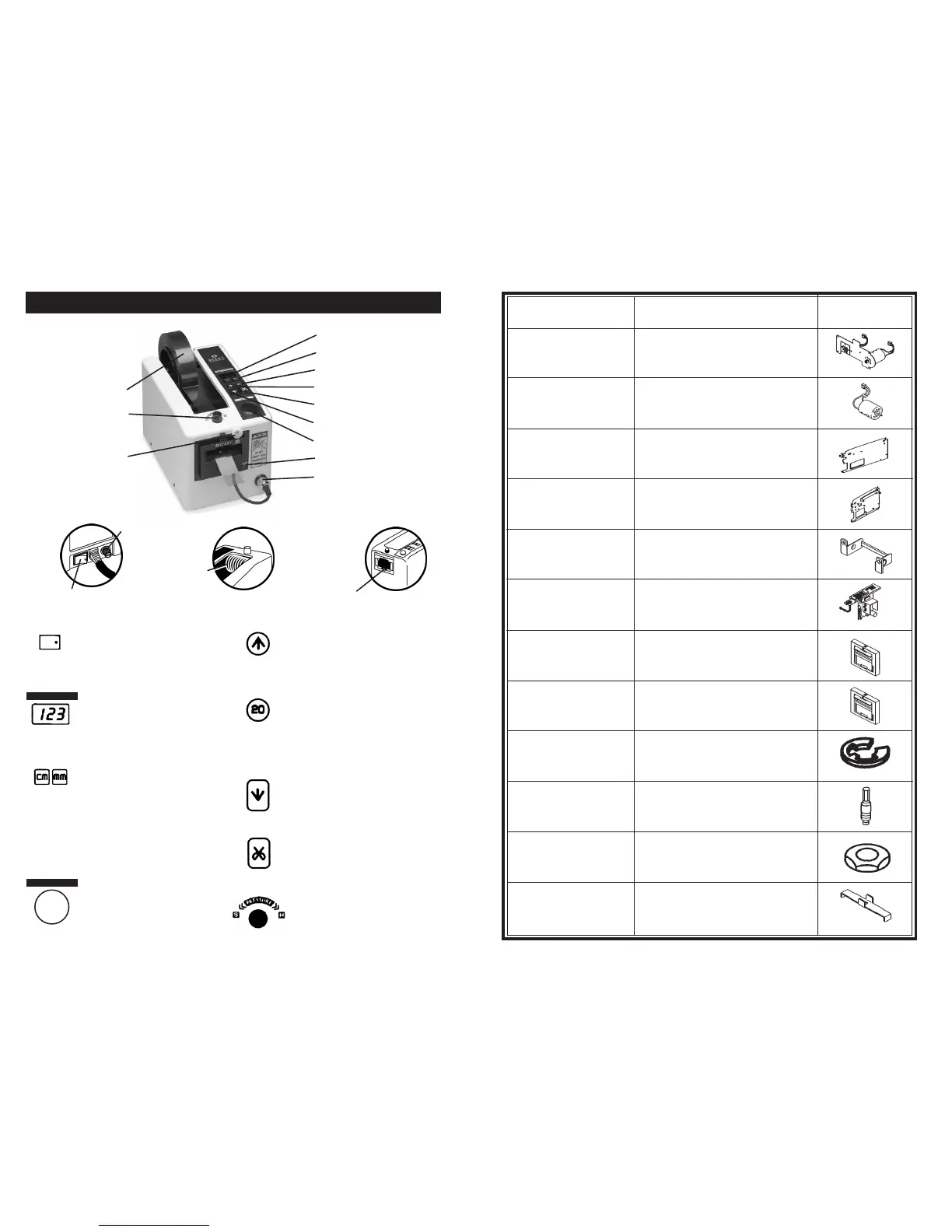

DESCRIPTION OF PARTS AND FUNCTIONS
SEPARATING
Roller
FUSE
FEED
Roller
• POWER Switch
Press to turn power
ON or OFF.
TAPE LENGTH
• TAPE LENGTH Display
The last digit indicates
millimeters and the first two
digits centimeters.
• SIZE Keys
Press mm key to set tape
length in mm. Press cm key
to set tape length in cm.
• AUTO Key
Feeds tape to the preset
length and cuts
automatically.
AUTO
• PRESSURE Knob
Adjusts top roller to change
pressure on tape.
• REVERSE Key
Feed Roller reverses.
Use this key to change tape.
• CUT Key
Press to cut tape.
• RESET Key
Length display is reset to
20mm. This key can be
used as an emergency stop.
• FEED Key
Tape dispenses as long as
key is pressed.
POWER Switch
Part Number Description Drawing
ZCM1000P435
Motor Unit 4 12VDC
Red & Brown
ZCM1000P501 Left Plate Unit 2
ZCM1000P502 Right Plate Unit 3
ZCM1000P503
Separating Roller
Holder
ZCM1000P504 Main Board Unit 2
ZCM1000P507 Blade Holder 2
ZCM1000P508
Cutter Holder Unit 2
with Blades
ZCM1000P512 E-Ring
ZCM1000P513
Roller Pressure
Shaft 2
ZCM1000P514 Hexagon Nut
ZCM1000P515
Roller Pressure
Plate 2
ZCM1000P433
Gear Cover 2 Unit
(for cutter)
REVERSE Key
TAPE LENGTH Display
RESET Key
FEED Key
SENSOR Plug
PRESSURE
Knob
CUTTER
Latch
REEL
SIZE Keys
SENSOR Switch
AUTO Key
CUT Key
