ADDITIONAL INFORMATION FOR ZCM2000
MEMORY Key
The reverse key on the ZCM1000 is changed to the MEMORY (M) key
on the ZCM2000. (The reverse function can be accessed by pressing the
FEED key and the M key at the same time. This function is for changing
tape.)
Setting Memories
1. Press and hold the M key until the LED display flashes.
2. Using the cm and mm keys, set the desired length for first cut.
A. The mm key controls the millimeter setting (1 digit).
B. The cm key controls the centimeter setting (2 digits).
(Ex: 125mm = 12cm and 5mm.)
C. Press M key to record memory. (The display will then flash “999”.)
3. Set additional lengths as shown in #2. (If only two lengths are needed,
record “999” as last length — “999” length will not be memorized.)
4. After lengths are set, the display will flash “0”.
Press mm key to switch between “0” and “5”:
• On “0”, the machine will feed and cut the first set length until the
M key is pressed, then it will feed the second length until the M
key is pressed, and so on.
• On “5”, the machine will feed and cut the recorded lengths in
series.
5. When set correctly, press and hold the M key until the display stops
flashing. The first preset length will be shown on the display and the
unit is ready to use.
6. Programmed tape lengths will be fed and cut in order when using
either the sensor unit automatic feed and cut or the AUTO button.
7. If RESET (20) key is pressed, all of the memory will be erased.
WEEKLY - Remove cutting head and clean, and look for missing roller
rings. Replace as needed.
MONTHLY- Remove blade spring and blades to inspect cutter liners.
Place one drop of silicone oil on each liner, or replace if
worn. Inspect feed roller and blades for tape fragments or
adhesive buildup. Clean with alcohol.
PREVENTIVE MAINTENANCE

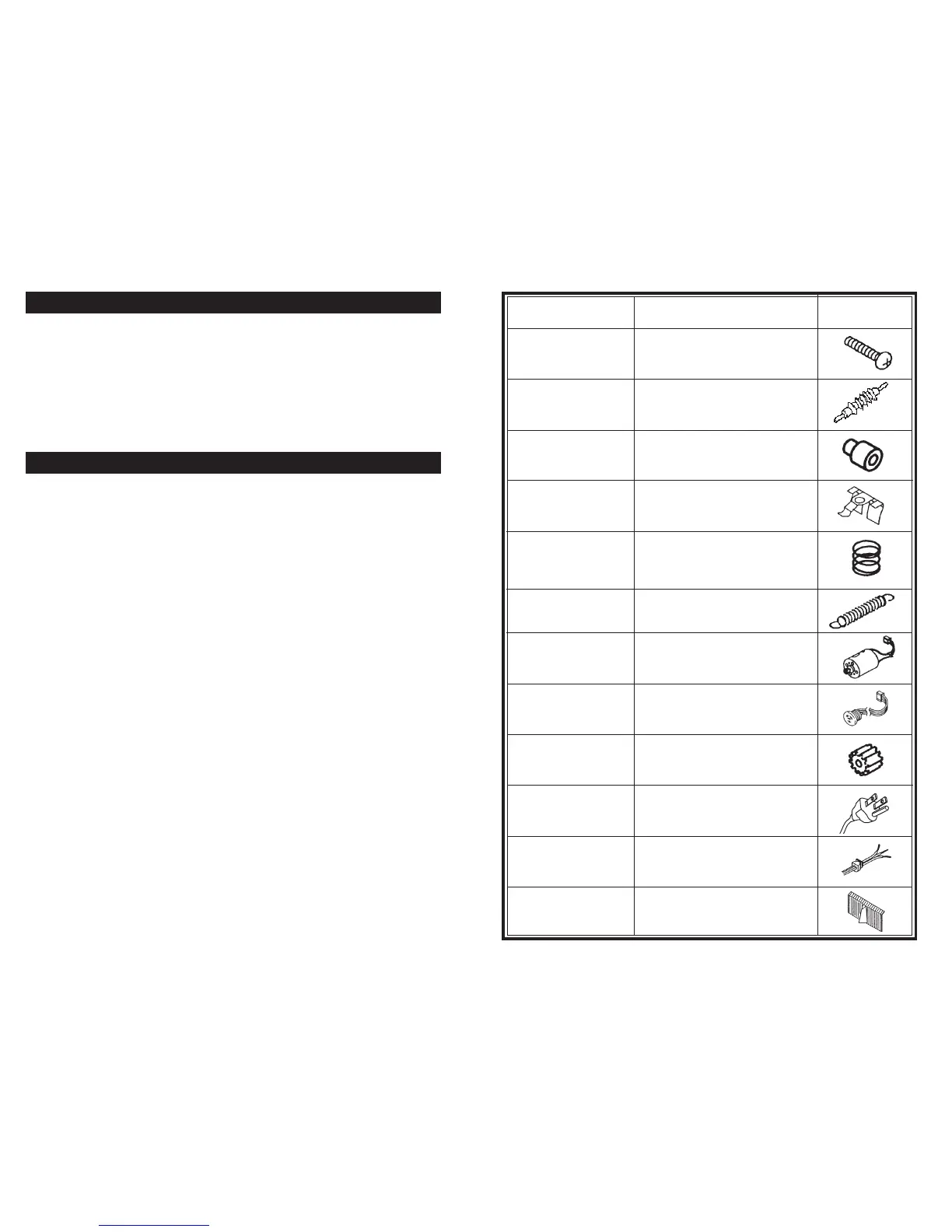

Part Number Description Drawing
ZCM1000P150
Tapping Screw
Cross Tip
ZCM1000P154 Pressure Roller
ZCM1000P155 Pressure Roller Collar
ZCM1000P161
Cutter Holder
Spring 2
ZCM1000P164 Roller Pressure Spring
ZCM1000P178 Spring
ZCM1000P187
Motor Unit 2 12VDC
Blue & Yellow
ZCM1000P200
Connector 4
Red, Brown, Blue & Yellow
ZCM1000P204 Pinion Gear 12
ZCM1000P206
Power Cord (V-6)
117V
ZCM1000P206-2
Power Cord (3 lead)
(220V ~ 240V)
ZCM1000P215 Cover for Non-contact
