TROUBLESHOOTING
When problems occur, carry out the following procedures. If the tape
dispenser does not operate normally after following the troubleshooting
procedures, contact your supplier.
1. If the motor does not drive:
• Check that the power cord is plugged in.
• Check that the power switch is turned on.
2. If the tape does not cut:
• Make sure the cutter unit is set properly and clean.
3. If the LED does not light:
• Check that the power cord is plugged in.
• Check that the power switch is turned on.
4. If the tape does not feed:
• Check if the tape is jammed at the roller or in the cutter unit.
• Check that the tape is set properly.
5. If the auto feed does not work:
• Check that the sensor plug is plugged in.
• Check that the sensor switch of cutter unit is on.
• Check that the sensor part of the cutter unit is not stained.
6. If the tape feeding does not stop:
• Check that the tape is centered. If not, set the tape at the center of the
feed roller so that the sensor will see the tape.

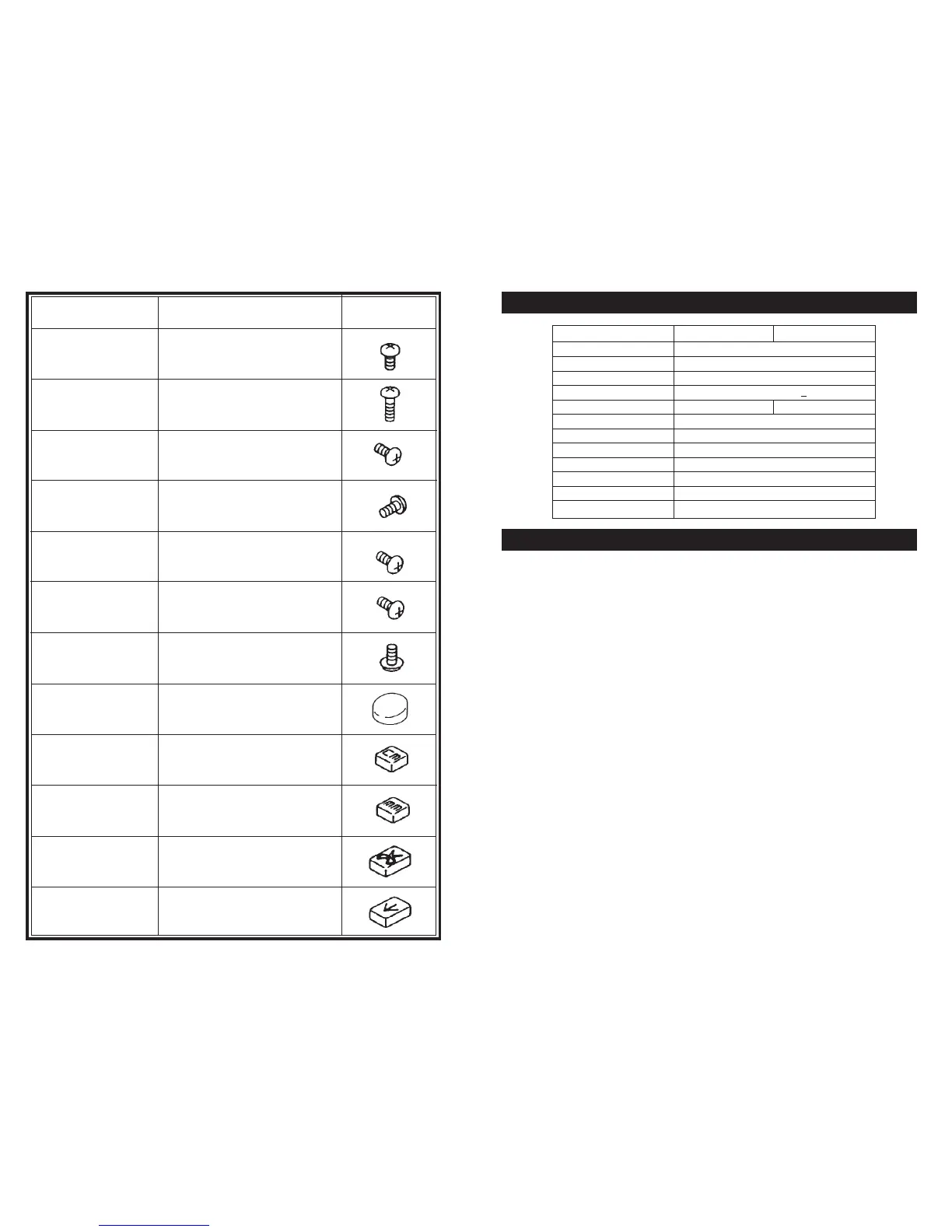

SPECIFICATIONS
Part Number Description Drawing
ZCM1000P228
Screw
Cross Tip
ZCM1000P229
Tapping Screw
Cross Tip
ZCM1000P230
Small Screw
Cross Tip
ZCM1000P231
Cutter Gear Cover
Screw/Cross Tip
ZCM1000P232
Cutter Spring Control
Screw/Cross Tip
ZCM1000P233
Body Cover Screw
Cross tip
ZCM1000P234
Tapping Screw
Cross Tip
ZCM1000P245 Auto Button
ZCM1000P246 Switch Button 1 (cm)
ZCM1000P247 Switch Button 1 (mm)
ZCM1000P248 Switch Button 2 (cut)
ZCM1000P249 Switch Button 2 (feed)
Model ZCM1000 ZCM2000
Display 3-Digit LED
Applicable Tape Width .28”-2” (7-50mm)
Core Diameter 3” (optional 1”, 1.25”, 1.5”)
Tape Length Set Limit .79”-39” (20-999mm)
+
.040”
Memory Settings 13
Drive DC Motor for Tape Feed and Tape Cut
Power Consumption 18W
Power (AC) 117V 50/60Hz or 220V 50/60Hz
Ambient Temperature 41°-104°F (5°-40°C)
Ambient Humidity Less than 80% RH
Dimensions 5.4 x 8.6 x 6” (14 x 22 x 15cm)
Weight 5.3 lb (2.4 kg)
