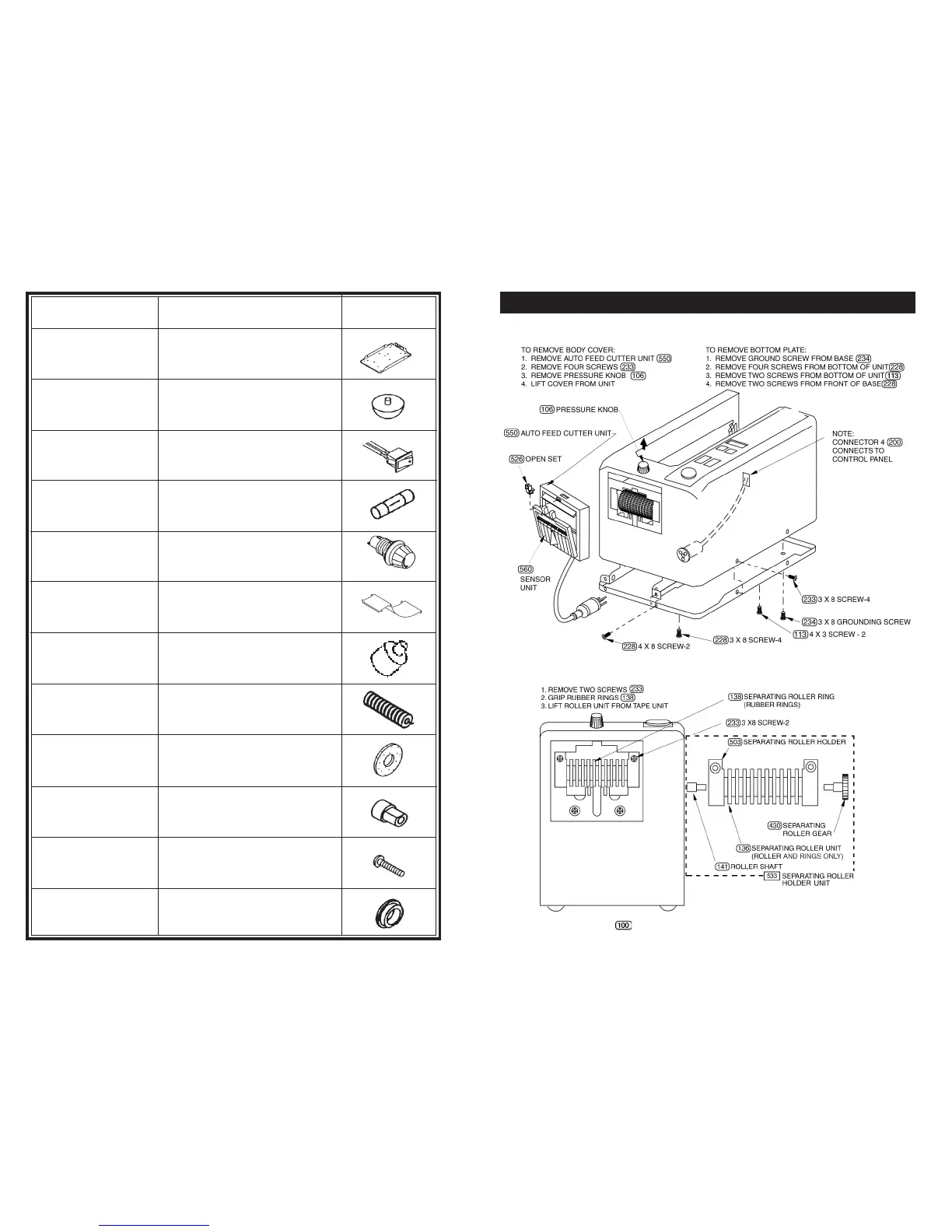

EXPLODED VIEWS / PARTS BREAKDOWN
CHANGE THE SEPARATING ROLLER
REMOVE BODY COVER AND BOTTOM PLATE
Numbers in balloons represent the last three digits in replacement part number.
When ordering, ask for ZCM1000P_ _ _.
Part Number Description Drawing
ZCM1000P115 Bottom Plate
ZCM1000P116 Rubber Feet
ZCM1000P118 Power Switch
ZCM1000P120
Fuse
1Amp
ZCM1000P121 Fuse Holder
ZCM1000P124 Plate
ZCM1000P134 Main Board Shaft
ZCM1000P136
Separating Roller
With Roller Rings
ZCM1000P138
Separating Roller Ring
Silicone Rubber
ZCM1000P141 Roller Shaft
ZCM1000P142
Screw
Cross Tip
ZCM1000P146 Bearings
