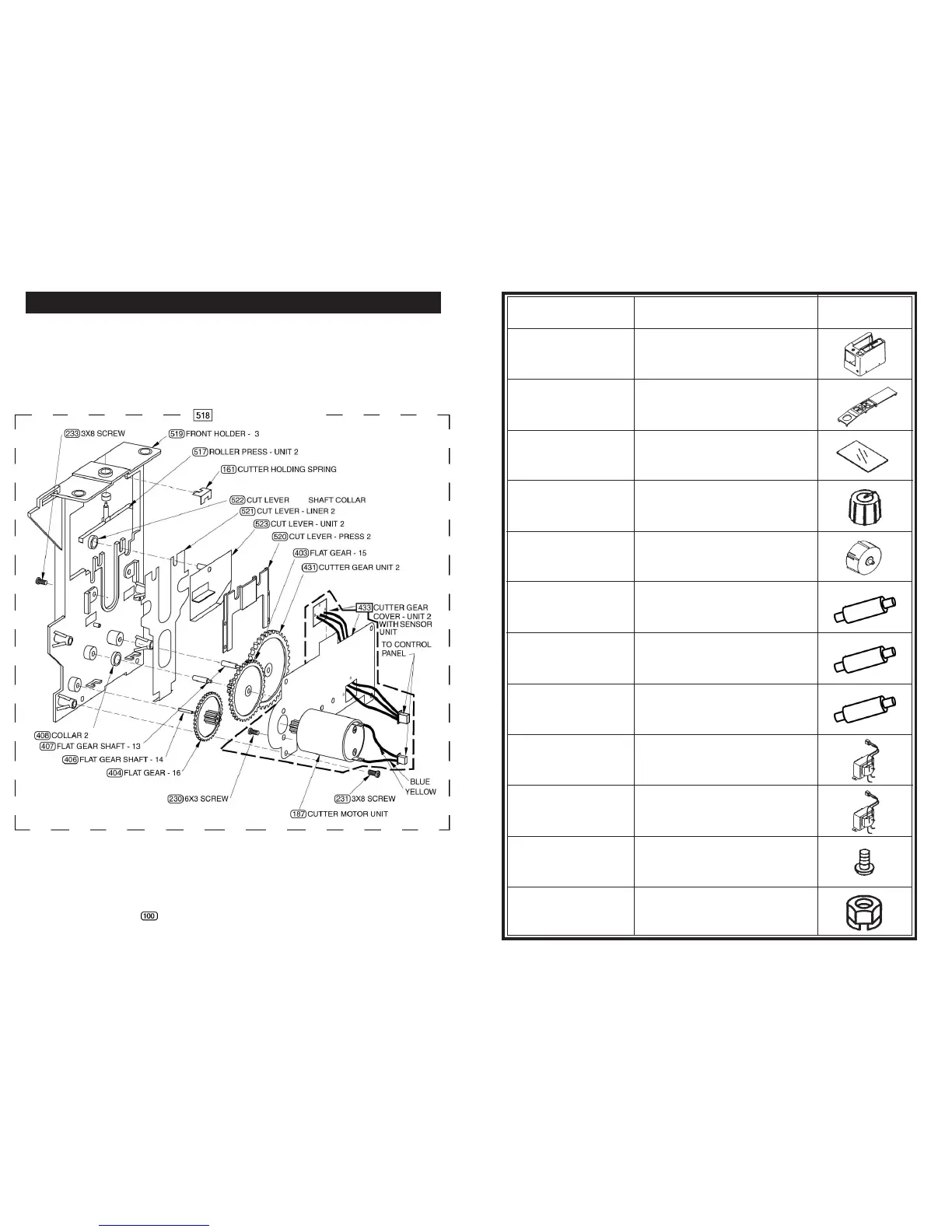

EXPLODED VIEWS / PARTS BREAKDOWN
FRONT HOLDER STRUCTURE
Numbers in balloons represent the last three digits in replacement part number.
When ordering, ask for ZCM1000P_ _ _.
Part Number Description Drawing
ZCM1000P101 Main Unit Cover
ZCM1000P102 Face Decoration Plate
ZCM1000P105 Clear Plate
ZCM1000P106 Pressure Knob
ZCM1000P107 3" Reel Unit
ZCM1000P108 1" Reel
ZCM1000P109 1-1/4" Reel
ZCM1000P110 1-1/2" Reel
ZCM1000P111 Transformer 110V
ZCM1000P112 Transformer 220V
ZCM1000P113
Small Screw
Cross Hole
ZCM1000P114
Hexagonal Nut
w/ Spring Washer
To Next Page
