StarTech.com IPUSB2HD2 User Manual

Instruction Manual
12
Alternatively, devices on the USB Hub ports can be set to connect automatically, based on the
USB port they are plugged into on the HDMI video adapter (instead of based on the specic
USB device itself). This will allow for any type of USB device to be automatically connected
to the host computer, so long as it is connected to the specied physical port on the HDMI

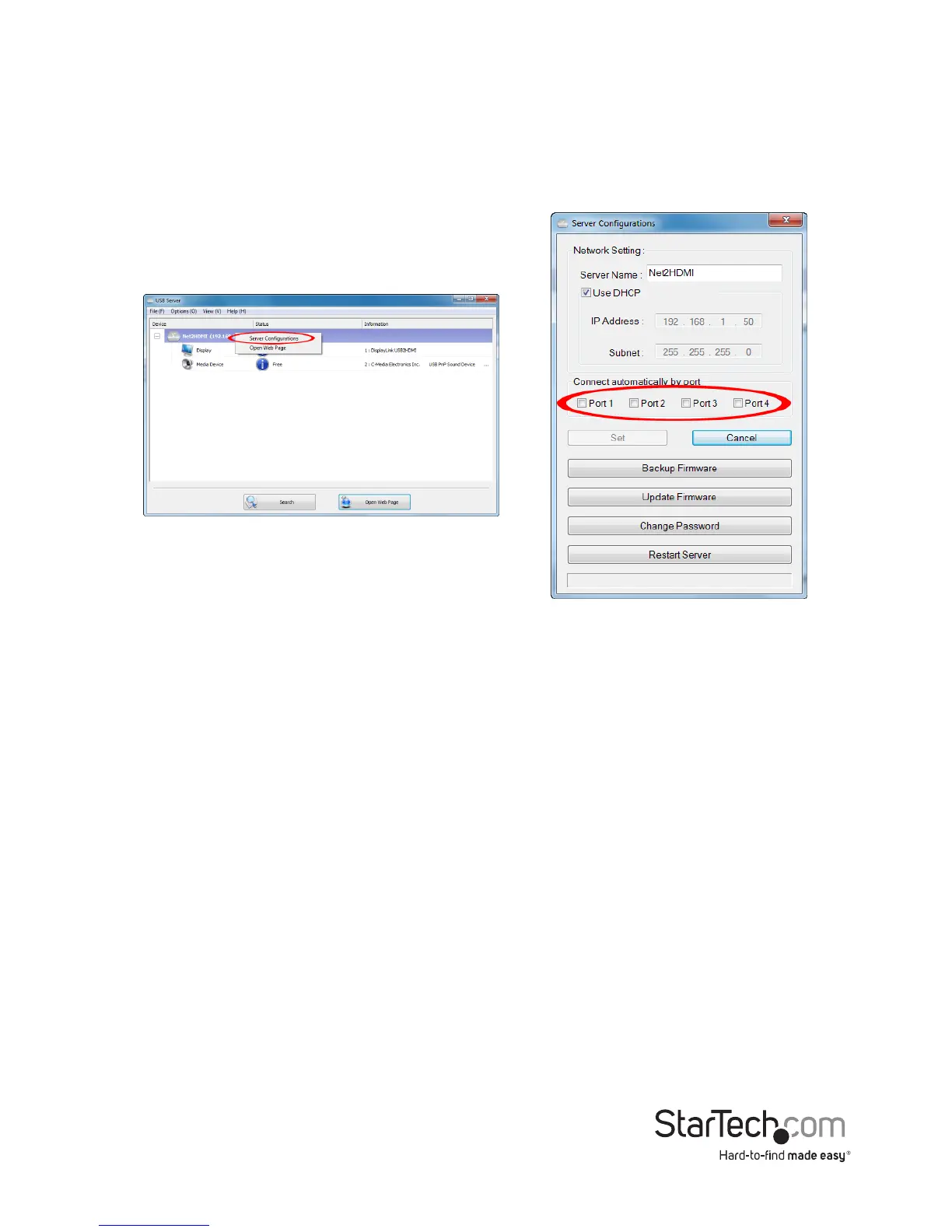

video adapter. This option can be accessed by right-clicking on the HDMI Video adapter itself,
and going into the Server Conguration. NOTE: The software will show Port 3 and Port 4,
however enabling these ports for automatic connection will have no result.
NOTE: With both methods of automatic connection, if the USB device is manually
disconnected by the user, it will not automatically reconnect until the USB Server application
is restarted.

StarTech.com IPUSB2HD2 Specifications

General

Type	AV transmitter
Audio system	-
Product color	Black
Maximum resolution	1920 x 1080 pixels
Supported video modes	1080p
Maximum transfer distance	100 m
Supported graphics resolutions	1920 x 1080 (HD 1080)
DC-in jack	Yes
RJ-45 input ports	1
Storage temperature (T-T)	0 - 85 °C
Operating temperature (T-T)	0 - 70 °C
Operating relative humidity (H-H)	10 - 80 %
Current	2 A
Operating voltage	5 V
Package depth	225 mm
Package width	150 mm
Package height	60 mm

Weight and Dimensions

Weight	460 g
Dimensions (WxDxH)	71 x 132 x 28 mm
