StarTech.com IPUSB2HD2 User Manual

Instruction Manual
11
USB Server

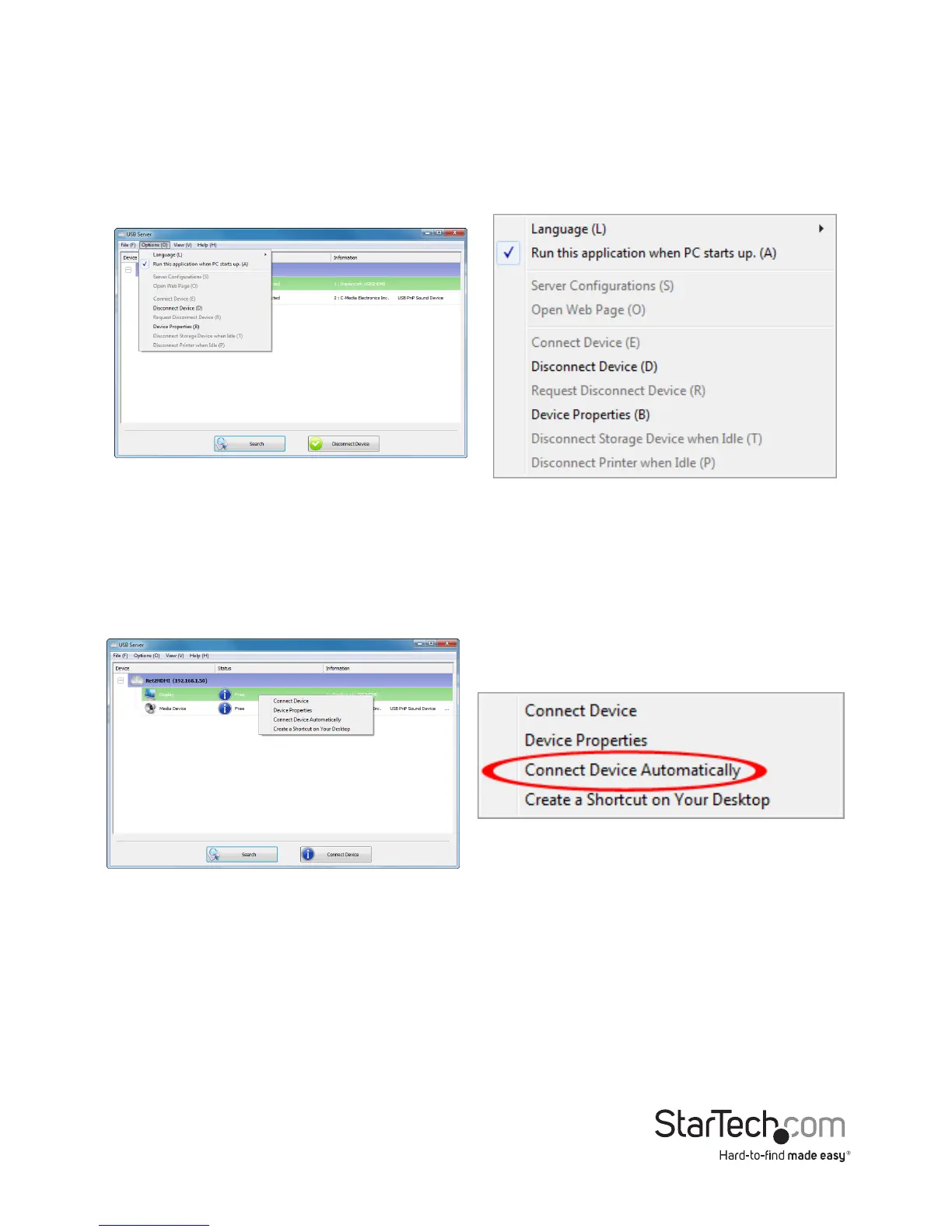

The USB Server software can be congured to automatically startup when Windows starts and
also connect certain devices automatically. In the “Options” menu of the USB Server window,
the option to start the software automatically on Windows bootup is available. This will
allow the software to automatically run, if the computer ever is restarted, instead of having to
manually double-click the desktop icon each time.
Automatic Device Connection
Certain devices can be set to automatically connect (if available) to the host computer, when
the software is running. This will allow the video and/or the audio to automatically connect,
whenever the USB Server software is launched, or if unavailable originally, to automatically
connect whenever the device does become available.
This can also be applied to USB devices connected to the USB Hub ports. Right-clicking on
the device and selecting the “Connect Device Automatically” option will enable this feature
for the specic USB device.

StarTech.com IPUSB2HD2 Specifications

General

Type	AV transmitter
Audio system	-
Product color	Black
Maximum resolution	1920 x 1080 pixels
Supported video modes	1080p
Maximum transfer distance	100 m
Supported graphics resolutions	1920 x 1080 (HD 1080)
DC-in jack	Yes
RJ-45 input ports	1
Storage temperature (T-T)	0 - 85 °C
Operating temperature (T-T)	0 - 70 °C
Operating relative humidity (H-H)	10 - 80 %
Current	2 A
Operating voltage	5 V
Package depth	225 mm
Package width	150 mm
Package height	60 mm

Weight and Dimensions

Weight	460 g
Dimensions (WxDxH)	71 x 132 x 28 mm
