Instruction Manual

6. The IR Matrix Field on the bottom left displays which IR output device is currently

available for remote control at each output port.

Note: The Refresh button will reload the page showing your current conguration.

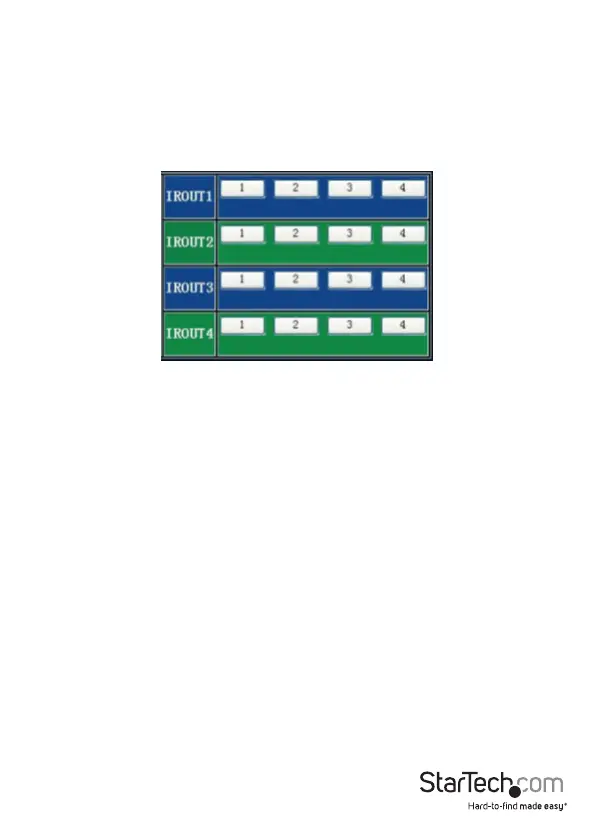

7. You can change the IR Input location for each IR output port using the IR output

eld on the bottom right side. Each IR Output port has a section with numbered

buttons representing each of the IR input locations. Click the number that

represents the output port for your desired change.
