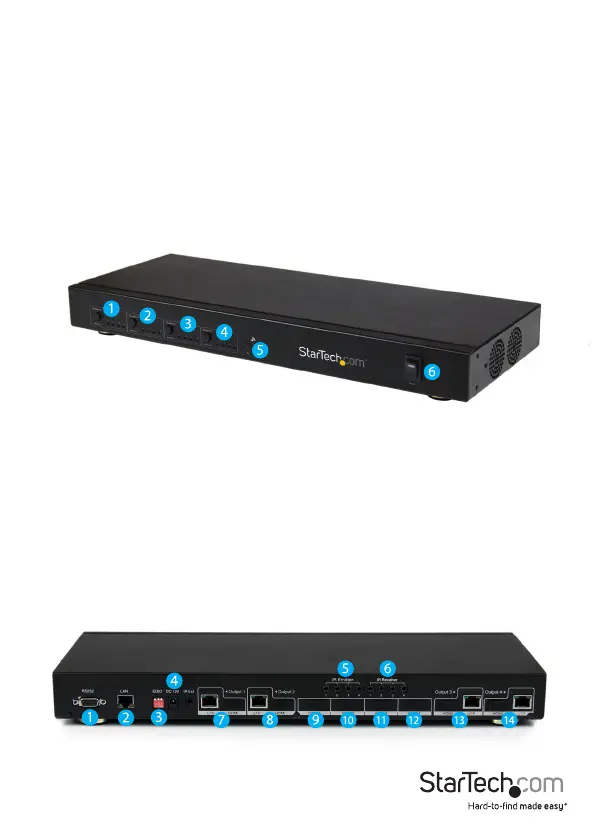

Product Diagram
ST424HDBT Matrix Transmitter
Front View
1. Output 1 select button w/ LED indicator
2. Output 2 select button w/ LED indicator
3. Output 3 select button w/ LED indicator
4. Output 4 select button w/ LED indicator
5. IR sensor
6. Power switch
Back View
1. Serial port
2. LAN port
3. EDID switch
4. Power Jack
5. IR extender ports (1 through 4)
6. IR receiver ports (1 through 4)
7. Cat5/local HDMI output ports 1
8. Cat5/local HDMI output ports 2
9. HDMI input port 1
10. HDMI input port 2
11. HDMI input port 3
12. HDMI input port 4
13. Cat5/local HDMI output ports 3
14. Cat5/local HDMI output ports 4
