Description of the equipment
This product is an equipment for manually welding metals by means of heat produced by an electric arc.
Technologically, the STAYER WELDING equipment is an electrical power source for welding by
transferring high frequency power managed by intelligent control logic.
Compared to traditional technology based on transformers operating at 50 Hz public grid frequency,
Inverter STAYER WELDING technology has a larger power density per unit of weight, increased power
saving and the possibility of an automatic, instantaneous and precise control of all welding parameters.
As a result, you will more easily produce a better weld with equipments having lower power
consumption and less weight compared to equivalent traditional equipments based on heavy
transformers.
All series MMA STAYER WELDING equipments are apt for coated electrode welding and tungsten
electrode torch welding with inert gas protection.
4S45.10KIT / S45.13KIT / S45.16KIT / S45.18 / S45.20KIT
+
-
2
Switch at
back
1
3
4
5
4S60.15 / S60.17L / S60.20
+
-
Switch at
back
1
4
5
7
2
3

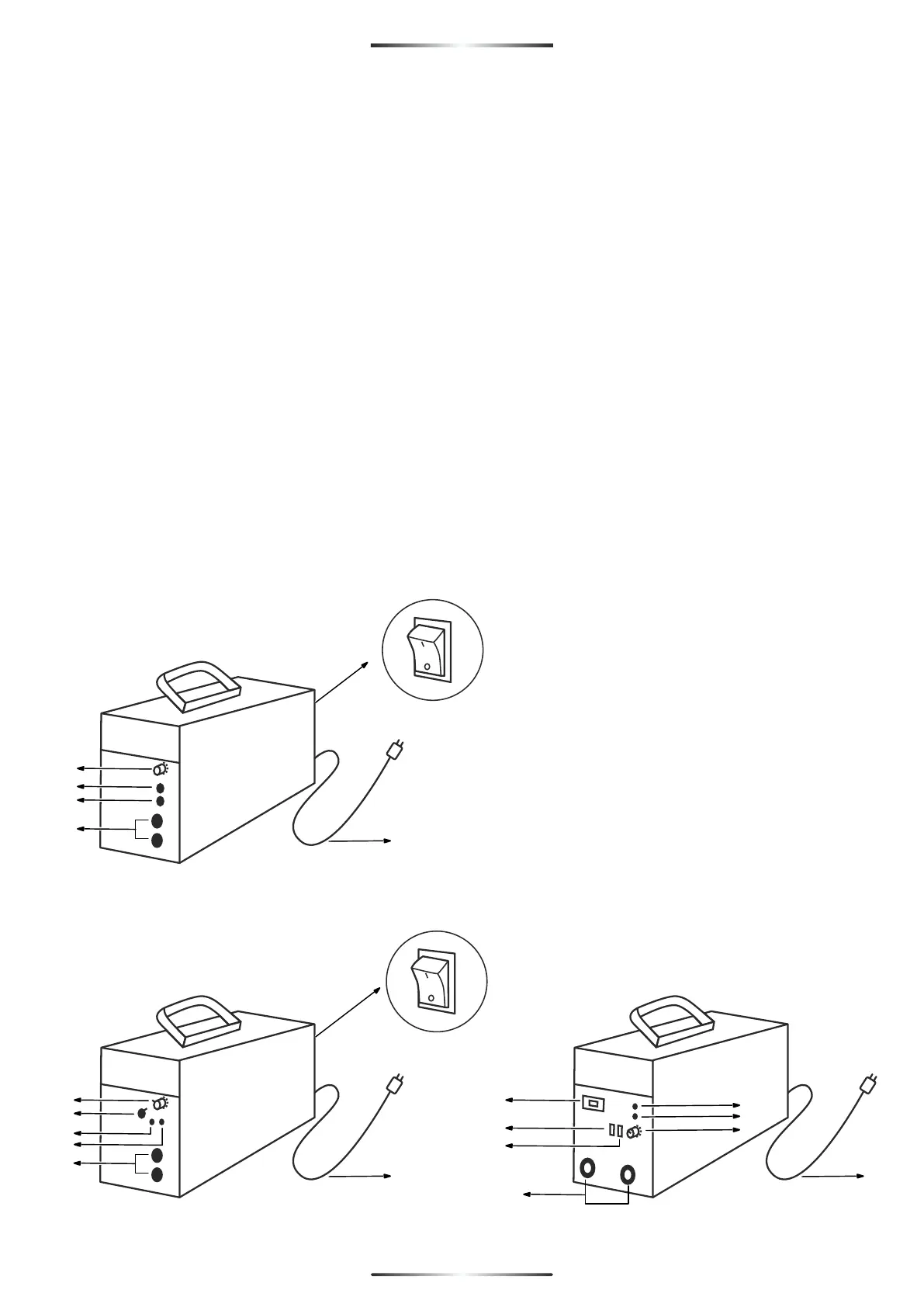

ILLUSTRATED DESCRIPTION OF FUNCTIONS
1. On/off switch
2. Light emitting indicator
3. Light emitting alarm indicator
4. Welding intensity adjustment control
5. Connection terminals of the welding cables
6. Power supply cable and plug of the equipment
7. Electrode mode switch /TIG (models S60, 17L and
T100.20H only)
8. Preflow and postflow switch for the inert gas outlet
(model T100.20H only
4S100.18 / S100.20 / T100.20H
S100.25 / S100.25T
+
-
1
7
8
2
3
4
6
6
6
5
