Steamfast SF-520 - Connecting Pole Top; Adjusting Telescopic Pole

ENGLISH
|
7

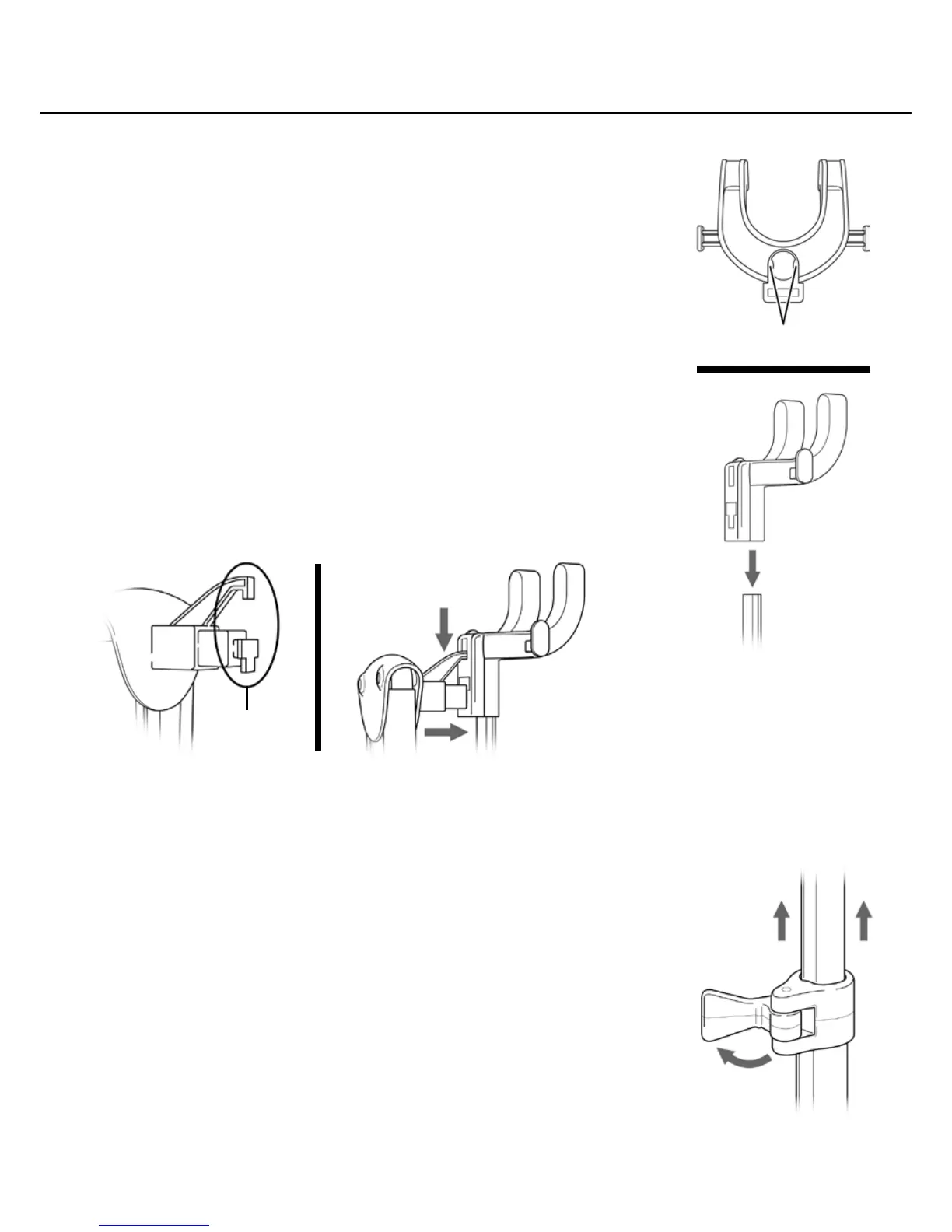

CONNECTING POLE TOP
1. Look at underside of Pole Top to locate two guide ridges (FIGURE 3-A).
2. Align Pole Top guide ridges with guide grooves on SECTION 1 of
Telescopic Pole.
NOTE: It is recommended to orient Pole Top so Nozzle Cradle
faces backwards towards rear of the unit.
3. Slide Pole Top onto SECTION 1 of Telescopic Pole (FIGURE 3-B).
Press down rmly until Pole Top ts securely in place.
CONNECTING HANGER
1. Locate brackets on back of Hanger (FIGURE 4-A).
2. Align Hanger with Hanger Anchor Holes on front of Pole Top. Insert
brackets into holes, then slide Hanger down to lock it in place
(FIGURE 4-B).
ADJUSTING TELESCOPIC POLE
To adjust the length of SECTIONS 1, 2 & 3 of the Telescopic Pole:
1. Release extension lock directly below SECTION 1 by swinging
hinge outward as shown. SECTION 1 can then be extended /
retracted (FIGURE 5).
2. Once SECTION 1 is at desired length, close hinge to once again
secure extension lock.
3. Repeat STEPS 1 & 2 for SECTIONS 2 & 3 of the Telescopic Pole,
using the extension lock directly below each of those sections.
NOTE: It is recommended to extend Telescopic Pole to its full
height during steamer operation; this will ensure optimal steam
ow through the Hose.
FIGURE 3
FIGURE 5
3-A
3-B
FIGURE 4
4-A
4-B
