6.2.8 Deep discharge protection advance warning

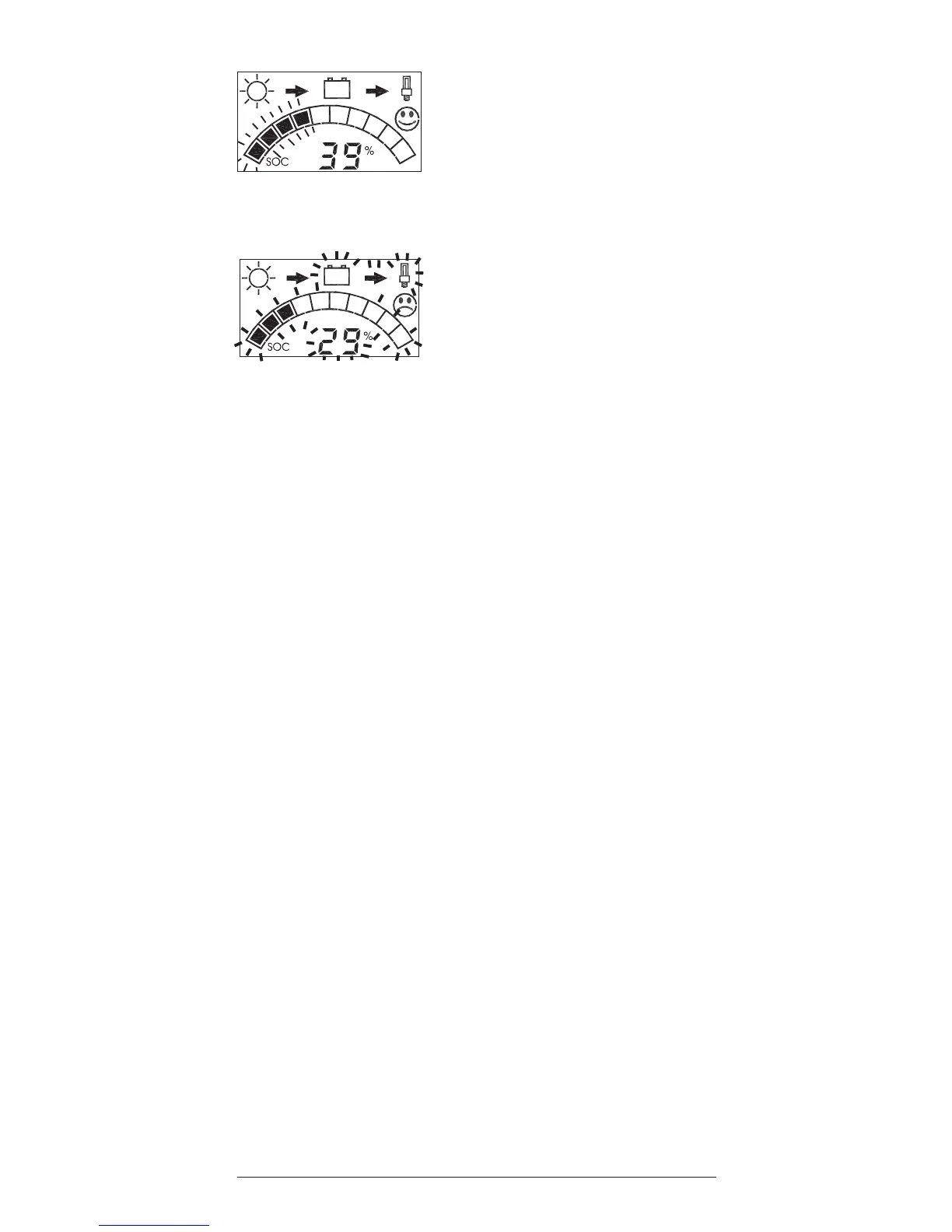

The following symbols flash in the various
operating modes to provide advance warn-
ing of deep discharge.
• SOC bar (SOC with bar display)
• Voltage value (Voltage control)
• Voltage value and voltage bar display
(Voltage control with bar display)
The face symbol still looks happy.
6.2.9 Load disconnection
The following symbols flash when the deep
discharge protection is active:
• Bar display (not in Voltage control mode)
• Battery symbol
• Right arrow
• Load symbol
• Alphanumeric value
The face symbol remains sad until the
switch-on threshold is reached.
