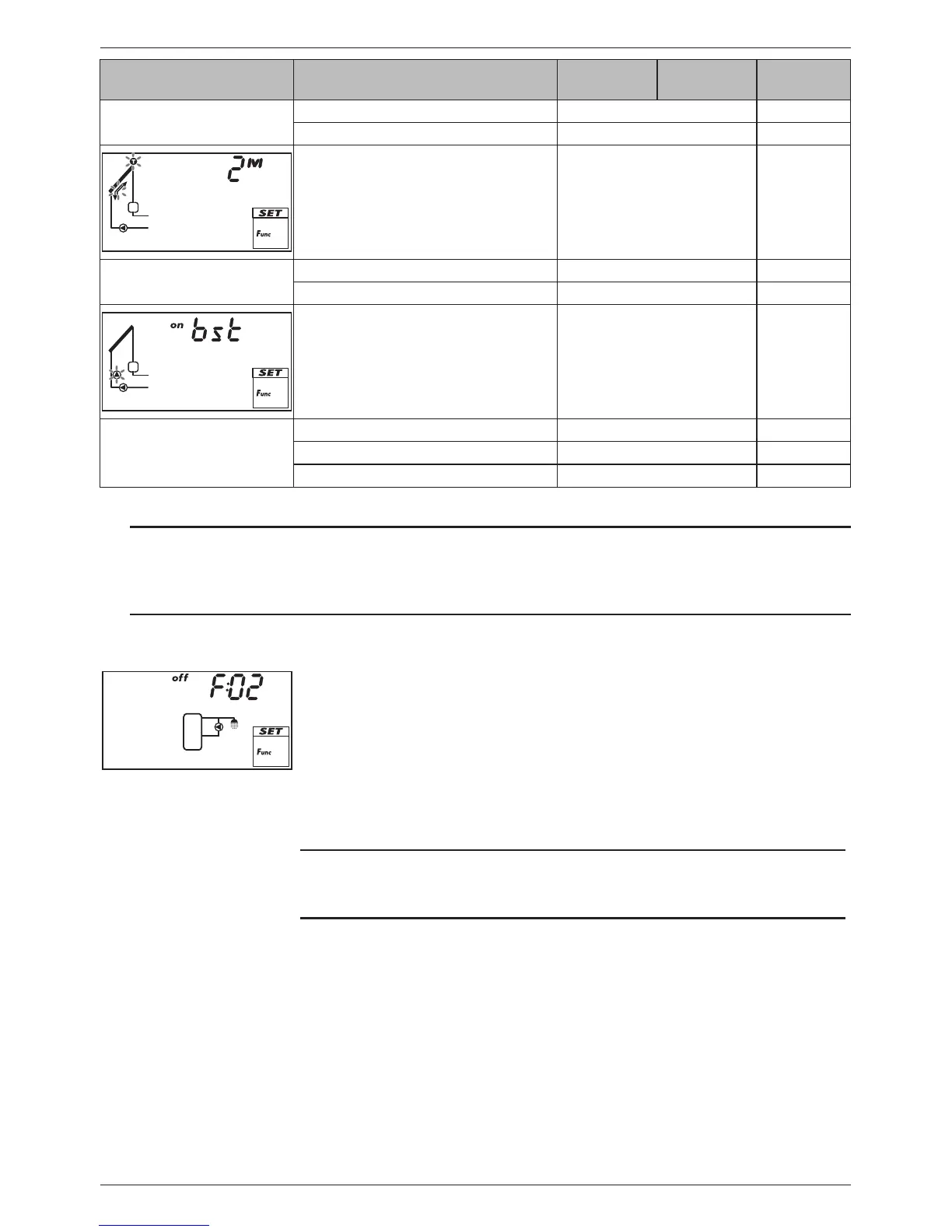

Display Characteristic min. max.
Factory
setting
Activation on, oFF
oFF
Filling time 1 ... 10 minutes 3 minutes
Stabilising time 1 ... 15 minutes 2 minutes
Draining time: 1 ... 30 minutes 5 minutes
Short startup time 0 ... 60 seconds 0 seconds
Booster pump on, oFF
oFF
Output (booster pump) free output R1/R2/R
S
–
Pump type (R1, R2 only) AC, HE
1)
AC
Pump characteristic (HE only) bA, bb, C (see p. 16) –
1)
Notice
Standard pump: Set AC!
High-efficiency pump: Set HE!
External relay: Set AC pump type!
10.3.2 Circulation
Switches a circulation pump on and off on a temperature and/or time
controlled basis.
Temperature control: If the temperature in the circulation return falls
below the T
on
value, then the circulation pump is switched on until the
T
off
temperature is reached.
Time control: The circulation pump is switched on when the current
time lies within one of 3 configurable time windows.
Temperature and time control: The circulation pump is switched on when
the switch-on conditions for the temperature and time control are satisfied.
Note
Install the circulation sensor at least 1.5 m (60 inch) away from the storage
tank to avoid false measurements due to heat conduction of the pipes.
