Steelcase Empath - Standard or Trendelenburg Foot Tray Installation; Attach Rear Brackets; Install Front Bracket

Page 2 of 4
939502131 Rev C
Standard or Trendelenburg
Foot Tray Installation

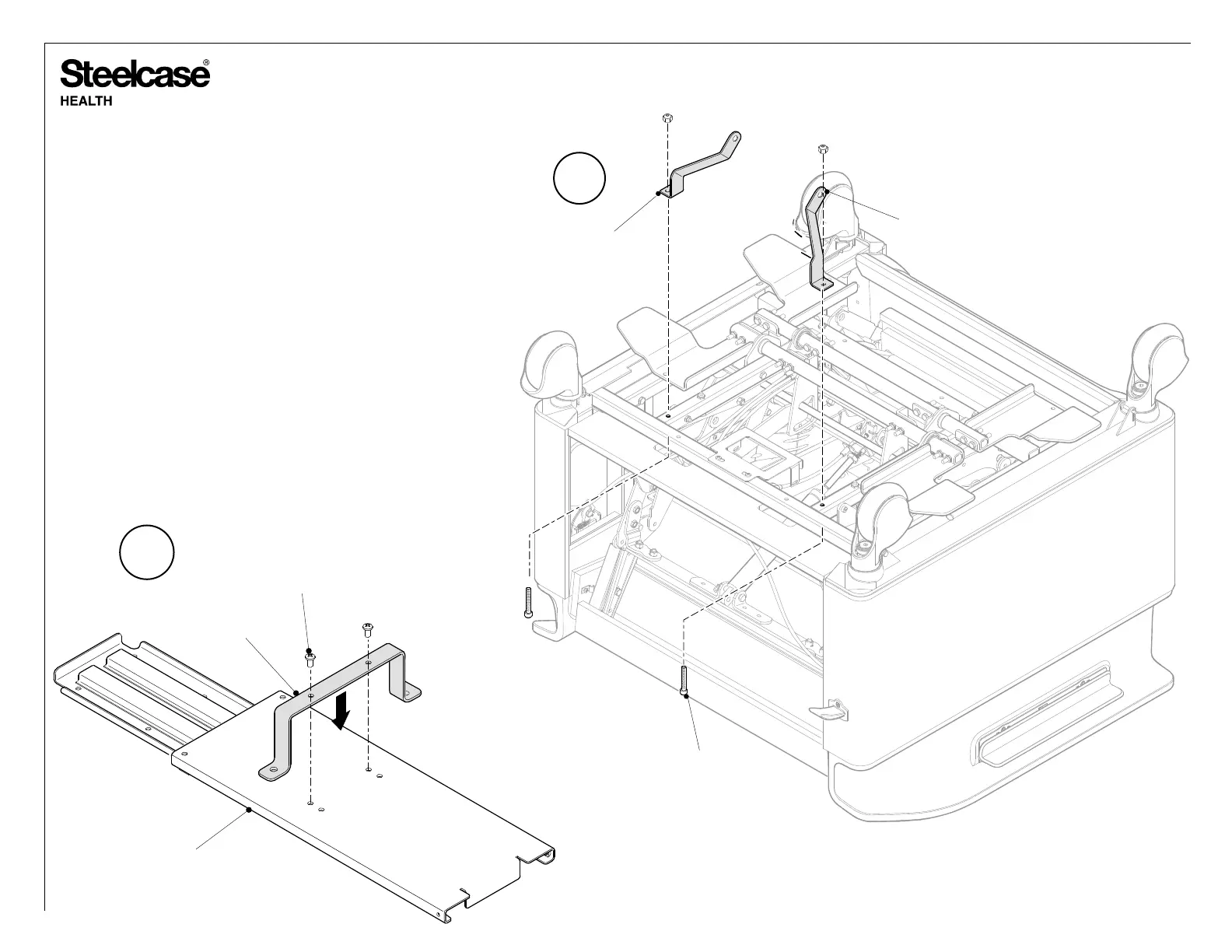

1.
Attach rear brackets to chassis.
2. Install front bracket to main slide
frame with 1/4-20 x 1/2" button head
cap screws.
FRONT
BRACKET
1/4-20 x 1/2" BUTTON
HEAD CAP SCREW
1
2
1/4-20 x 1/2" BUTTON
HEAD CAP SCREW
MAIN SLIDE
REAR MOUNT
BRACKET
REAR MOUNT
BRACKET
