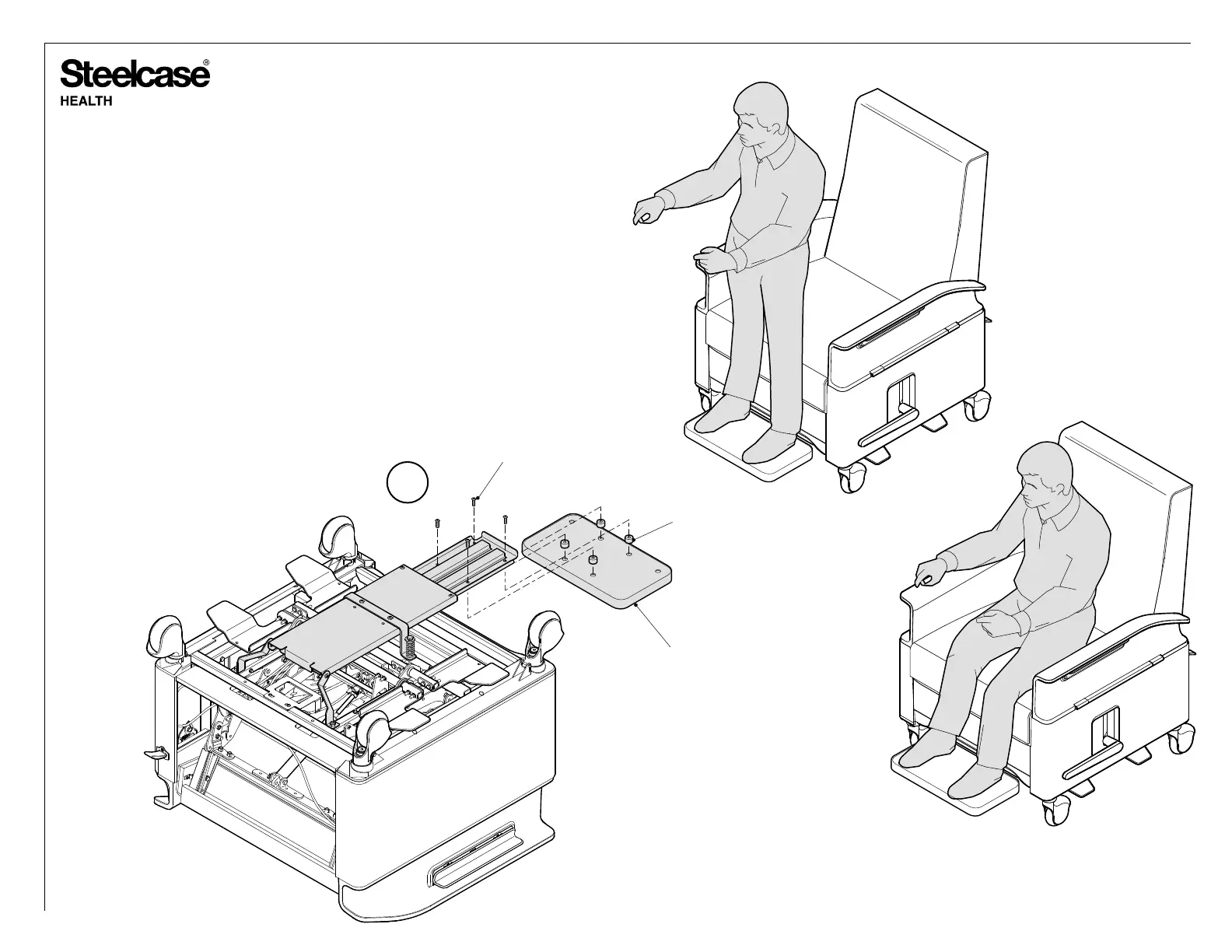

7. Position footrest, as shown, onto the slide frame assembly
and install with four (4) 1/4-20 x 3/4" button head cap screws
and four (4) spacers.
TEST FOOTREST
Check the tightness of the foot tray to ensure that the slide
frame assembly is not loose when a person is in the standing
or seated position. Tighten hex bolts, installed in step 5, until
foot tray is no longer loose.
NOTE: Overtightening of hex bolts will also result in the foot tray
not being able to actuate when stepped on. When this happens,
please loosen the hex bolts until the foot tray is able to actuate
and rest on the floor when stepped on.
7
1/4-20 x 3/4" BUTTON
HEAD CAP SCREW
FOOTREST
SPACER
