EF315_r5.1(v12.22) – 03/2023 page 9
Version pH/Chlorine

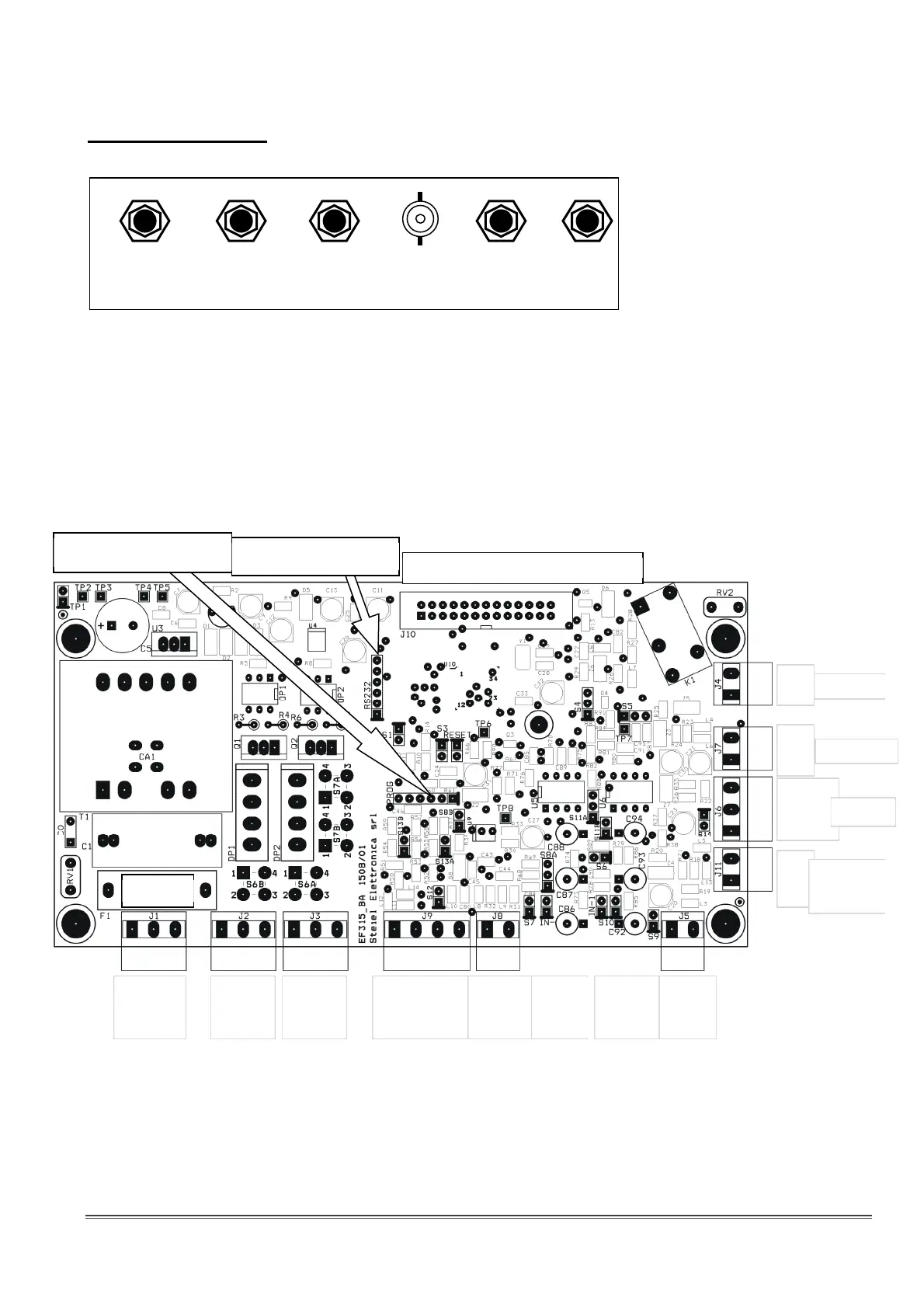

Front view:
• POWER: power cable (prewired)
• OUT1: driving output for pump 1 (pH control)
• OUT2: driving output for pump 2 (chlorine control)
• pH: BNC connector for pH electrode
• CL: input for chlorine cell
• PT100: input for Pt100 sensor
To access the terminal blocks, remove the compartment cover. The electronic board is equipped with
removable terminal blocks, as indicated here below.
- Terminals 1,2,3 (Earth, Neutral, Phase): power supply (standard 230V~); exchanging neutral and
phase does not affect the device operation
- Terminals 4,5,6 (Earth, Phase, Neutral): output for pump 1 (pH) – electromagnetic or peristaltic
Warning! This output can also be PFM type (pulse simulation with static relay)
- Terminals 7,8,9 (Earth, Phase, Neutral): output for pump 2 (chlorine) – electromagnetic or peristaltic
Warning! This output can also be PFM type (pulse simulation with static relay)
1 2 3
T
N F
Power
4 5 6
T F N
P1
7 8 9
T F N
P2
10 11 12 13
+V R IN -V
Chlorine
14 15
PT100
16 17
El.pH
18 19
El.RX
20 21
Lev1
23
22
Lev2
26 Bl
25 Bk
24
Br
Flow
28
27
30
29
Alarm
Configuration strip
Strip for RS232 option
Flat for connection of front board
Fusibile
POWER OUT1 OUT2 pH CL PT100
(pH) (C
hlorine
)
Ext.Cons.
